XC4VLX200-11FF1513C

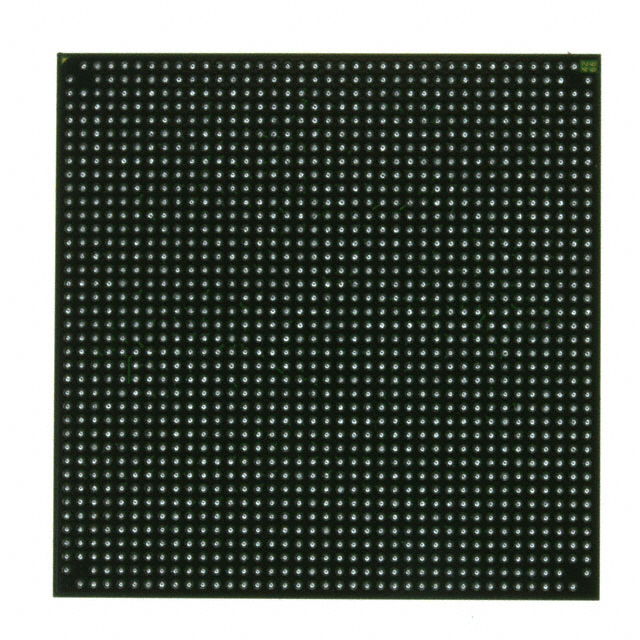

The XC4VLX200-11FF1513C is a Virtex-4 LX field programmable gate array (FPGA) IC from AMD. It provides a high-density programmable logic fabric with a large count of configurable logic blocks and a substantial on-chip memory complement for implementing complex digital functions.

Packaged in a 1513-FCBGA (1513-BBGA) surface-mount package and specified for commercial temperature operation, the device delivers a combination of logic capacity, I/O density and on-chip RAM suited to designs that require large-scale programmable logic in a single-chip solution.

Key Features

• Core Logic  22,272 configurable logic blocks (CLBs) delivering 200,448 logic elements for implementing complex digital designs.
• Embedded Memory  Approximately 6.19 Mbits of on-chip RAM for local data buffering, FIFOs and state storage.
• I/O Density  960 user I/O pins to support wide parallel interfaces and dense external connectivity.
• Power  Core supply voltage range of 1.14 V to 1.26 V for the FPGA core power rail.
• Package & Mounting  1513-FCBGA (1513-BBGA) package, listed as 40×40, designed for surface-mount PCB assembly.
• Temperature & Grade  Commercial grade device with an operating temperature range of 0 °C to 85 °C.
• Compliance  RoHS compliant.

Typical Applications

• High-density digital systems  Use the large pool of logic elements and 960 I/O to consolidate multiple digital functions into a single FPGA package.
• Memory-intensive logic  Embedded RAM (approximately 6.19 Mbits) enables local buffering, data manipulation and protocol FIFOs.
• Prototyping and development  High logic capacity and abundant I/O facilitate hardware prototyping and verification of complex designs.
• Communication and interface aggregation  Dense I/O count supports aggregation and bridging of multiple parallel interfaces.

Unique Advantages

• Large programmable fabric: 200,448 logic elements and 22,272 CLBs give designers capacity to implement complex, multi-function logic on a single device.
• Substantial on-chip RAM: Approximately 6.19 Mbits of embedded memory reduces dependence on external memory for intermediate storage and buffering.
• High I/O count: 960 user I/Os enable wide parallel interfaces and flexible pinout options for dense system integration.
• Compact surface-mount package: 1513-FCBGA (1513-BBGA) package allows integration into compact PCB layouts while maintaining thermal and electrical connectivity.
• Commercial temperature rating: Standard 0 °C to 85 °C operating range for applications and systems specified for commercial environments.
• Regulatory compliance: RoHS compliance supports designs targeting lead-free assembly processes.

Why Choose XC4VLX200-11FF1513C?

The XC4VLX200-11FF1513C positions itself as a high-capacity Virtex-4 LX FPGA from AMD, delivering a balance of large logic resources, significant embedded RAM and very high I/O density in a single surface-mount FCBGA package. It is well suited to designs that require consolidation of multiple functions, substantial on-chip buffering and broad interface connectivity within commercial temperature environments.

As an AMD-manufactured Virtex-4 device with available manufacturer documentation, the XC4VLX200-11FF1513C provides a documented, high-density programmable building block for engineers and procurement teams seeking a scalable FPGA option backed by vendor datasheet resources.

Request a quote or submit an inquiry for pricing and availability of the XC4VLX200-11FF1513C to receive lead-time and ordering details.
