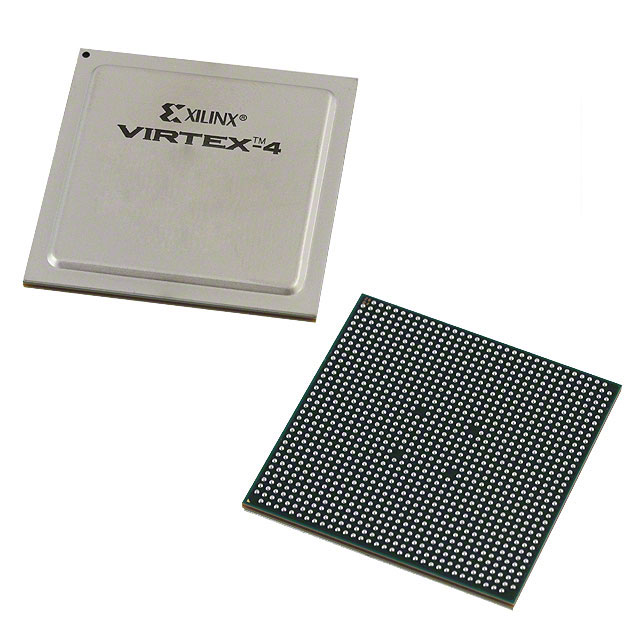

XC4VLX160-12FFG1148C

The XC4VLX160-12FFG1148C is a Virtex®-4 LX Field Programmable Gate Array (FPGA) IC designed for commercial-grade applications that require high logic density, substantial embedded memory, and a large I/O complement. Its architecture provides a programmable fabric suitable for complex digital designs where integration of logic, memory, and high pin counts is essential.

With a supply voltage range of 1.14 V to 1.26 V and an operating temperature range of 0 °C to 85 °C, this device supports standard commercial electronics environments and surface-mount PCB assembly in an FCBGA package.

Key Features

• Logic Capacity
  Provides 152,064 logic elements (cells), delivering substantial combinational and sequential resource for large, complex designs.
• Logic Block Structure
  Includes 16,896 CLB-equivalent resources to organize and map logic functions efficiently across the device fabric.
• Embedded Memory
  Approximately 5.3 Mbits of on-chip RAM to support buffering, FIFOs, and state storage without external memory.
• High I/O Count
  768 I/O pins to accommodate dense peripheral, bus, and interface connectivity on modern systems.
• Power
  Operates from a core voltage supply between 1.14 V and 1.26 V, supporting low-voltage system designs.
• Package & Mounting
  1148-BBGA FCBGA package (supplier device package: 1148-FCPBGA, 35×35) in a surface-mount form factor for compact board-level integration.
• Temperature & Grade
  Commercial-grade device rated for 0 °C to 85 °C operation, suitable for standard commercial electronics.
• Environmental Compliance
  RoHS compliant, meeting common environmental requirements for electronic assemblies.

Typical Applications

• High-density digital systems
  Implements large-scale combinational and sequential logic functions where on-chip memory and extensive logic resources are required.
• Prototyping and development platforms
  Provides a programmable platform for validating complex hardware designs that need substantial logic and I/O resources.
• Communication and data interfaces
  Supports designs that require many I/O signals and internal buffering for protocol handling and front-end data aggregation.
• Embedded control in commercial equipment
  Integrates control logic and local memory on a single device for compact, commercially graded systems.

Unique Advantages

• High logic density: 152,064 logic elements enable consolidation of complex functions into a single FPGA, reducing board-level component count.
• Substantial on-chip memory: Approximately 5.3 Mbits of embedded RAM reduce dependence on external memory for buffering and state retention.
• Extensive connectivity: 768 I/O pins provide flexibility to interface with multiple peripherals and buses without extensive external multiplexing.
• Compact FCBGA package: 1148-BBGA (supplier: 1148-FCPBGA, 35×35) offers a dense footprint for space-constrained PCB layouts.
• Commercial operating range: Rated 0 °C to 85 °C and RoHS compliant to align with standard commercial production and regulatory expectations.
• Low-voltage core operation: 1.14 V to 1.26 V supply range supports integration into modern low-voltage power architectures.

Why Choose XC4VLX160-12FFG1148C?

The XC4VLX160-12FFG1148C is positioned for designers seeking a commercial-grade FPGA with high logic capacity, plentiful embedded RAM, and a large I/O count in a compact FCBGA package. It is well suited to consolidate complex logic, buffering, and interfacing tasks into a single device to simplify system design.

For teams building commercial electronic systems that value scalability and board-level integration, this Virtex®-4 LX FPGA offers a combination of resources and compliance that supports robust, space-efficient implementations while meeting standard environmental requirements.
