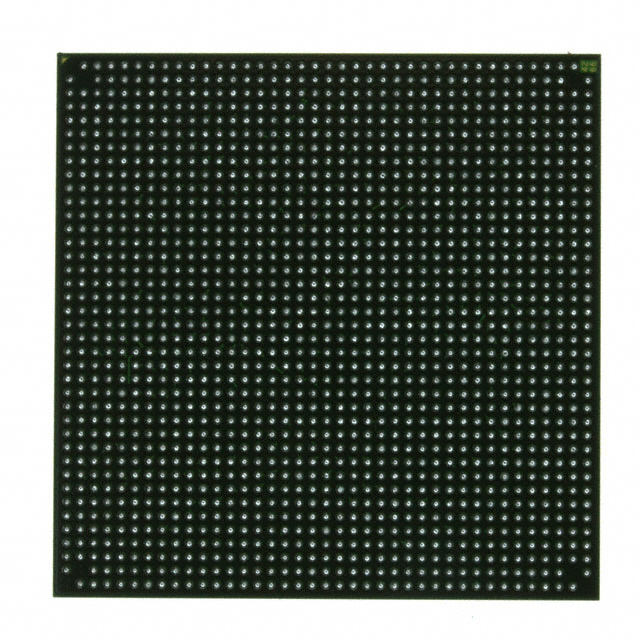

XC4VLX200-11FFG1513C

The XC4VLX200-11FFG1513C is a Virtex-4 LX field programmable gate array from AMD, offered in a 1513-FCBGA (40×40) surface-mount package. It combines high logic capacity with substantial on-chip memory and a large I/O count, making it appropriate for designs that require dense programmable logic, embedded memory, and extensive interfacing within a commercial temperature range.

Key Features

• Logic Capacity — Provides 200,448 logic elements to support complex, high-density digital designs and custom logic implementations.
• Embedded Memory — Approximately 6.19 Mbits of on-chip RAM to support buffering, FIFOs, and local data storage without external memory.
• I/O Resources — 960 programmable I/O pins to accommodate wide parallel interfaces, multiple peripherals, and high-pin-count connectivity.
• Package & Mounting — 1513-BBGA / 1513-FCBGA (40×40) ball-grid-array package in a surface-mount form factor for compact board integration.
• Power — Core supply operating range from 1.14 V to 1.26 V, enabling controlled power design around the FPGA core.
• Grade & Temperature — Commercial-grade device rated for operation from 0 °C to 85 °C for standard embedded and commercial applications.
• Compliance — RoHS compliant to support regulatory and environmental requirements.

Typical Applications

• High-density digital processing — Implements complex combinational and sequential logic where large logic element counts and on-chip RAM are required.
• Custom I/O subsystems — Supports designs needing many parallel or multiplexed interfaces with its 960 I/O pins.
• Embedded acceleration — Provides on-chip memory and logic resources for hardware acceleration and data buffering within embedded systems.
• Prototyping and system integration — Suited for board-level integration and evaluation in commercial-temperature designs due to its surface-mount FCBGA package.

Unique Advantages

• High logic density: 200,448 logic elements enable implementation of large, complex designs without immediate need for multiple devices.
• Substantial embedded memory: Approximately 6.19 Mbits of on-chip RAM reduces dependency on external memory for many buffering and storage needs.
• Extensive I/O: 960 I/O pins provide flexibility to connect multiple peripherals, buses, and parallel interfaces directly to the FPGA.
• Compact FCBGA package: 1513-FCBGA (40×40) ball-grid array offers a high-density, surface-mount solution for space-constrained PCBs.
• Defined core voltage range: Tight supply range (1.14 V to 1.26 V) supports predictable power planning for the FPGA core.
• RoHS compliant: Conforms to environmental requirements for lead-free manufacturing processes.

Why Choose XC4VLX200-11FFG1513C?

The XC4VLX200-11FFG1513C positions itself as a high-capacity Virtex-4 LX FPGA that brings together significant logic resources, embedded memory, and a large I/O footprint in a compact 1513-FCBGA surface-mount package. Its commercial temperature rating and defined core voltage range make it suitable for a wide range of standard embedded and system-level designs.

This device is a practical choice for engineers and designers who need to consolidate complex logic, local memory, and extensive interfacing into a single FPGA package while adhering to RoHS requirements and common commercial operating conditions.

Request a quote or submit a pricing inquiry for the XC4VLX200-11FFG1513C to receive availability and ordering information.
