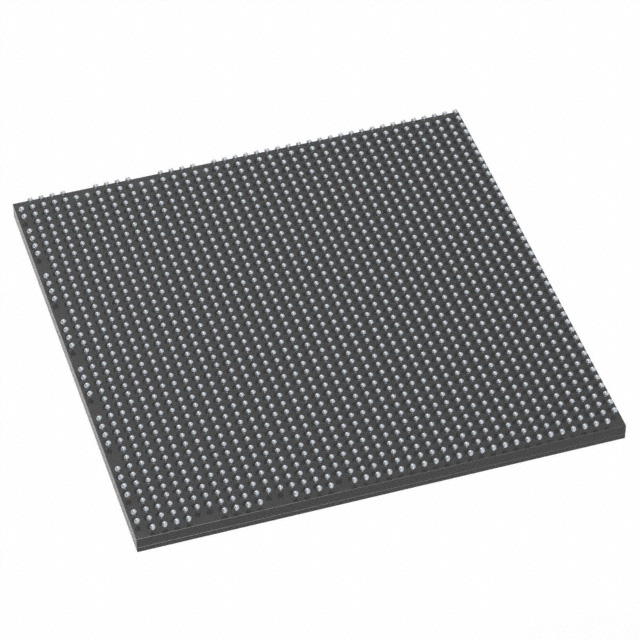

XC5VFX100T-2FF1738C

The XC5VFX100T-2FF1738C is a Virtex®-5 FXT field programmable gate array from AMD designed for commercial-grade, high-density logic designs. It combines a large logic fabric with significant on-chip RAM and extensive I/O to address complex embedded processing and logic-intensive applications.

This surface-mount FCBGA device provides a wide supply voltage window and standard commercial operating temperature range, making it appropriate for a range of commercial electronic systems that require substantial programmable logic and memory resources.

Key Features

• Logic Capacity  102,400 logic elements and 8,000 logic blocks provide substantial programmable resources for large FPGA designs.
• On‑Chip Memory  Approximately 8.4 Mbits of embedded memory (total RAM bits: 8,404,992) for buffering, lookup tables, and data storage inside the FPGA fabric.
• I/O Resources  680 I/O pins to support wide bus interfaces, multiple peripherals, and high-pin-count connectivity in dense systems.
• Power Supply Range  Core supply specified from 0.95 V to 1.05 V to match platform power requirements.
• Package and Mounting  1738-ball FCBGA package (1738-FCBGA, 42.5 × 42.5 mm) in a surface-mount form factor for compact board integration.
• Operating Conditions  Commercial temperature grade with an operating range of 0 °C to 85 °C.
• Environmental Compliance  RoHS compliant to meet common environmental and manufacturing requirements.

Typical Applications

• High‑density programmable logic systems  Use the large logic element count and logic block density for complex custom logic implementations and system consolidation.
• Embedded processing and acceleration  Leverage the significant on-chip RAM and logic capacity for data buffering, custom processors, and accelerator functions in commercial equipment.
• Communications and networking modules  The high I/O count supports multi-channel interfaces and dense connectivity required in commercial networking and telecom modules.
• Prototyping and development platforms  The combination of logic, memory, and I/O makes this device suitable for advanced prototyping and evaluation of large FPGA designs.

Unique Advantages

• Large programmable fabric: 102,400 logic elements enable complex logic implementations and feature-rich designs without external logic.
• Substantial embedded memory: Approximately 8.4 Mbits of on-chip RAM reduces reliance on external memory for many buffering and lookup needs.
• Extensive I/O capability: 680 I/O pins provide flexibility for interfacing with multiple peripherals, buses, and high-pin-count connectors.
• Compact high‑ball-count package: The 1738-ball FCBGA (42.5 × 42.5 mm) balances surface-mount board integration with the device’s high pin count.
• Commercial temperature suitability: Specified 0 °C to 85 °C operation for mainstream commercial deployments.
• RoHS compliant: Meets common environmental manufacturing requirements to simplify compliance efforts.

Why Choose XC5VFX100T-2FF1738C?

The XC5VFX100T-2FF1738C positions itself as a high-capacity, commercially graded FPGA option within AMD’s Virtex®-5 FXT family, delivering a balance of extensive logic elements, embedded memory, and large I/O count in a surface-mount FCBGA package. Its electrical and thermal specifications align with commercial system requirements where on-chip resources and connectivity density are priorities.

This device is well suited for engineers and teams building large, logic-intensive commercial applications that benefit from integrated memory and broad interfacing capability, offering a scalable platform for complex designs while maintaining RoHS compliance and standard commercial operating parameters.

Request a quote or submit an inquiry to obtain pricing, lead times, and availability for the XC5VFX100T-2FF1738C. Our team can help with order details and supply information tailored to your project needs.
