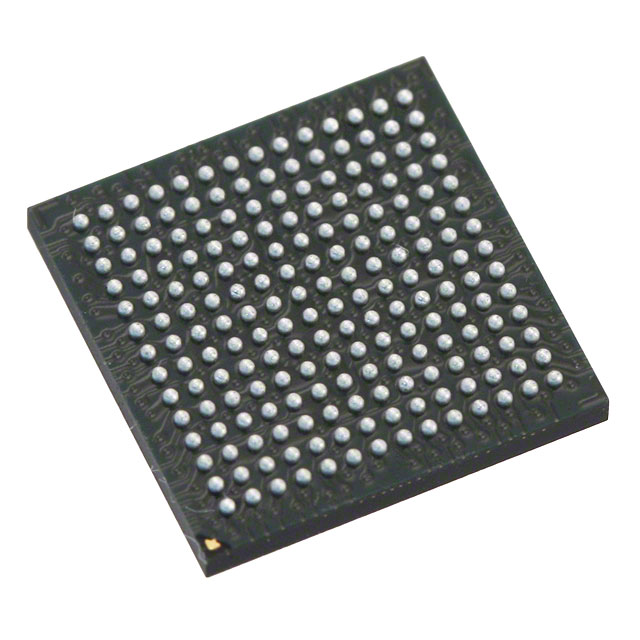

XC6SLX16-2CPG196C

The XC6SLX16-2CPG196C is a Spartan®-6 LX Field Programmable Gate Array (FPGA) from AMD designed for configurable digital logic applications. It combines a moderate logic capacity with on-chip embedded memory and a practical I/O count in a compact surface-mount BGA package.

With 14,579 logic elements and approximately 589,824 bits of embedded memory, this commercial-grade device addresses applications that require flexible, programmable logic, moderate embedded storage, and a defined operating voltage and temperature range.

Key Features

• Logic Capacity — 14,579 logic elements provide the programmable fabric for implementing custom digital logic and control functions.
• Embedded Memory — Approximately 589,824 bits of on-chip RAM for data buffering, state storage, and small local memory requirements.
• I/O Resources — 106 user I/Os to connect to peripherals, sensors, and other ICs.
• Power — Supported core voltage supply range of 1.14 V to 1.26 V.
• Package and Mounting — 196-TFBGA (CSBGA) package, supplier package 196-CSPBGA (8×8); surface-mount for compact board integration.
• Operating Range and Grade — Commercial grade with an operating temperature range of 0 °C to 85 °C.
• Environmental Compliance — RoHS compliant.

Typical Applications

• Custom digital processing — Implement application-specific processing blocks and control logic using the device's programmable fabric and embedded memory.
• Peripheral and interface bridging — Use the 106 I/Os to create interface logic between controllers, sensors, and external devices.
• Prototyping and evaluation — Deploy as a configurable platform for validating digital designs before production.
• Embedded control and signal handling — Implement finite-state machines, timing control, and local buffering leveraging on-chip RAM and logic elements.

Unique Advantages

• Balanced logic and memory capacity: 14,579 logic elements combined with approximately 589,824 bits of embedded memory support a range of mid-density logic designs without immediate need for external RAM.
• Practical I/O count: 106 user I/Os enable integration with multiple peripherals and interfaces while keeping board routing manageable.
• Compact surface-mount BGA: The 196-TFBGA (196-CSPBGA, 8×8) package delivers a dense footprint suitable for space-constrained PCBs.
• Defined power envelope: Narrow core voltage range (1.14 V–1.26 V) helps simplify power-supply design for consistent operation.
• Commercial temperature rating: Rated 0 °C to 85 °C for standard commercial deployments.
• RoHS compliant: Meets common environmental compliance requirements for modern electronics manufacturing.

Why Choose XC6SLX16-2CPG196C?

The XC6SLX16-2CPG196C positions itself as a practical Spartan-6 LX FPGA option for designs that need moderate logic density, embedded memory, and a solid I/O footprint in a compact BGA package. Its commercial-grade temperature range and RoHS compliance make it suitable for standard electronics products and development platforms.

Engineers and procurement teams seeking a programmable, mid-density FPGA with clear electrical and mechanical characteristics will find this device well suited for prototyping, interface logic, control systems, and other applications where on-chip memory and a defined I/O count are important.
