XCAU10P-2UBVA368E

The XCAU10P-2UBVA368E is an Artix® UltraScale+ field programmable gate array (FPGA) supplied in a 368-WFBGA / 368-FCBGA package. It provides a combination of programmable logic, embedded memory and a significant I/O count suitable for designs that require integrated, configurable logic resources.

Key hardware attributes include 96,250 logic elements, approximately 3.67 Mbits of embedded memory (3,670,016 total RAM bits), and 128 user I/O pins, all in a surface-mount 368-FCBGA (10.5×10.5) package. The device operates from a core voltage range of 825 mV to 876 mV and is specified for operation from 0 °C to 100 °C with an Extended grade.

Key Features

• Core Logic 96,250 logic elements provide the programmable fabric for implementing custom digital logic and data-path functions.
• Embedded Memory Approximately 3.67 Mbits of on-chip RAM (3,670,016 total RAM bits) for buffering, FIFOs, and local working storage.
• I/O Resources 128 user I/O pins support a range of external interfaces and connectivity in a compact footprint.
• Power Core supply specified between 825 mV and 876 mV, enabling predictable power planning for system designers.

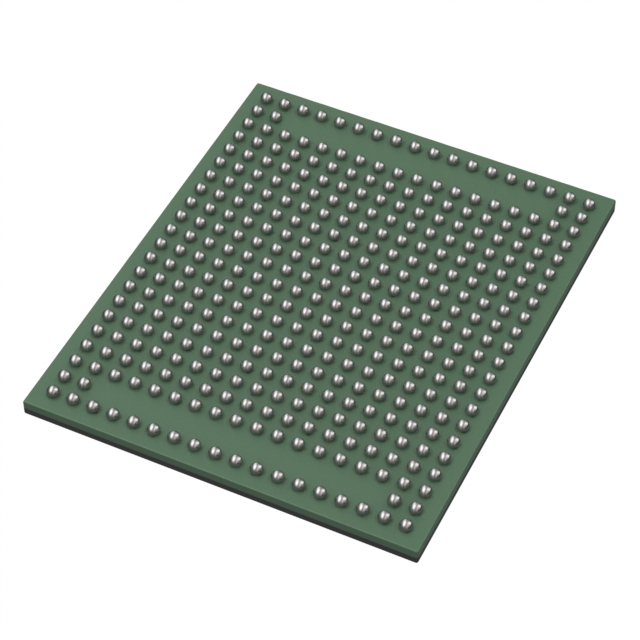

• Package & Mounting Supplied in a 368-WFBGA / 368-FCBGA package; supplier device package is 368-FCBGA (10.5×10.5). Surface-mount mounting type for PCB assembly.
• Operating Range & Grade Extended grade device with an operating temperature range of 0 °C to 100 °C.
• Compliance RoHS compliant for environmental and regulatory alignment.

Typical Applications

• Embedded systems — Implement custom logic functions and local memory buffering using the device's logic elements and embedded RAM.
• Prototyping and development — Provide a flexible platform for validating digital designs and performing iterative development.
• I/O-rich interface controllers — Support multi-signal interfaces and protocol glue logic with 128 available I/O pins.

Unique Advantages

• Substantial programmable capacity: 96,250 logic elements allow integration of sizable custom logic blocks without external ASICs.
• On-chip memory: Approximately 3.67 Mbits of embedded memory reduces dependence on external RAM for many buffering and storage tasks.
• Balanced I/O and package: 128 I/Os in a 368-FCBGA (10.5×10.5) package offers a compact solution for designs requiring significant external connectivity.
• Predictable power envelope: Defined core voltage range (825 mV–876 mV) supports accurate power-supply design and system integration.
• Extended temperature operation: Specified 0 °C to 100 °C operating range for applications requiring Extended-grade components.
• Regulatory alignment: RoHS compliance supports environmental and material requirements.

Why Choose XCAU10P-2UBVA368E?

The XCAU10P-2UBVA368E positions itself as a tightly integrated FPGA option within the Artix® UltraScale+ family by combining a high logic element count, multiple megabits of embedded RAM, and a sizable I/O complement in a compact 368-FCBGA package. Its defined voltage and temperature characteristics make it suitable for designs that need predictable power and thermal behavior.

This device is well suited for engineers and procurement teams seeking a programmable logic device with substantial on-chip resources for prototype and production systems where surface-mount packaging, RoHS compliance, and Extended-grade operating range are required.

Request a quote or submit an RFQ to obtain pricing and availability for XCAU10P-2UBVA368E.
