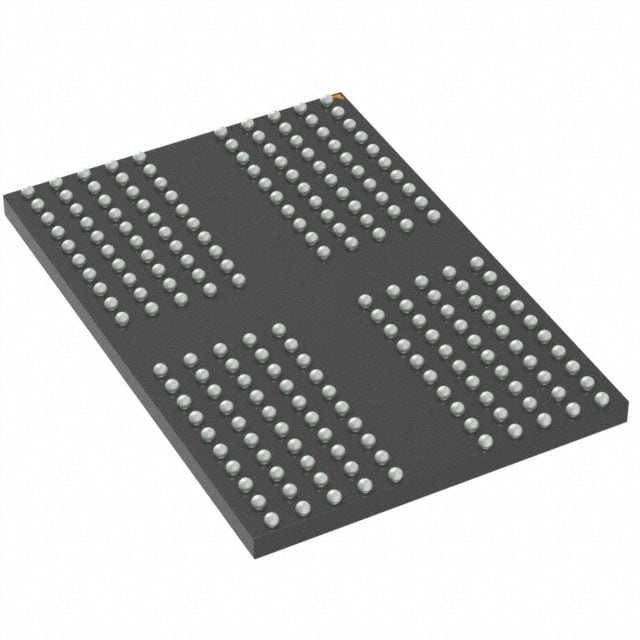

MT53D1024M32D4DT-046 AAT:D TR
| Part Description |
IC DRAM 32GBIT 2.133GHZ 200VFBGA |
|---|---|
| Quantity | 632 Available (as of May 5, 2026) |
| Product Category | Memory |
|---|---|
| Manufacturer | Micron Technology Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | RFQ |
| Datasheet |
Specifications & Environmental
| Device Package | 200-VFBGA (10x14.5) | Memory Format | DRAM | Technology | SDRAM - Mobile LPDDR4 | ||
|---|---|---|---|---|---|---|---|
| Memory Size | 32 Gbit | Access Time | N/A | Grade | Automotive | ||
| Clock Frequency | 2.133 GHz | Voltage | 1.1V | Memory Type | Volatile | ||
| Operating Temperature | -40°C ~ 105°C (TC) | Write Cycle Time Word Page | N/A | Packaging | 200-VFBGA | ||
| Mounting Method | Volatile | Memory Interface | N/A | Memory Organization | 1G x 32 | ||
| Moisture Sensitivity Level | 3 (168 Hours) | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Qualification | AEC-Q100 | ECCN | EAR99 | HTS Code | 8542.32.0036 |
Overview of MT53D1024M32D4DT-046 AAT:D TR – IC DRAM 32GBIT 2.133GHZ 200VFBGA
The MT53D1024M32D4DT-046 AAT:D TR is a volatile SDRAM device implemented in Mobile LPDDR4 technology, offering 32 Gbit capacity organized as 1G × 32. It provides a 2.133 GHz clock frequency and operates from a 1.1 V supply, packaged in a compact 200-VFBGA (10 × 14.5 mm) footprint.
Qualified to AEC-Q100 and specified for an operating temperature range of −40°C to 105°C (TC), this device addresses applications requiring high-bandwidth, automotive-grade memory in constrained form factors.
Key Features
- Core / Memory Architecture Mobile LPDDR4 SDRAM architecture with a total memory size of 32 Gbit organized as 1G × 32 for wide data paths and high throughput.
- Performance 2.133 GHz clock frequency supporting high-bandwidth data transfers.
- Power 1.1 V supply voltage for reduced power operation compared to higher-voltage memory options.
- Package 200-VFBGA package (10 × 14.5 mm) optimized for space-constrained board designs.
- Temperature & Qualification Operating temperature −40°C to 105°C (TC) and AEC-Q100 qualification for automotive-grade reliability requirements.
- Memory Type & Format Volatile DRAM specifically formatted as SDRAM - Mobile LPDDR4.
Typical Applications
- Automotive systems Use as high-bandwidth working memory in automotive electronic control units and infotainment systems benefiting from AEC-Q100 qualification and wide temperature range.
- Embedded computing High-capacity mobile LPDDR4 memory for embedded processors and compute modules where compact package and high data rates are required.
- Mobile and handheld devices Provides the density and frequency needed for mobile-class memory applications that require a small-footprint VFBGA package.
Unique Advantages
- High capacity in a small footprint: 32 Gbit memory in a 200-VFBGA (10 × 14.5 mm) package reduces PCB area while delivering sizable memory resources.
- High data-rate operation: 2.133 GHz clock frequency enables high-bandwidth transfer rates for demanding workloads.
- Automotive-grade qualification: AEC-Q100 qualification supports use in temperature- and reliability-sensitive automotive applications.
- Wide operating temperature: Rated from −40°C to 105°C (TC) for extended environmental tolerance.
- Low-voltage operation: 1.1 V supply supports lower power consumption profiles compared to higher-voltage alternatives.
- Standard memory organization: 1G × 32 organization simplifies integration into standard memory controllers designed for LPDDR4 devices.
Why Choose MT53D1024M32D4DT-046 AAT:D TR?
This MT53D1024M32D4DT-046 AAT:D TR device combines Mobile LPDDR4 architecture, 32 Gbit density, and a 2.133 GHz clock to deliver a balance of capacity and throughput in a compact 200-VFBGA package. Its 1.1 V operation and AEC-Q100 qualification make it suitable for designs that require energy-efficient memory with automotive-grade reliability and wide temperature capability.
The device is well suited for engineers and procurement teams building automotive, embedded, and mobile systems that need scalable memory performance, compact board integration, and vendor-backed qualification for demanding environments.
Request a quote or contact sales to discuss availability, pricing, and integration details for MT53D1024M32D4DT-046 AAT:D TR.
