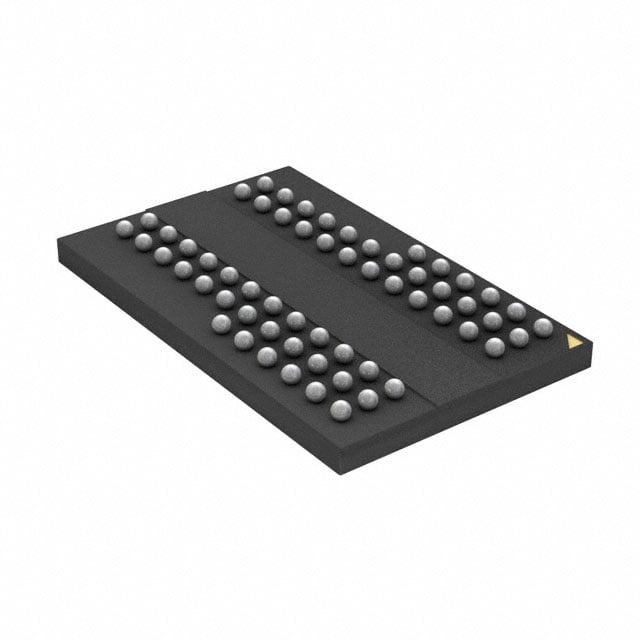

W9425G6JB-5I

The W9425G6JB-5I is a 256 Mbit DDR SDRAM configured as 16M × 16 with an internal organization of 4M × 4 banks × 16 bits and a parallel memory interface. It implements standard DDR SDRAM command and mode-register functions, including bank activate, precharge, auto-refresh and self-refresh operations as described in the device datasheet.

Designed for systems requiring a compact low-voltage DDR memory component, the device operates at a clock frequency up to 200 MHz, with an access time of 55 ns, a write cycle time (word page) of 15 ns, supply voltage range of 2.3 V to 2.7 V, and an operating temperature range of -40°C to 85°C. The package is a 60-TFBGA (8×13).

Key Features

• Memory Architecture 256 Mbit DDR SDRAM organized as 16M × 16; internal architecture documented as 4M × 4 banks × 16 bits.
• DDR Command Set Supports standard DDR SDRAM commands and mode register operations (bank activate, precharge, read, write, auto-refresh, self-refresh, mode/extended mode register set) as detailed in the device documentation.
• Performance Clock frequency up to 200 MHz with an access time of 55 ns and a write cycle time (word page) of 15 ns for predictable read/write timing.
• Interface Parallel memory interface providing standard DDR signaling and burst operations as defined in the datasheet.
• Power Low-voltage operation with a recommended supply range of 2.3 V to 2.7 V.
• Package and Mounting Supplied in a compact 60-TFBGA (8×13) package suitable for board-level mounting.
• Temperature Range Specified operating ambient temperature from -40°C to 85°C (TA).

Unique Advantages

• Standard DDR architecture: 4M × 4 banks × 16 bits and 16M × 16 organization provide predictable DDR behavior and compatibility with designs using parallel DDR SDRAM primitives described in the datasheet.
• Balanced read/write timing: 55 ns access time and 15 ns write cycle time (word page) support deterministic burst read/write operations at the specified clock rate.
• Low-voltage operation: 2.3 V–2.7 V supply range reduces power domain complexity where low-voltage DDR memory is required.
• Compact BGA footprint: 60-TFBGA (8×13) package minimizes PCB area while providing full DDR signal connectivity.
• Extended temperature support: -40°C to 85°C operating range enables use across a broad set of temperature conditions specified for the device.
• Comprehensive functional detail: Datasheet includes full command descriptions, timing waveforms, mode register definitions and system timing tables to support implementation and validation.

Why Choose IC DRAM 256MBIT PAR 60TFBGA?

The W9425G6JB-5I delivers a compact, low-voltage DDR SDRAM option with a clear specification set—256 Mbit density, 16M × 16 organization, 200 MHz clock capability, and documented DDR command and timing behavior. Its electrical and timing parameters, along with the 60-TFBGA package and -40°C to 85°C operating range, make it a suitable choice for designs that require documented DDR functionality in a small footprint.

Selection of this device provides engineers with explicit timing, command and mode-register information in the datasheet to support system integration and validation, while the supply voltage and temperature specifications define clear operating boundaries for power and thermal planning.

To request pricing, lead time or to submit a quote request for the W9425G6JB-5I, please request a quote or product inquiry with your procurement details.
