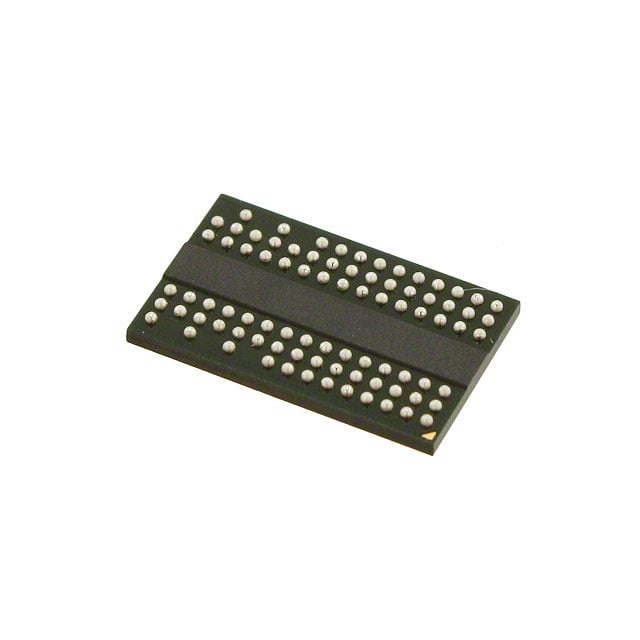

W9751G6KB-18 TR

The W9751G6KB-18 TR is a 512 Mbit DDR2 SDRAM device with a parallel memory interface supplied in an 84-ball WBGA package. It implements a 32M × 16 memory organization (documented as 8M × 4 banks × 16 bit in the datasheet) and is specified for a 533 MHz clock frequency.

This device delivers DDR2-standard command functionality and timing options with documented electrical and timing parameters, supporting designs that require a compact, high-density DDR2 memory component with a 1.7 V–1.9 V supply range and an operating temperature range of 0 °C to 85 °C (TC).

Key Features

• Memory Core and Organization DDR2 SDRAM with 512 Mbit capacity and a 32M × 16 organization; datasheet references 8M × 4 banks × 16 bit architecture.
• Performance Supports a 533 MHz clock frequency with an access time of 58.13 ns and a write cycle time (word page) of 15 ns.
• Voltage and Power Operates from a 1.7 V to 1.9 V supply, matching DDR2 operating ranges documented in the datasheet.
• Interface and Format Parallel DRAM interface following DDR2 command and timing conventions (read, write, bank activate, refresh, mode register and extended mode register operations).
• Command and Control Features Datasheet includes Mode Register Set (MRS), Extended Mode Registers (EMRS), on-die termination (ODT), off-chip driver (OCD) impedance adjustment, power-down, self-refresh and refresh operation details.
• Package Supplied in an 84-TFBGA / 84-WBGA (8 × 12.5 mm) package for compact board-level integration.
• Operating Temperature Specified for 0 °C to 85 °C (TC), with full electrical and timing specifications provided in the datasheet.

Unique Advantages

• High-density DDR2 memory: 512 Mbit capacity in a single device enables higher memory per package without adding external components.
• DDR2-standard timing and control: Comprehensive datasheet coverage of MRS, EMRS, ODT, refresh, power-down and self-refresh supports standard DDR2 control flows.
• 533 MHz clock support: Documented clock-frequency rating and associated AC characteristics allow design planning around the device’s specified timing envelope.
• Compact BGA footprint: 84-ball WBGA (8 × 12.5 mm) package reduces board area for space-constrained designs.
• <strong-Wide supply band: Operation across 1.7 V–1.9 V provides the defined DDR2 supply window used by the device.

Why Choose W9751G6KB-18 TR?

The W9751G6KB-18 TR offers a documented DDR2 SDRAM solution with 512 Mbit density, a 32M × 16 organization and a compact 84-WBGA package. Its electrical and timing parameters—including 533 MHz clock support, access time and write-cycle timing—are specified in the datasheet to support design validation and system integration.

This device is suitable for designs that require a parallel DDR2 memory component with on-die features and standard DDR2 command support; the provided datasheet includes detailed initialization sequences, mode register controls, timing waveforms and electrical characteristics to support engineering evaluation and qualification activities.

If you would like pricing or availability information, request a quote or submit an inquiry to our sales team for this W9751G6KB-18 TR DDR2 SDRAM part. We can provide product lead-time and volume pricing details upon request.
