W9825G6JB-6I TR

The W9825G6JB-6I TR is a 256 Mbit synchronous DRAM (SDRAM) organized as 4M × 4 banks × 16 bits (16M × 16). It implements high-speed, burst-oriented SDRAM operation with an LVTTL memory interface and is offered in a 54‑TFBGA (8×8) package.

Designed for systems that require synchronous, high-throughput volatile memory, this device supports a clock frequency of 166 MHz, a 3.0–3.6 V supply range and an operating temperature range of −40 °C to 85 °C.

Key Features

• Core / Memory Architecture Organized as 4M × 4 banks × 16 bits (equivalent to 16M × 16) delivering 256 Mbit of volatile SDRAM storage.
• Performance Up to 166 MHz clock frequency and 5 ns access time for synchronous burst transfers and high data throughput.
• SDRAM Functionality Supports burst read/write, auto-precharge, self-refresh and power-down modes as described in the device functional command set.
• Interface LVTTL memory interface for standard synchronous control signaling.
• Power Rated for a supply voltage range of 3.0 V to 3.6 V to match common 3V system rails.

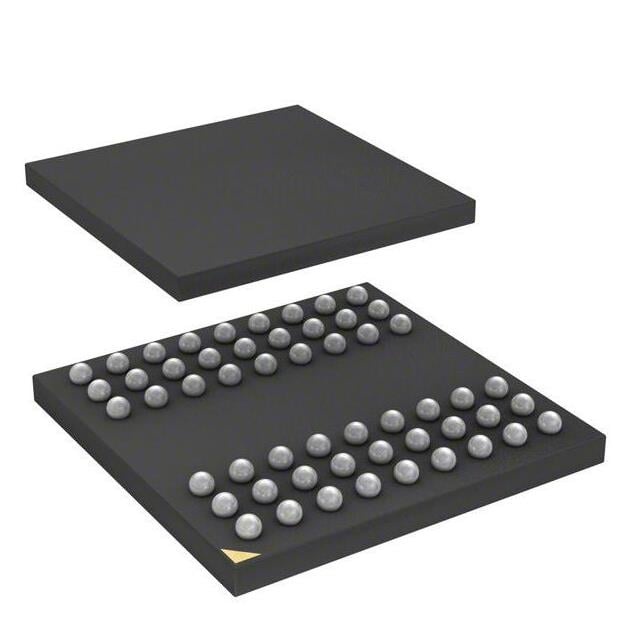

• Package 54‑TFBGA (8×8) supplier device package for compact board-level integration.
• Operating Temperature Industrial temperature support: −40 °C to 85 °C (TA) for designs requiring extended ambient range.

Typical Applications

• Industrial control and automation — Extended temperature support and industrial-grade specification (-6I) make it suitable for controllers and PLC modules requiring reliable volatile memory.
• Embedded high-speed buffering — Synchronous burst operation and 166 MHz clock capability enable use as working memory or data buffers in embedded systems.
• Networking and communications equipment — High-throughput SDRAM operation supports buffering and packet handling in synchronous designs.

Unique Advantages

• Industrial temperature capability: Guaranteed operation from −40 °C to 85 °C, supporting deployment in extended‑range environments.
• High synchronous throughput: 166 MHz clocking and 5 ns access time enable fast burst transfers for performance-sensitive memory tasks.
• Standard LVTTL interface: Simplifies timing and signal-level integration with LVTTL-based memory controllers and logic.
• Compact BGA footprint: 54‑TFBGA (8×8) package reduces PCB area while providing a robust soldered connection.
• Comprehensive SDRAM feature set: Supports burst lengths, auto-precharge, self-refresh and power-down modes for flexible memory management.
• Wide supply voltage window: 3.0–3.6 V tolerance accommodates common 3V system rails and reduces supply constraints.

Why Choose W9825G6JB-6I TR?

The W9825G6JB-6I TR combines a proven SDRAM architecture with industrial temperature capability and a compact 54‑TFBGA footprint, making it a practical choice for designs that require reliable, synchronous volatile memory at up to 166 MHz. Its LVTTL interface and standard SDRAM command set simplify integration into existing memory controllers and embedded platforms.

This part is well suited to engineers and procurement teams building industrial and embedded systems that need predictable timing, burst-oriented transfers, and extended ambient operation while maintaining a small board footprint and standard 3.0–3.6 V supply compatibility.

If you would like pricing or availability information, request a quote or contact the supplier for sales support and lead-time details.
