MCIMX6D5EYM10AC

The MCIMX6D5EYM10AC is an NXP i.MX 6D series microprocessor IC featuring two ARM® Cortex®-A9 cores operating at 1.0 GHz. Designed as a multimedia-focused applications processor, it delivers integrated processing, graphics acceleration and a broad set of peripherals for embedded and industrial designs.

As part of the i.MX 6 family, this dual-core MPU targets industrial and embedded applications that require video and graphics capabilities, robust connectivity and secure boot and runtime protections while benefiting from integrated memory interfaces and on-chip power management.

Key Features

• CPU Core  Dual ARM® Cortex®-A9 cores, 32-bit architecture, 1 GHz operating speed for parallel application and multimedia processing.
• Multimedia & Acceleration  Multimedia co-processor support and NEON™ SIMD enable accelerated media and signal-processing workloads; graphics acceleration and 1080p-class processing are provided by the series architecture.
• Memory Interfaces  Supports LPDDR2, LVDDR3 and DDR3 memory controllers with a wide external memory interface as specified for the i.MX 6 series.
• Display & Input  Integrated display interface controllers including LCD and keypad support for human-machine interface applications.
• High-Speed Connectivity  Integrated Ethernet 10/100/1000 Mbps (1), SATA 3 Gbps (1), and up to four USB 2.0 ports with PHY for networking, storage and peripheral connectivity.
• Additional Interfaces  CAN interface and multiple peripheral interfaces to connect sensors, radios and other system components.
• Security  Hardware security features including ARM TrustZone (TZ), boot security, cryptography, secure fusebox, secure JTAG, secure memory and secure RTC plus tamper detection.

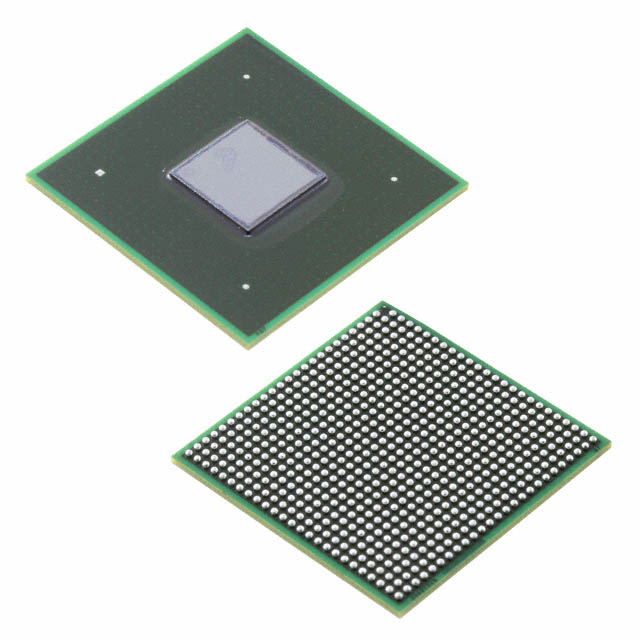

• Package & Mounting  624-FCPBGA surface-mount package; 21 × 21 mm FCPBGA with 0.8 mm pitch as specified for the series package option.
• Environmental & Compliance  RoHS compliant; operating temperature range −20 °C to 105 °C suitable for a range of embedded and industrial environments.

Typical Applications

• Industrial HMI and Control  Drives LCD displays and keypad interfaces while providing the processing headroom for control logic and multimedia content in industrial operator panels.
• Connected Multimedia Devices  Supports 1080p-class video processing, graphics acceleration and USB/Ethernet connectivity for set-top, media gateway and display applications.
• Networking and Storage Appliances  Integrated Gigabit Ethernet and SATA 3 Gbps make it suitable for networked devices and compact storage controllers that require onboard processing.
• Imaging and Sensor Gateways  Interfaces for camera sensors and wireless peripherals enable use in embedded vision, camera preprocessing and sensor aggregation systems.

Unique Advantages

• Integrated multimedia processing: Hardware acceleration and NEON SIMD support reduce software complexity for media and signal-processing tasks.
• Comprehensive I/O set: Gigabit Ethernet, SATA, multiple USB 2.0 ports, CAN and display controllers reduce external bridge components and simplify board design.
• Hardware security suite: Built-in TrustZone, cryptography, secure boot and tamper detection provide layered device security for protected applications.
• Industrial temperature capability: Rated for operation from −20 °C to 105 °C to meet a wide range of embedded and industrial environmental conditions.
• Compact BGA footprint: 624-FCPBGA 21 × 21 mm package provides a high-pin-count solution in a compact surface-mount form factor.
• Part of the i.MX 6 family: Leverages the i.MX 6 series architecture and documentation set for design continuity within the product family.

Why Choose MCIMX6D5EYM10AC?

The MCIMX6D5EYM10AC positions itself as a balanced dual-core embedded MPU combining Cortex-A9 processing, multimedia acceleration and a broad peripheral set in a single surface-mount BGA package. Its security features, integrated memory interfaces and wired connectivity options make it suitable for industrial and embedded designs that require processing, display and storage connectivity in a compact footprint.

Engineers designing industrial HMIs, multimedia gateways, networked storage or imaging systems will find this part useful where verified series-level documentation, integrated peripherals and industrial-temperature operation are required for reliable long-term deployment.

Request a quote or submit an inquiry for MCIMX6D5EYM10AC to check availability, lead times and pricing for your design requirements.
