MCIMX6D5EYM10ADR

The MCIMX6D5EYM10ADR is an NXP i.MX 6D series multimedia applications microprocessor featuring dual ARM® Cortex®-A9 cores running at 1.0 GHz. It is designed for embedded and industrial systems that require integrated multimedia processing, graphics acceleration and a broad set of high-speed interfaces.

With on-chip memory controllers, display and peripheral interfaces, and a comprehensive set of security features, this device targets embedded HMI, multimedia, networking and storage applications where performance and system integration are key.

Key Features

• Core & Architecture Dual ARM® Cortex®-A9 cores, 32-bit, running at 1.0 GHz, with NEON™ SIMD multimedia co-processor capability to accelerate signal and media processing.
• Memory Support Integrated memory controllers for LPDDR2, LVDDR3 and DDR3 memory types to support flexible system memory choices.
• Multimedia & Graphics Graphics acceleration and multimedia processing suited for video and display applications; the i.MX6 family is oriented to multimedia-focused designs.
• High-Speed Interfaces Built-in 10/100/1000 Mbps Ethernet (1), SATA 3 Gbps (1), four USB 2.0 ports with PHY, CAN and display interfaces (LCD, keypad) for broad peripheral connectivity.
• Security & Boot Extensive security features including ARM TrustZone (TZ), Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC and Tamper Detection to support protected boot and runtime security models.

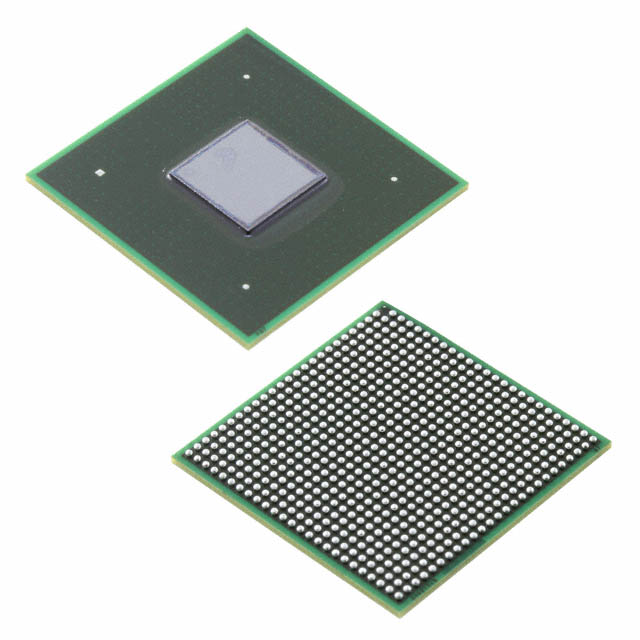

• Package & Environmental 624-FCPBGA (21 × 21 mm) mounting in a surface-mount FCPBGA package; operating temperature range −20 °C to 105 °C. RoHS compliant.

Typical Applications

• Industrial HMI and Control Drives graphical user interfaces and display controllers for industrial operator panels and machine HMIs where multimedia and input handling are required.
• Multimedia and Digital Signage Supports graphics acceleration and video processing for embedded media players, digital signage and display-centric applications.
• Networking and Gateway Devices Integrated Gigabit Ethernet and multiple USB ports make it suitable for networking appliances, IoT gateways and protocol converters.
• Storage and Media Systems SATA 3 Gbps support helps enable local storage, media playback and embedded NAS or media server applications.

Unique Advantages

• Highly integrated multimedia platform: Dual Cortex-A9 cores with NEON SIMD and graphics acceleration reduce the need for external processors in media-focused designs.
• Broad peripheral connectivity: Gigabit Ethernet, SATA, multiple USB 2.0 ports, CAN and display interfaces simplify system architecture and lower BOM complexity.
• Flexible memory options: Support for LPDDR2, LVDDR3 and DDR3 memory types enables designers to choose the best memory trade-offs for cost, performance and power.
• Comprehensive security features: Multiple on-chip security mechanisms and secure boot support help protect IP and sensitive application data.
• Industrial-capable thermal range: Specified for operation from −20 °C to 105 °C to meet embedded and industrial environment requirements.

Why Choose MCIMX6D5EYM10ADR?

The MCIMX6D5EYM10ADR delivers a balance of compute performance, multimedia capability and extensive peripheral integration for embedded designs that demand robust connectivity and secure operation. Its dual ARM® Cortex®-A9 cores, multimedia acceleration and wide interface set make it suitable for HMI, multimedia, networking and storage-focused systems.

Designed with system integration and longevity in mind, the device offers flexible memory support, comprehensive security features and an industrial temperature rating—providing a scalable foundation for products that require integration of graphics, networking and storage functions with protected boot and runtime security.

Request a quote or submit a sales inquiry to receive pricing and availability information for the MCIMX6D5EYM10ADR.
