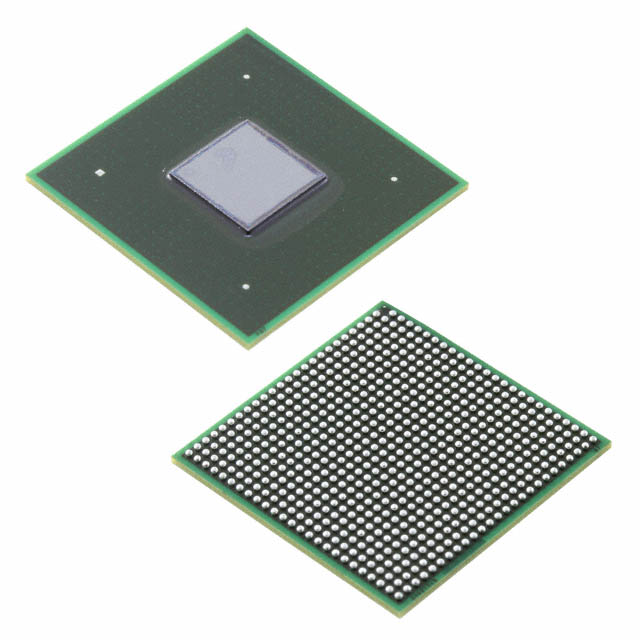

MCIMX6D5EYM10AER

The MCIMX6D5EYM10AER is an NXP i.MX 6D series multimedia application processor featuring dual ARM® Cortex®-A9 cores running at 1.0 GHz. It is designed for embedded and industrial multimedia applications that require balanced processing performance, graphics acceleration and a broad set of peripheral interfaces.

Built for systems that integrate displays, storage and network connectivity, this device combines dual-core compute, 2D/3D graphics and video processing capabilities with a wide range of I/O and security features to support industrial HMIs, multimedia appliances and connected embedded devices.

Key Features

• Processor Core  Dual ARM® Cortex®-A9 cores, 32-bit, 1.0 GHz clock speed for multicore application processing.
• Multimedia & Acceleration  On-chip graphics acceleration with 2D and 3D graphics processors and video processing capabilities suitable for multimedia applications (series-level feature).
• Memory Interface  64-bit memory interface supporting LPDDR2, LVDDR3 and DDR3 memory controllers to meet diverse system memory requirements.
• Connectivity & Storage  Integrated Gigabit Ethernet (10/100/1000 Mbps, 1), SATA 3 Gbps (1) and four USB 2.0 ports with PHY for networking and storage connectivity.
• Peripheral Interfaces  Display and input controllers (LCD, keypad) plus additional interfaces such as CAN for flexible peripheral integration.
• Security  Hardware security features including ARM TrustZone, boot security, cryptography, secure JTAG, secure fusebox, secure memory and tamper detection.
• Package & Mounting  Supplied in a 624-FCPBGA (21 × 21 mm) package (624-LFBGA/FCBGA family), surface-mount package for compact board designs.
• Operating Range & Compliance  Industrial temperature range of −20°C to 105°C and RoHS-compliant status for regulatory alignment.

Typical Applications

• Industrial Human‑Machine Interfaces (HMIs)  Dual-core processing with graphics acceleration and LCD/keypad controllers enables responsive operator displays and control panels.
• Multimedia Players & Set‑top Devices  On-chip 2D/3D graphics and video processing support 1080p-class multimedia playback and user interfaces.
• Networked Embedded Systems  Gigabit Ethernet, multiple USB ports and SATA support networked appliances, gateways and storage-enabled devices.
• Imaging & Sensor Gateways  Peripheral interfaces and ample memory bandwidth make the device suitable for camera sensor integration and edge preprocessing.

Unique Advantages

• Highly integrated multimedia platform: Dual ARM® Cortex®-A9 cores combined with 2D/3D graphics and video processing reduce system complexity for multimedia designs.
• Comprehensive I/O and storage: Gigabit Ethernet, SATA 3Gbps and four USB 2.0 ports with PHY provide broad connectivity options out of the box.
• Flexible memory support: 64-bit memory interface compatible with LPDDR2, LVDDR3 and DDR3 enables designers to choose the memory technology that fits cost and performance targets.
• Hardware security suite: TrustZone, secure boot and cryptography features help protect boot integrity, critical assets and runtime operations.
• Industrial temperature and packaging: −20°C to 105°C operating range and compact 624-FCPBGA (21×21 mm) package support robust, space-efficient designs.
• RoHS compliant: Meets RoHS requirements for environmentally conscious product design and manufacturing.

Why Choose MCIMX6D5EYM10AER?

The MCIMX6D5EYM10AER positions itself as a balanced, integrated solution for embedded systems that demand multimedia capability, secure boot and broad peripheral connectivity. Its dual ARM® Cortex®-A9 cores at 1.0 GHz, combined with graphics acceleration and a wide suite of interfaces, make it well suited to industrial HMIs, multimedia appliances and connected embedded platforms.

As part of the i.MX 6 family, this device delivers a proven feature set—memory flexibility, storage and networking interfaces, and on-chip security—allowing designers to reduce BOM complexity while addressing performance and reliability targets for mid-range embedded designs.

Request a quote or submit a parts inquiry to receive pricing and availability for the MCIMX6D5EYM10AER. Our team can provide lead-time and ordering information to support your design schedule.
