MCIMX6DP4AVT1AB

The MCIMX6DP4AVT1AB is a dual-core ARM® Cortex®-A9 microprocessor running at 1.0 GHz in a 624-FCBGA (21 × 21 mm) package from NXP Semiconductors. It targets graphics-intensive, multimedia-capable embedded designs that require a compact, high-integration application processor with broad I/O and memory support.

Designed as part of the i.MX 6 series family, this MPU combines dual 32-bit cores with multimedia DSP/NEON acceleration, a wide set of display and peripheral interfaces, and on-chip security features to support complex embedded applications.

Key Features

• Core & Performance  Dual ARM® Cortex®-A9 32-bit cores at 1 GHz provide a balanced platform for compute and multimedia tasks.
• Multimedia DSP & SIMD  Integrated multimedia co-processor and NEON™ SIMD acceleration for enhanced media and signal-processing workloads.
• Memory Interfaces  Multi-type memory controller supporting LPDDR2, DDR3L, and DDR3, with a 64-bit external memory interface referenced in the datasheet.
• Graphics & Video  Graphics acceleration and updated 2D/3D graphics and 1080p video processing capabilities are part of the i.MX 6 series implementation.
• Display Controllers  Multiple display interfaces including HDMI, LCD parallel, LVDS and MIPI/DSI to support a range of panel and video output options.
• Connectivity & Storage  Integrated Ethernet (10/100/1000 Mbps, 1), SATA 3 Gbps (1), multiple USB 2.0 ports with PHYs (3) and USB 2.0 OTG + PHY (1), plus CAN for vehicle/network control interfaces.
• Security & System Management  On-chip security features including ARM TrustZone, A-HAB, CAAM, CSU, SJC and SNVS provide a layered security foundation.

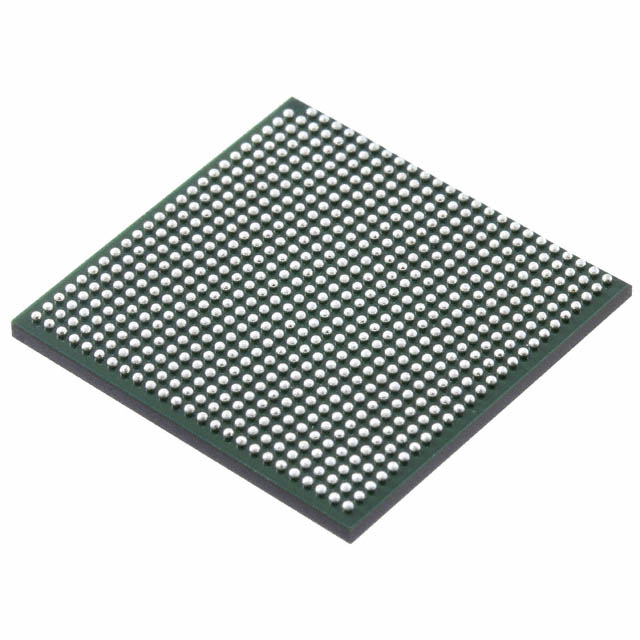

• Package & Mounting  624-FCBGA supplier device package (21 × 21 mm, 0.8 mm pitch) intended for surface-mount assembly.
• Operating Range & Compliance  Wide operating temperature range from −40 °C to 125 °C and RoHS compliant.

Typical Applications

• High-performance multimedia systems  Use the dual-core CPU, NEON SIMD and graphics acceleration to handle video playback, GUIs and imaging tasks.
• Embedded display controllers  Support for HDMI, LVDS and MIPI/DSI makes the MPU suitable for complex display-centric designs.
• Networked storage and peripherals  Integrated Gigabit Ethernet, SATA and multiple USB ports enable connected storage and peripheral-rich embedded appliances.
• Industrial and harsh-environment devices  Extended −40 °C to 125 °C operating range and robust integration for deployment in demanding conditions.

Unique Advantages

• Dual-core processing with SIMD acceleration: Dual ARM Cortex-A9 cores plus NEON SIMD and multimedia DSP capabilities accelerate compute and media workloads without external coprocessors.
• Comprehensive display and video I/O: Multiple display controllers (HDMI, LVDS, MIPI/DSI, parallel) simplify integration of rich user interfaces and video outputs.
• Broad peripheral connectivity: On-chip Gigabit Ethernet, SATA 3 Gbps, multiple USB ports and CAN reduce the need for discrete controllers and lower BOM complexity.
• Security building blocks: Hardware security features such as TrustZone, CAAM and secure non-volatile support enable layered device protection strategies.
• Compact, production-ready package: 624-FCBGA (21 × 21 mm) surface-mount package consolidates a high pin-count processor into a compact footprint for space-constrained designs.
• Extended temperature capability: −40 °C to 125 °C operating range supports deployment in thermally challenging environments.

Why Choose MCIMX6DP4AVT1AB?

The MCIMX6DP4AVT1AB positions itself as a compact, highly integrated MPU for embedded designs that require dual-core application processing, advanced multimedia support and a broad set of high-speed peripherals. Its combination of memory flexibility, display interfaces and connectivity options makes it suitable for complex embedded systems that need both compute and media capabilities.

As a member of the NXP i.MX 6 family, this device offers continuity with documented platform-level features and package options, enabling engineers to leverage the processor’s on-chip integration and security features to reduce external components and simplify system design.

Request a quote or submit a product inquiry to receive pricing and availability information for MCIMX6DP4AVT1AB.
