MCIMX6DP4AVT8AB

The MCIMX6DP4AVT8AB is an ARM® Cortex®-A9 based microprocessor in the i.MX 6DP series, implemented as a dual-core, 32‑bit MPU running at 852 MHz in a 624‑FCBGA (21×21 mm) package. It combines general-purpose processing with multimedia and graphics acceleration to address embedded designs that require integrated display, storage and connectivity interfaces.

Designed for graphics‑intensive and multimedia embedded applications, the device integrates memory controllers, multiple display interfaces, high‑speed network and peripheral interfaces, and a comprehensive set of security features while supporting a wide operating temperature range from −40°C to 125°C.

Key Features

• Core & Performance — Dual ARM® Cortex®‑A9 cores, 32‑bit, operating at 852 MHz to deliver multi‑threaded application performance for embedded tasks.
• Multimedia Acceleration — Integrated multimedia/DSP engine with NEON™ SIMD and graphics acceleration for 2D/3D and video processing workloads.
• Memory Interfaces — Built‑in memory controllers supporting LPDDR2, DDR3L and DDR3 for flexible system memory options.
• Display Controllers — Multiple display interface options including HDMI, LVDS, MIPI/DSI and parallel LCD, plus keypad support for rich user interfaces.
• Network & Connectivity — Single Gigabit Ethernet (10/100/1000 Mbps) port and CAN interface for wired networking and vehicle‑style communications.
• Storage & USB — One SATA 3 Gbps interface for disk or SSD connectivity and four USB 2.0 interfaces (three host with PHY, one OTG with PHY) for peripheral expansion.
• Security & System — Hardware security features including ARM TrustZone, A‑HAB, CAAM, CSU, SJC and SNVS to support secure boot and runtime protection.

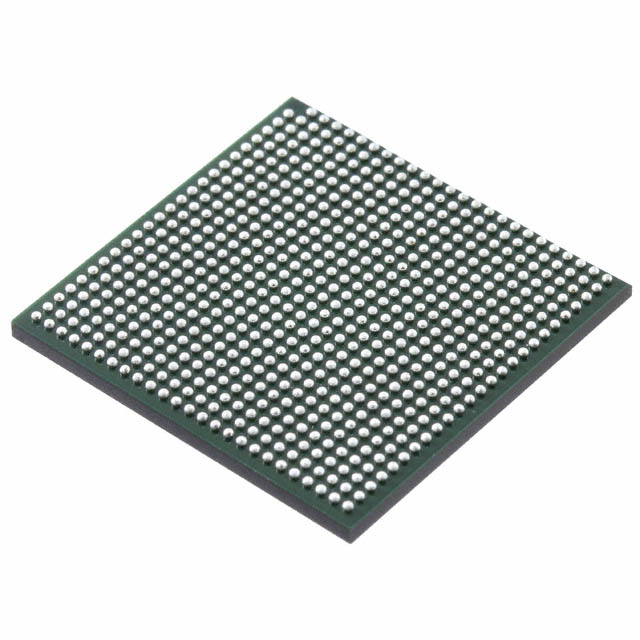

• Package & Mounting — 624‑FCBGA supplier device package (21×21 mm), surface mount.
• Operating Range & Compliance — Rated for operation from −40°C to 125°C; RoHS compliant.

Typical Applications

• Reconfigurable instrument clusters and infotainment systems — The i.MX 6 series is described in the datasheet as suited for graphics‑intensive instrument cluster and high‑performance infotainment applications, leveraging its dual Cortex‑A9 cores and multimedia engines.
• Embedded multimedia appliances — HDMI, MIPI/DSI, LVDS and parallel LCD interfaces make the MPU suitable for display‑driven embedded products that require video and 3D graphics acceleration.
• Networked storage and gateways — Integrated Gigabit Ethernet and SATA 3 Gbps enable networked storage and gateway functions with USB peripheral support.
• Sensor and camera systems — Memory controller support and multimedia interfaces allow interfacing with camera sensors and handling video processing tasks.

Unique Advantages

• Integrated multimedia and graphics — On‑chip multimedia/DSP and graphics acceleration reduce external component count for video and GUI applications.
• Broad display support — Multiple display controller options (HDMI, LVDS, MIPI/DSI, parallel) give designers flexibility for a range of UI implementations.
• Comprehensive connectivity — Gigabit Ethernet, SATA, multiple USB ports and CAN provide diverse options for system I/O and storage integration.
• Robust security features — Built‑in security modules (ARM TZ, A‑HAB, CAAM, CSU, SJC, SNVS) support secure boot and integrity protection in embedded systems.
• Wide temperature operation — Specified −40°C to 125°C operating range supports deployment in demanding thermal environments.
• Compact, manufacturable package — 624‑FCBGA (21×21 mm) surface‑mount package balances I/O density with board‑level integration.

Why Choose MCIMX6DP4AVT8AB?

MCIMX6DP4AVT8AB positions itself as a highly integrated dual‑core ARM® Cortex®‑A9 MPU for embedded systems that require a combination of multimedia capability, broad I/O, and on‑chip security. Its support for multiple memory types, display interfaces, storage options and high‑speed networking makes it suitable for designs that need consolidated processing and peripheral connectivity in a single device.

As part of the i.MX family, this processor offers designers a clear set of hardware features—multimedia acceleration, extensive interfaces and a wide operating temperature range—that enable scalable designs where integration and reliable operation are important.

Request a quote or submit an inquiry to get pricing and availability for MCIMX6DP4AVT8AB and to discuss how this processor can meet your embedded design requirements.
