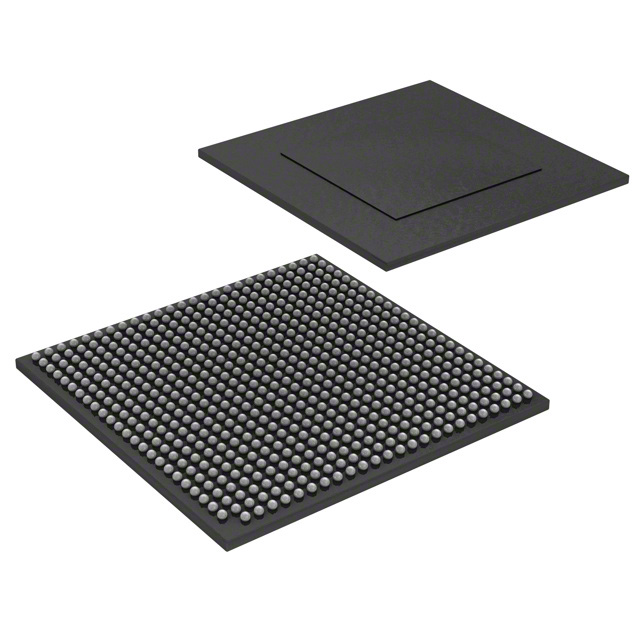

MCIMX6DP5EYM1AA
| Part Description |
ARM® Cortex®-A9 Microprocessor IC i.MX6DP 2 Core, 32-Bit 1.0GHz 624-FCPBGA (21x21) |
|---|---|
| Quantity | 191 Available (as of October 8, 2026) |
| Product Category | Microprocessors |
|---|---|
| Part Series | i.MX 6DP |
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 16 Weeks |
| Datasheet |
Specifications & Environmental
| Co-Processors/DSP | Multimedia; NEON™ SIMD | Core Processor | ARM® Cortex®-A9 | Device Package | 624-FCPBGA (21x21) | ||
|---|---|---|---|---|---|---|---|
| Display & Interface Controllers | HDMI, Keypad, LCD, LVDS, MIPI/DSI, Parallel | ECCN | 5A992C | Ethernet | 10/100/1000Mbps (1) | ||
| Graphics Acceleration | Yes | HTS Code | 8542.31.0001 | Moisture Sensitivity Level | 3 (168 Hours) | ||
| Mounting Method | Surface Mount | Mounting Type | Surface Mount | Number of Cores/Bus Width | 2 Core, 32-Bit | ||
| Operating Temperature | -20°C ~ 105°C (TJ) | Package / Case | 624-LFBGA, FCBGA | RAM Controllers | LPDDR2, DDR3L, DDR3 | ||
| REACH Compliance | REACH Unaffected | RoHS Compliance | ROHS3 Compliant | SATA | SATA 3Gbps (1) | ||
| Security Features | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS | Speed | 1.0GHz | Supplier Device Package | 624-FCPBGA (21×21) | ||
| USB | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) | Voltage – I/O | 1.8V, 2.5V, 2.8V, 3.3V |
Overview of MCIMX6DP5EYM1AA – IC MPU I.MX6DP 1.0GHZ 624FCPBGA
The MCIMX6DP5EYM1AA is a dual-core ARM® Cortex®-A9 application processor running at 1.0 GHz in a 624-FCPBGA (21×21) package. It delivers a balanced combination of multimedia acceleration, rich display connectivity and broad I/O integration for embedded designs.
Targeted applications listed in the product literature include consumer, industrial and automotive segments such as infotainment, digital signage, human‑machine interfaces and IoT gateways. The device emphasizes performance, integration and scalability within the i.MX 6 family.
Key Features
- CPU Core Dual ARM® Cortex®-A9 cores, 32-bit, running at 1 GHz for multi-threaded application performance.
- Multimedia & SIMD On‑chip multimedia DSP capabilities and NEON™ SIMD support for accelerated media processing and signal operations.
- Memory Controllers Integrated memory controller support for LPDDR2, DDR3L and DDR3 memory types to match system memory choices.
- Display & Graphics Graphics acceleration with multiple display interface options including HDMI, LVDS, MIPI/DSI and parallel LCD support for rich UI and video output.
- Storage & Connectivity Integrated SATA 3 Gbps interface and single 10/100/1000 Mbps Ethernet port plus multiple USB ports (three USB 2.0 + PHY and one USB 2.0 OTG + PHY).
- Additional Interfaces Peripheral connectivity includes CAN and standard embedded interfaces to support diverse I/O requirements.
- Security & System Management Hardware security features including ARM TrustZone, A-HAB, CAAM, CSU, SJC and SNVS for secure boot and runtime protections.
- Package & Mounting 624‑ball FCPBGA (21×21) surface‑mount package for compact system integration.
- Operating Range & Compliance Operates from −20 °C to 105 °C and is RoHS compliant.
Typical Applications
- Digital Signage: Use graphics acceleration and multiple display interfaces (HDMI, LVDS, MIPI/DSI) to drive high‑resolution signage and video playback.
- Human‑Machine Interfaces (HMI): Leverage the dual‑core processor and display controllers for responsive touch UI, dashboards and control panels.
- IoT Gateways & Industrial Control: Combine Ethernet, SATA and rich I/O including CAN to support connected gateway and industrial control applications.
- Point‑of‑Sale & IP Phones: Integrate multimedia, storage and USB connectivity for robust retail terminals and communication devices.
- Portable and Consumer Devices: Employ the processor’s multimedia and memory support for tablets, e‑readers and portable entertainment devices.
Unique Advantages
- Balanced Dual‑Core Performance: Dual 32‑bit Cortex‑A9 cores at 1.0 GHz provide multi‑threaded processing for responsive embedded applications.
- Broad Display and Multimedia Support: Hardware graphics acceleration plus HDMI, LVDS and MIPI/DSI support enable rich UIs and high‑definition video output.
- Comprehensive Connectivity: Integrated Gigabit Ethernet, SATA 3 Gbps, multiple USB ports and CAN simplify system design and reduce external components.
- Integrated Security Features: Built‑in TrustZone, A‑HAB and CAAM provide layered security primitives for secure boot and trusted operations.
- Memory Flexibility: Support for LPDDR2, DDR3L and DDR3 allows selection of memory technology based on system cost and performance needs.
- Platform Scalability: Part of the i.MX 6 series, offering a scalable multicore architecture and companion power management support described in the product literature.
Why Choose MCIMX6DP5EYM1AA?
The MCIMX6DP5EYM1AA delivers a feature-rich embedded processor option that balances compute performance, multimedia capability and extensive I/O in a compact 624‑FCPBGA package. Its dual Cortex‑A9 cores, graphics acceleration and broad interface set make it well suited for designs that require responsive user interfaces, video playback and robust connectivity.
As part of the i.MX 6 family and with documented companion power management support, this device is positioned for designs where scalability, integration and long‑term platform continuity are important considerations.
Request a quote or submit an inquiry to receive pricing and availability information for MCIMX6DP5EYM1AA and to discuss your design requirements.
