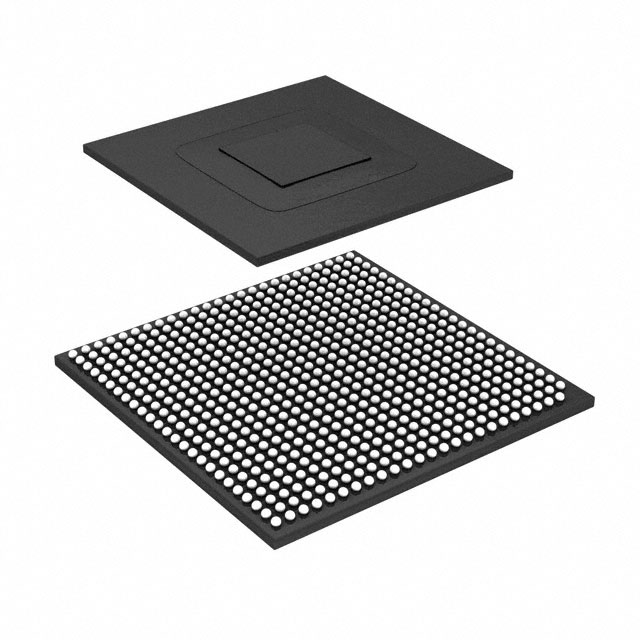

MCIMX6S6AVM08AD
| Part Description |
ARM® Cortex®-A9 Microprocessor IC i.MX6S 1 Core, 32-Bit 800MHz 624-MAPBGA (21x21) |
|---|---|
| Quantity | 870 Available (as of October 9, 2026) |
| Product Category | Microprocessors |
|---|---|
| Part Series | i.MX 6S |
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 18 Weeks |
| Datasheet |
Specifications & Environmental
| Co-Processors/DSP | Multimedia; NEON™ SIMD | Core Processor | ARM® Cortex®-A9 | Device Package | 624-MAPBGA (21x21) | ||
|---|---|---|---|---|---|---|---|
| Display & Interface Controllers | Keypad, LCD | ECCN | 5A992C | Ethernet | 10/100/1000Mbps (1) | ||
| Graphics Acceleration | Yes | HTS Code | 8542.31.0001 | Moisture Sensitivity Level | 3 (168 Hours) | ||
| Mounting Method | Surface Mount | Mounting Type | Surface Mount | Number of Cores/Bus Width | 1 Core, 32-Bit | ||
| Operating Temperature | -40°C ~ 125°C (TJ) | Package / Case | 624-LFBGA | RAM Controllers | LPDDR2, LVDDR3, DDR3 | ||
| REACH Compliance | REACH Unaffected | RoHS Compliance | ROHS3 Compliant | Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | ||
| Speed | 800MHz | Supplier Device Package | 624-MAPBGA (21×21) | USB | USB 2.0 + PHY (4) | ||
| Voltage – I/O | 1.8V, 2.5V, 2.8V, 3.3V |
Overview of MCIMX6S6AVM08AD – IC MPU I.MX6S 800MHZ 624MAPBGA
The MCIMX6S6AVM08AD is an NXP Semiconductors i.MX 6S series microprocessor featuring a single ARM® Cortex®-A9 core running at up to 800 MHz. It targets embedded industrial and medical applications that need a compact, industrial-grade MPU with integrated multimedia and peripheral support.
Built for graphically rich, responsive user interfaces and connected embedded systems, this device combines a 32-bit Cortex-A9 core with on-chip graphics/video engines, multiple high-speed interfaces, and extensive security features—delivered in a 624-ball MAPBGA 21 × 21 mm package and rated for industrial temperature operation.
Key Features
- Processor Core — Single ARM® Cortex®-A9 32-bit core operating up to 800 MHz, suitable for embedded control and UI tasks.
- Memory Interfaces — Integrated memory controllers for LPDDR2, LVDDR3, and DDR3 providing flexible system memory options.
- Graphics and Video — On-chip 2D/3D graphics acceleration and series-level support for 1080p video processing to enable rich user interfaces.
- Connectivity — Gigabit Ethernet (10/100/1000 Mbps, 1 port) plus multiple USB 2.0 ports with PHY (4) and CAN for automotive-style network integration.
- Security and Boot — Hardware security capabilities including ARM TrustZone, boot security, cryptography, secure fusebox, secure JTAG, secure memory, secure RTC and tamper detection to support protected boot and runtime operation.
- Package and Mounting — 624-ball MAPBGA (21 × 21 mm) supplier package, corresponding 624-LFBGA case; surface-mount device for compact PCB integration.
- Industrial Qualification & Temperature — Qualified for industrial use with an operating temperature range of −40 °C to 125 °C.
- Integration — Integrated power management and multimedia co-processors (NEON™ SIMD and multimedia DSP) as noted in device documentation to reduce external component count.
- Standards Compliance — RoHS compliant.
Typical Applications
- Industrial HMI and Control — Drives graphically rich human-machine interfaces and real-time control tasks while operating across industrial temperature ranges.
- Medical Devices — Supports responsive GUIs and secure boot/runtime features suitable for embedded medical equipment requiring industrial qualification.
- Connected Embedded Systems — Provides gigabit Ethernet, multiple USB ports, and CAN connectivity for networked instrumentation and gateway applications.
- Multimedia Interfaces — Enables 2D/3D-accelerated displays and 1080p-capable video processing for rich media kiosks and visual information systems.
Unique Advantages
- Compact, production-ready package: 624-ball MAPBGA (21 × 21 mm) surface-mount footprint simplifies PCB layout for space-constrained embedded designs.
- Industrial operating range: −40 °C to 125 °C qualification supports deployment in demanding ambient conditions.
- Multimedia-capable single-core MPU: 800 MHz Cortex-A9 core combined with graphics/video engines and NEON SIMD for responsive UIs with reduced external processing needs.
- Broad peripheral set: Gigabit Ethernet, four USB 2.0 ports with PHY, and CAN enable flexible connectivity options without adding controllers.
- Hardware security stack: Multiple security mechanisms (ARM TZ, secure JTAG, secure fusebox, cryptography, secure RTC, tamper detection) help protect boot and runtime integrity.
- Flexible memory support: Integrated controllers for LPDDR2, LVDDR3 and DDR3 allow designers to choose memory types that match performance and cost targets.
Why Choose MCIMX6S6AVM08AD?
The MCIMX6S6AVM08AD positions itself as a compact, industrial-grade MPU that balances processing performance and multimedia capability with a broad set of integrated interfaces and security features. It is suited to embedded designers building industrial HMI, medical devices, and connected appliances that require a single 32-bit Cortex-A9 core running up to 800 MHz together with graphics acceleration and robust connectivity.
Backed by NXP Semiconductors documentation and industrial qualification, this i.MX 6S series device offers a scalable foundation for product lines where temperature range, on-chip integration, and secure boot/runtime operation are key considerations.
Request a quote or submit a purchase inquiry to begin evaluation of the MCIMX6S6AVM08AD for your next embedded design.
