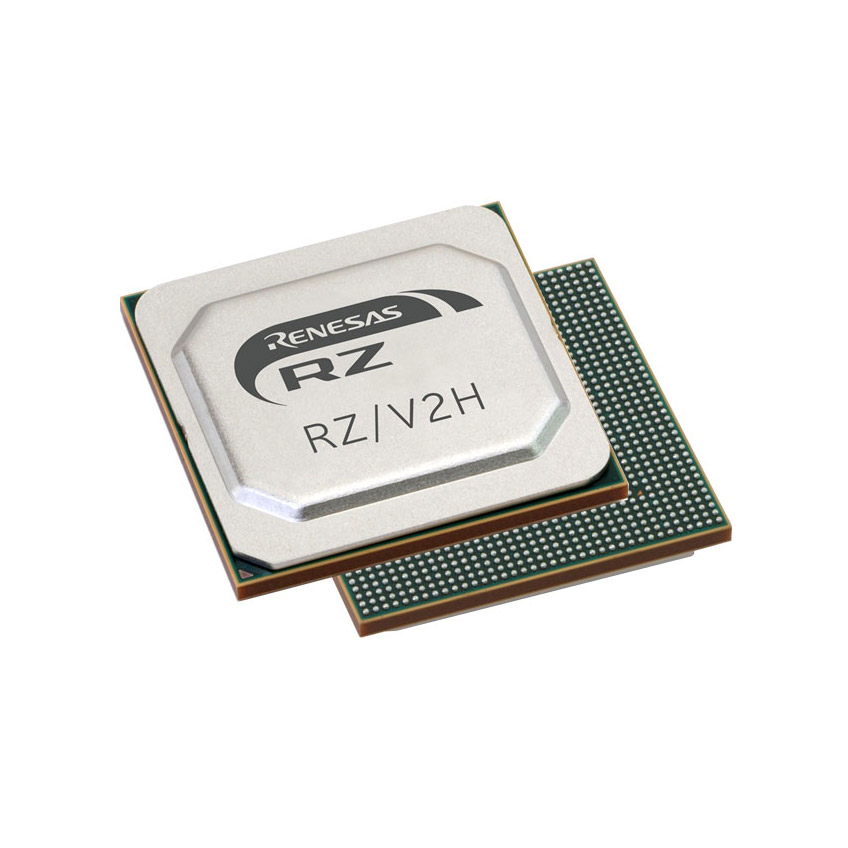

R9A09G057H42GBG#AC0

The R9A09G057H42GBG#AC0 is a Renesas microprocessor IC from the R9A09G057 series designed for embedded applications. It is based on ARM® Cortex®-A53 architecture with a 64-bit core configuration and a maximum operating speed of 1.8 GHz.

Targeted at industrial embedded markets, this device integrates multimedia DSP/NEON SIMD acceleration, a broad set of display and I/O interfaces, and on-chip security primitives to support connected, multimedia-capable industrial designs.

Key Features

• Core and Performance  ARM® Cortex®-A53 cores, 2 cores, 64-bit, running up to 1.8 GHz for general-purpose embedded compute.
• Multimedia Acceleration  Includes Multimedia co-processor support and NEON™ SIMD for optimized media and signal processing workloads.
• Memory Support  LPDDR4 RAM controller support for high-bandwidth system memory.
• Display Interfaces  Integrated display controllers including DisplayPort (DP), HDMI and LCD support for advanced HMI and visualization systems.
• High-Speed I/O  Includes one USB 3.1 port and one Gigabit Ethernet (GbE) interface for high-throughput peripheral and network connectivity.
• Security Features  On-chip security primitives including AES, ARC4, RSA, SHA-224, SHA-256 and a True Random Number Generator (TRNG) for secure boot and data protection tasks.
• Industrial Qualification & Temperature  Industrial qualification with an operating temperature range from −40 °C to 125 °C for deployment in demanding environments.
• Package and Mounting  841-FBGA package (15 × 15 mm) delivered in a surface-mount form factor suitable for compact board designs.
• Regulatory Compliance  RoHS compliant.

Typical Applications

• Industrial Automation  Use for control and visualization tasks where industrial temperature operation and secure communications are required.
• Human–Machine Interfaces (HMI)  Drive advanced displays and graphics using DP, HDMI or direct LCD interfaces for operator panels and kiosks.
• Connected Multimedia Devices  Leverage multimedia DSP/NEON acceleration along with USB 3.1 and GbE for streaming and media handling in embedded systems.

Unique Advantages

• Integrated Display and I/O Suite: Combines DP, HDMI, LCD, USB 3.1 and GbE to reduce external interface components and simplify board-level integration.
• Security-Ready Hardware: Built-in AES, RSA, SHA-224/256 and TRNG support on-chip cryptographic functions to assist secure system designs.
• Industrial-Grade Operation: Qualification for industrial use and an extended operating temperature range support deployment in harsh environments.
• High-Bandwidth Memory Support: LPDDR4 controller support enables responsive system performance for multimedia and data-intensive tasks.
• Compact, High-Density Package: 841-FBGA (15 × 15 mm) package balances pin count and PCB area for space-constrained embedded designs.
• Standards-Based Processor Core: ARM® Cortex®-A53 64-bit cores and NEON SIMD provide a well-understood platform for software development and optimization.

Why Choose R9A09G057H42GBG#AC0?

R9A09G057H42GBG#AC0 positions itself as a compact, industrially qualified microprocessor platform that combines 64-bit ARM® Cortex®-A53 compute, multimedia acceleration, comprehensive display/I/O connectivity and hardware security features. Its specification set is tailored to embedded designs that require multimedia capability, secure communications and robust operation across a wide temperature range.

Designed and manufactured by Renesas, this part is suitable for engineers developing industrial HMI, connected multimedia appliances and other embedded systems that demand integrated interfaces, security primitives and industrial-grade reliability.

Request a quote or submit a procurement inquiry for R9A09G057H42GBG#AC0 to receive pricing and availability information for your design and production planning needs.
