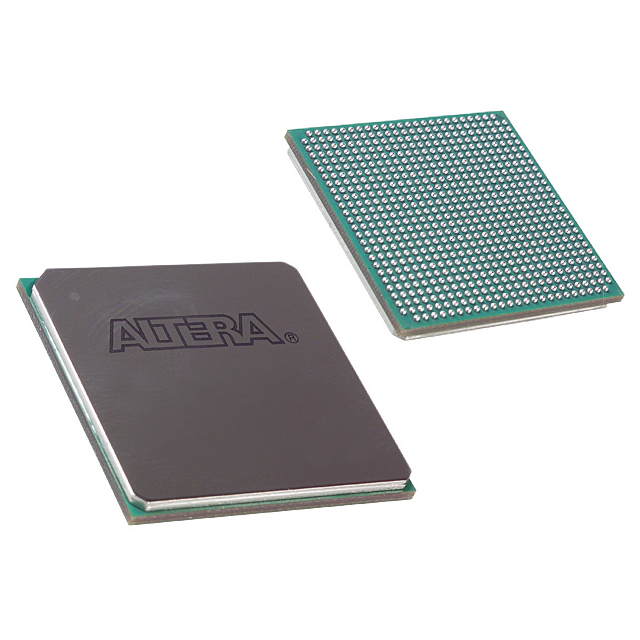

10AX032E2F27E1HG
| Part Description |
Arria 10 GX Field Programmable Gate Array (FPGA) IC 240 21040128 320000 672-BBGA, FCBGA |
|---|---|
| Quantity | 587 Available (as of May 5, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Intel |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 16 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 672-FBGA (27x27) | Grade | Extended | Operating Temperature | 0°C – 100°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 672-BBGA, FCBGA | Number of I/O | 240 | Voltage | 870 mV - 980 mV | ||
| Mounting Method | Surface Mount | RoHS Compliance | RoHS Compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 119900 | Number of Logic Elements/Cells | 320000 | ||
| Number of Gates | N/A | ECCN | 5A002A1 | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 21040128 |
Overview of 10AX032E2F27E1HG – Arria 10 GX Field Programmable Gate Array (FPGA), 672‑BBGA FCBGA
The 10AX032E2F27E1HG is an Intel Arria 10 GX series FPGA in a 672‑BBGA/FCBGA package designed for mid-range, performance‑ and power‑sensitive applications. It combines a high logic element count, substantial embedded RAM, and broad I/O in a surface‑mount package to address communications, broadcast, computing, and other system acceleration tasks.
Built on Intel's Arria 10 device family, this device targets high‑performance, power‑efficient midrange designs and is supplied in an extended grade with an operating range of 0 °C to 100 °C.
Key Features
- Logic Capacity — 320,000 logic elements for complex digital designs and algorithm implementation.
- Embedded Memory — 21,040,128 total RAM bits to support buffering, packet processing, and on‑chip data structures.
- I/O and Packaging — 240 I/O pins in a surface‑mount 672‑BBGA, FCBGA package; supplier package listed as 672‑FBGA (27×27).
- Power Supply — Core voltage range of 870 mV to 980 mV to match system power rails and power‑management schemes.
- Device Family Capabilities — Arria 10 architecture features such as adaptive logic modules, variable‑precision DSP blocks, embedded memory blocks, and clock networks with PLL clock sources.
- High‑Speed Protocol Support — Device family documentation includes support for PCIe Gen1/Gen2/Gen3 hard IP and enhanced PCS hard IP for Interlaken and 10 Gbps Ethernet.
- Transceivers and Timing — Low‑power serial transceivers, fractional synthesis and I/O PLLs, and comprehensive clock networks are part of the Arria 10 device capability set.
- Regulatory — RoHS compliant.
Typical Applications
- Wireless Infrastructure — Channel and switch cards or mobile backhaul applications that require programmable logic and on‑chip memory for signal processing and data aggregation.
- Wireline Networking — 40G/100G muxponders, transponders, and line cards where FPGA logic, embedded memory, and protocol hard IP accelerate packet and line‑rate processing.
- Broadcast and Pro AV — Studio switching, transport and video processing applications benefitting from high logic density and ample on‑chip RAM.
- Computing and Storage — Server acceleration and flash cache roles where programmable logic and DSP resources are used for offload and acceleration tasks.
Unique Advantages
- High logic and memory density: 320,000 logic elements combined with over 21 million RAM bits enables complex algorithms and large buffering on‑chip, reducing external memory dependency.
- Broad I/O in a compact package: 240 I/Os in a 672‑BBGA/FCBGA surface‑mount package supports rich peripheral and memory interfacing while keeping board footprint efficient.
- Arria 10 architecture benefits: Adaptive logic modules, variable‑precision DSP blocks, and comprehensive clocking resources provide flexible building blocks for signal processing and timing‑critical designs.
- Protocol and transceiver support: Family‑level support for PCIe Gen1/Gen2/Gen3 and high‑speed Ethernet/Interlaken hard IP simplifies implementation of common high‑speed interfaces.
- Power management compatibility: Core supply range of 870 mV–980 mV aligns with modern power rails for efficient system integration.
- Extended grade operating range: Specified operation from 0 °C to 100 °C for applications requiring extended commercial temperature performance.
Why Choose 10AX032E2F27E1HG?
The 10AX032E2F27E1HG places the Arria 10 GX device family capabilities into a package suitable for midrange systems that require a balance of performance, on‑chip memory, and flexible I/O. Its combination of 320,000 logic elements, 21,040,128 bits of embedded RAM, and family features such as DSP blocks and hardened protocol IP make it well suited for communications, broadcast, compute acceleration, and storage interface applications.
Supplied in an extended thermal grade and RoHS‑compliant package, this Arria 10 GX FPGA is appropriate for designs that demand scalable programmable logic capacity with the documented Arria 10 feature set and Intel device family resources.
Request a quote or submit an inquiry to receive pricing and availability for the 10AX032E2F27E1HG.
