10M02DCV36C7G

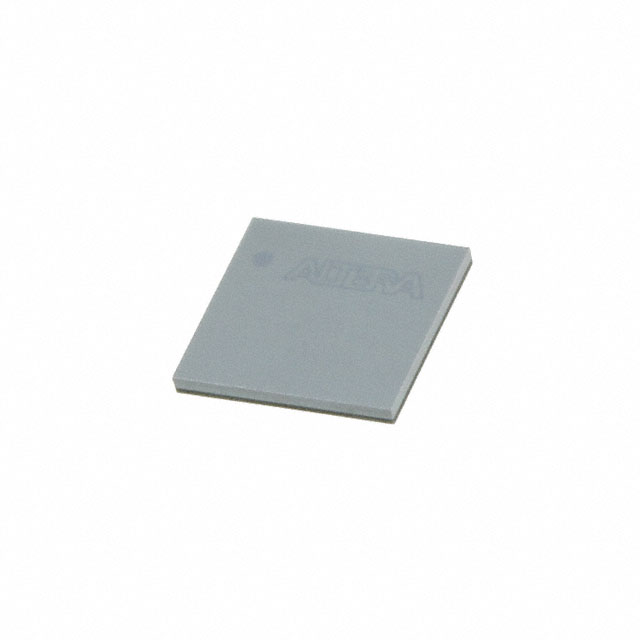

The 10M02DCV36C7G is an Intel MAX® 10 Field Programmable Gate Array (FPGA) in a compact 36‑UFBGA/WLCSP package. It provides 2,000 logic elements, 125 logic array blocks (LABs), and 110,592 total RAM bits for integrated programmable logic and on‑chip memory.

Configured for commercial‑grade applications, this device offers 27 I/O, a low‑voltage core supply range of 1.15–1.25 V, surface‑mount packaging (supplier package: 36‑VBGA, 3.47 × 3.4 mm), an operating range of 0 °C to 85 °C, and RoHS compliance.

Key Features

• Logic Capacity — 2,000 logic elements and 125 logic array blocks (LABs) provide programmable logic resources for control and glue‑logic functions.
• On‑Chip Memory — 110,592 total RAM bits available for data buffering, small FIFOs, and state storage.
• I/O — 27 general‑purpose I/O pins for peripheral interfacing and signal routing.
• Power — Core supply range of 1.15 V to 1.25 V to support low‑voltage system designs.
• Package & Mounting — 36‑UFBGA, WLCSP package (supplier package: 36‑VBGA, 3.47 × 3.4 mm); surface‑mount for compact board layouts.
• Temperature & Grade — Commercial grade device with an operating temperature range of 0 °C to 85 °C and supported speed grade -C7.
• Environmental Compliance — RoHS compliant.

Typical Applications

• Embedded Control — Moderate logic capacity and on‑chip RAM make the device suitable for control and coordination tasks in commercial embedded systems.
• Peripheral and Interface Logic — 27 I/O pins provide connectivity for signaling, protocol bridging, and glue‑logic between components.
• Data Buffering and State Management — On‑chip RAM supports buffering, small FIFO implementations, and local state storage.
• Compact Board Designs — WLCSP/36‑VBGA packaging enables space‑constrained PCB layouts where small footprint is required.

Unique Advantages

• Compact integration: The 36‑UFBGA / WLCSP (36‑VBGA, 3.47 × 3.4 mm) package reduces PCB area for space‑limited designs.
• Balanced logic and memory: 2,000 logic elements paired with 110,592 RAM bits lets you implement both logic functions and local data storage on a single device.
• Low‑voltage operation: 1.15–1.25 V core supply supports designs targeting lower power domains.
• Commercial deployment ready: Rated for 0 °C to 85 °C operation and provided as a commercial‑grade (-C7) device.
• RoHS compliant: Meets environmental restrictions for lead‑free manufacturing processes.

Why Choose 10M02DCV36C7G?

The 10M02DCV36C7G positions itself as a compact, commercially graded FPGA option that combines a practical logic element count with substantial on‑chip RAM and a small WLCSP footprint. Its 27 I/O and low‑voltage core range make it appropriate for embedded designs that require integrated logic, buffering, and a minimal PCB area.

This device is well suited to teams and projects that need a commercially rated FPGA with verified electrical characteristics and environmental compliance, providing a balance of integration and predictable operational limits for commercial applications.

Request a quote or submit an inquiry to receive pricing and availability information for the 10M02DCV36C7G.
