10M04SAU324I7G

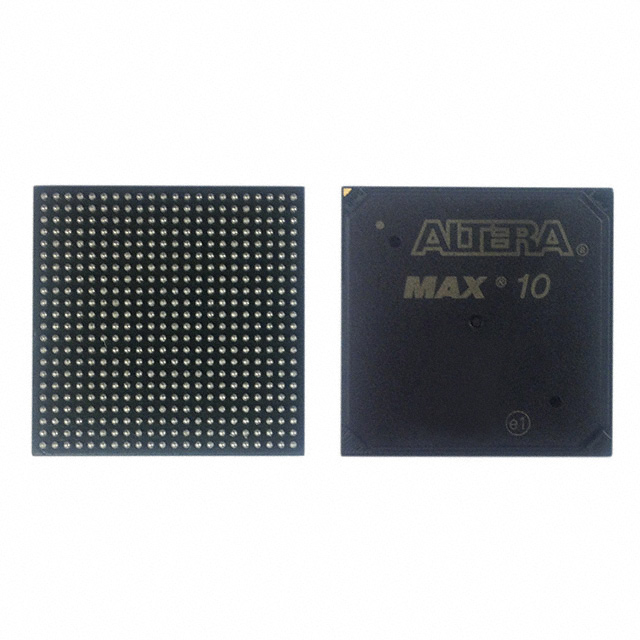

The 10M04SAU324I7G is an Intel MAX® 10 field programmable gate array (FPGA) IC in a 324-LFBGA (15×15) package. It provides 4,000 logic elements, 193,536 bits of on-chip RAM, and up to 246 I/O pins in a surface-mount BGA form factor.

With an industrial grade specification and an operating temperature range of −40 °C to 100 °C, the device is suitable for designs that require moderate logic density, substantial on-chip memory, and a broad I/O count while operating from a 2.85 V to 3.465 V supply.

Key Features

• Logic Capacity – 4,000 logic elements to implement custom digital logic and control functions.
• On‑Chip Memory – 193,536 total RAM bits for buffering, state machines, and small data storage without external memory.
• I/O Density – Up to 246 I/O pins to support multiple external interfaces and peripherals.
• Package – 324‑LFBGA (324‑UBGA, 15×15) surface-mount package for compact board integration.
• Power Supply – Operates from 2.85 V to 3.465 V, enabling compatibility with a range of system voltage rails.
• Industrial Grade – Specified as Industrial grade with an operating temperature range of −40 °C to 100 °C for extended environmental tolerance.
• RoHS Compliant – Manufactured in compliance with RoHS requirements.

Typical Applications

• Industrial Control Systems – Deploy logic, I/O aggregation, and on-chip memory in controls that require an industrial temperature range.
• Embedded Control and Prototyping – Implement custom control logic and state machines using 4,000 logic elements and internal RAM for rapid development.
• I/O‑Intensive Interfaces – Consolidate multiple peripheral interfaces and sensors with up to 246 I/O pins in a single FPGA package.

Unique Advantages

• Balanced Logic and Memory – 4,000 logic elements combined with 193,536 RAM bits provide a strong balance for control-oriented applications without immediate need for external memory.
• High I/O Count – 246 I/O pins reduce the need for external multiplexing and support complex board-level connectivity.
• Industrial Temperature Range – Rated from −40 °C to 100 °C to address applications that operate across wide temperature environments.
• Compact BGA Package – 324‑LFBGA (15×15) package enables dense PCB layouts while delivering substantial I/O and logic capacity.
• Broad Supply Range – 2.85 V to 3.465 V supply compatibility for flexible integration with common system rails.
• Standards Compliance – RoHS compliance supports environmentally conscious product designs.

Why Choose 10M04SAU324I7G?

The 10M04SAU324I7G positions itself as a compact, industrial‑grade MAX® 10 FPGA option that combines moderate logic capacity, significant on‑chip RAM, and a high I/O count in a 324‑LFBGA package. Its specifications make it well suited to embedded and control applications that require reliable operation across −40 °C to 100 °C and compatibility with 2.85 V–3.465 V supply domains.

As part of the Intel MAX® 10 device family, this part is documented within the MAX® 10 FPGA device datasheet, enabling engineers to evaluate electrical, configuration, and timing characteristics for system integration and long‑term design planning.

Request a quote or submit an inquiry to get pricing and availability for the 10M04SAU324I7G.
