5CEFA7M15I7N

The 5CEFA7M15I7N is an Intel Cyclone V E series FPGA supplied in a 484-LFBGA (484-MBGA 15×15) surface-mount package and specified for industrial-grade applications. This FPGA integrates a large programmable fabric with abundant embedded memory and I/O, targeting industrial, wireless and wireline, and military applications that require a balance of logic capacity, on-chip RAM, and robust operating range.

Built around the Cyclone V family architecture, the device emphasizes integration and power-efficient operation for designs that need substantial logic resources, deterministic I/O, and deployed-environment temperature support.

Key Features

• Logic Capacity  Approximately 149,500 logic elements, providing broad implementation capacity for complex digital designs.
• Embedded Memory  Approximately 7.88 Mbits of on-chip RAM to support buffers, FIFOs, and local storage without external memory in many use cases.
• I/O Count  240 user I/O pins for connecting peripherals, sensors, and external interfaces.

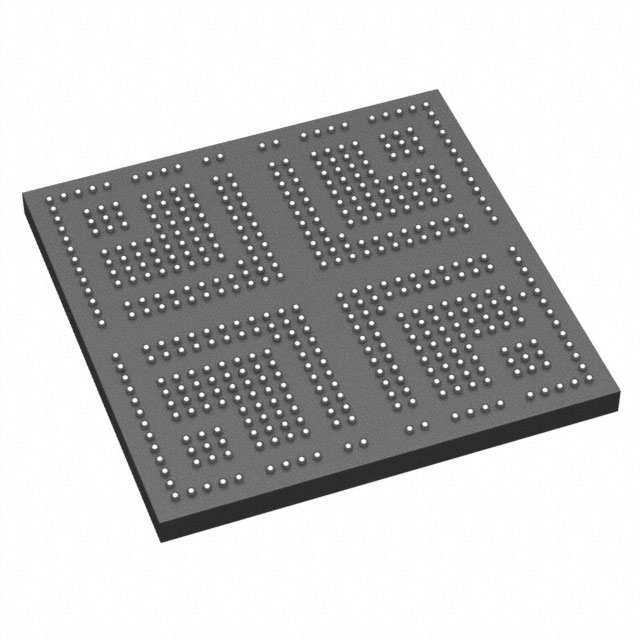

• Packaging & Mounting  484-LFBGA (supplier package 484-MBGA 15×15) in a surface-mount form factor for high-density board layouts.
• Voltage Supply  Core voltage range specified at 1.07 V to 1.13 V for stable low-voltage operation consistent with the Cyclone V family.
• Operating Temperature  Industrial temperature grade with a specified range of −40 °C to 100 °C for deployed environments.
• Series-Level Architecture  Cyclone V family features such as an enhanced 8-input adaptive logic module (ALM), variable-precision DSP blocks, hard memory controllers, and integrated transceivers are part of the Cyclone V device overview for the series.
• Regulatory Status  RoHS-compliant.

Typical Applications

• Industrial Control Systems  Use the device for real-time control, I/O aggregation, and protocol bridging where industrial temperature range and robust logic resources are required.
• Wireless and Wireline Equipment  Leverage the Cyclone V series’ integrated transceivers and memory controllers for packet processing, interface bridging, and timing-critical data paths.
• Defense and Military Systems  Applicable where industrial-grade temperature capability and a high count of logic elements and I/O are needed for custom signal processing and control logic.
• SoC and Embedded Processing Platforms  Suitable for designs that integrate FPGA fabric with hard IP blocks from the Cyclone V series to consolidate functions and reduce external component count.

Unique Advantages

• High Logic Density: Approximately 149,500 logic elements enable substantial on-chip implementation of custom logic and accelerators.
• Significant On-Chip RAM: Roughly 7.88 Mbits of embedded memory reduces reliance on external memory for many buffering and storage needs.
• Robust I/O and Integration: 240 I/O pins and series-level transceiver and memory-controller features support complex interfacing and high-bandwidth connectivity.
• Industrial Temperature Range: Rated from −40 °C to 100 °C to meet deployment requirements in demanding environmental conditions.
• Compact, Surface-Mount Package: 484-LFBGA (15×15) format offers a dense footprint for space-constrained PCB designs.
• RoHS-Compliant: Meets RoHS requirements for environmentally conscious designs and supply chains.

Why Choose 5CEFA7M15I7N?

The 5CEFA7M15I7N pairs a large programmable fabric with substantial embedded memory and a high I/O count in a compact industrial-grade package. It is well suited for engineers who need to consolidate functions—such as protocol handling, custom logic acceleration, and on-chip buffering—into a single FPGA while maintaining deployment capability across a broad temperature range.

As a Cyclone V E series device, it benefits from the family’s architectural features (enhanced ALMs, DSP resources, hard memory controllers, and serial transceivers) to help reduce external component count and simplify system design while supporting demanding communication and control applications.

Request a quote or submit a quote to begin procurement for the 5CEFA7M15I7N and to evaluate availability and lead times for your project.
