5CGXFC4C6M13C6N

The 5CGXFC4C6M13C6N is an Intel Cyclone® V GX field-programmable gate array (FPGA) in a 383-TFBGA (13×13) package, offering 50,000 logic elements and a rich I/O complement. This GX-class Cyclone V device integrates high-performance FPGA fabric with embedded memory and transceiver-capable features intended for cost-sensitive, bandwidth-focused designs.

Designed for applications such as industrial control, wireless and wireline communications, and military systems, the device delivers a balance of integration and power efficiency. It operates on a core supply range of 1.07 V to 1.13 V and a commercial temperature grade of 0 °C to 85 °C.

Key Features

• Logic Capacity — 50,000 logic elements providing substantial programmable logic resources for mid-density designs.
• Embedded Memory — Approximately 2.86 Mbits of on-chip RAM (2,862,080 bits) to support data buffering, frame storage, and local scratch memory.
• I/O Density — 175 user I/O pins suitable for wide peripheral interfacing and board-level connectivity.
• Adaptive Logic Module (ALM) — Cyclone V family ALM architecture (enhanced 8-input ALM) for flexible logic mapping and efficient resource use.
• Transceiver and System Integration — GX-class device characteristics include integrated transceiver-capable features and hard memory-controller capabilities as described in the Cyclone V device overview.
• Power — Low-voltage core operation with a specified supply range of 1.07 V to 1.13 V, supporting low-power system designs.

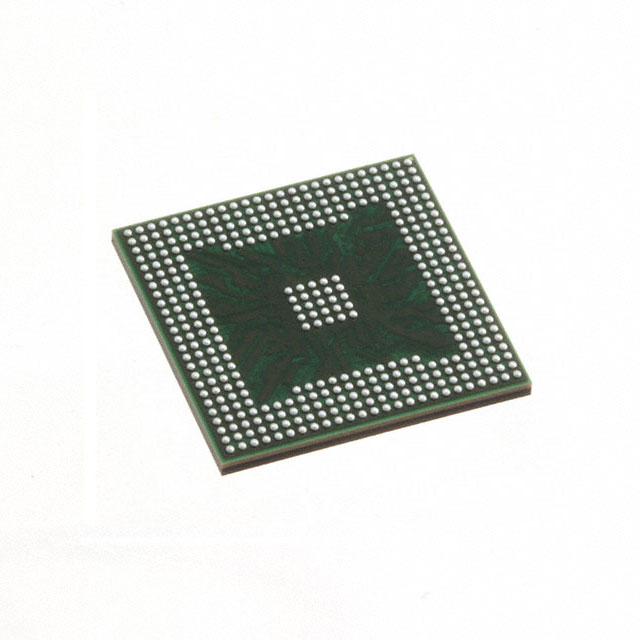

• Package & Mounting — 383-TFBGA (supplier package: 383-MBGA 13×13) in a surface-mount form factor for compact board layouts.
• Commercial Grade — Specified for 0 °C to 85 °C operating temperature suitable for commercial applications.
• RoHS Compliance — Device is RoHS compliant.

Typical Applications

• Industrial Control — Implement real-time motor control, sensor interfacing, and deterministic I/O aggregation using the device’s logic capacity and ample I/O.
• Wireless & Wireline Communications — Use embedded memory and transceiver-capable architecture for protocol processing, framing, and interface bridging in communications equipment.
• Defense & Military Systems — Leverage programmable logic and embedded memory for custom signal processing, interface adaptation, and system glue logic in military platforms.
• Embedded SoC and Accelerator Functions — Offload compute kernels or implement custom accelerators that require local RAM and sizable programmable logic.

Unique Advantages

• Substantial Logic Resource: 50,000 logic elements enable mid-range integration of custom logic, reducing the need for multiple discrete components.
• On-Chip Memory: Approximately 2.86 Mbits of embedded RAM reduces external memory dependence and improves latency for local data paths.
• Flexible I/O: 175 I/O pins provide broad connectivity options for sensors, peripherals, and board-level interfaces.
• Low-Voltage Operation: Narrow core-voltage range (1.07–1.13 V) supports power-optimized designs and predictable power budgeting.
• Compact Packaging: 383-TFBGA (13×13) surface-mount package supports high-density board layouts while maintaining thermal and mechanical compatibility with standard assembly.
• Commercial Readiness: Specified 0 °C to 85 °C operating temperature and RoHS compliance make the device suitable for commercial product lines.

Why Choose 5CGXFC4C6M13C6N?

The 5CGXFC4C6M13C6N Cyclone V GX FPGA combines a mid-density logic fabric with meaningful on-chip memory and broad I/O in a compact 383-TFBGA package. Its low-voltage operation and Cyclone V family architecture provide a strong foundation for designers targeting cost- and power-sensitive applications that still require programmable flexibility and embedded memory.

This device is well suited to teams building industrial systems, communications equipment, or defense platforms that need a balance of integration, predictable power characteristics, and a commercially rated temperature range. The Cyclone V family documentation outlines architecture advantages such as ALM structure and embedded memory types that can help accelerate design mapping and optimization.

If you would like pricing, availability, or a formal quote for 5CGXFC4C6M13C6N, submit a quote request or sales inquiry and a representative will provide current lead times and ordering information.
