5SGXEBBR2H43I2L

The 5SGXEBBR2H43I2L is a Stratix V GX field programmable gate array (FPGA) IC from Intel, offered in an industrial temperature grade. It delivers very high programmable logic capacity, substantial embedded memory, and a large I/O complement for densely integrated, industrial-grade designs.

Designed for applications that require significant on-chip resources and system integration, this device pairs core logic density with broad I/O and industrial temperature operation to support demanding embedded and infrastructure use cases.

Key Features

• Core Logic — 952,000 logic elements for high-density programmable logic and complex system integration.
• Embedded Memory — Approximately 53.2 Mbits of on-chip RAM to support large buffering, data storage, and state-machine implementations.
• I/O — 600 general-purpose I/O pins to enable broad peripheral, sensor, and interface connectivity.
• Power — Core supply range specified at 820 mV to 880 mV for the device core.

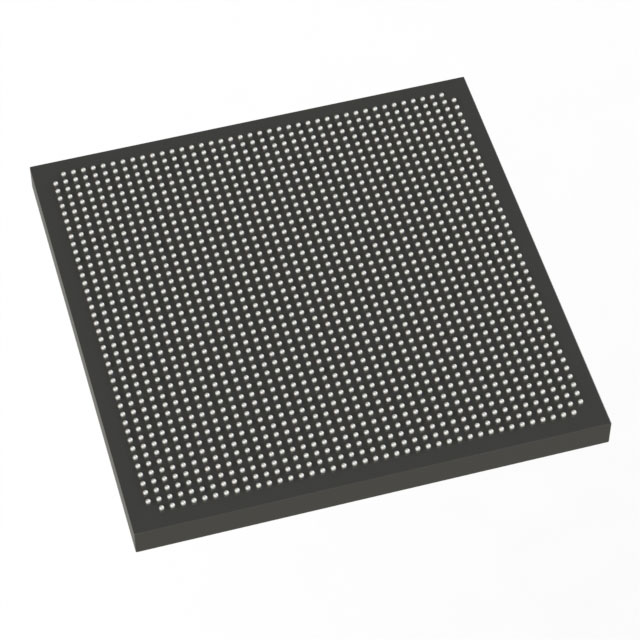

• Package and Mounting — 1760-BBGA FCBGA package (supplier device package: 1760-HBGA, 45×45) with surface-mount mounting for high-pin-count board integration.
• Temperature and Grade — Industrial grade with an operating temperature range of −40 °C to 100 °C for extended-environment deployment.
• Compliance — RoHS compliant.
• Documentation — Device is covered by the Stratix V device datasheet, which includes electrical and switching characteristics for Stratix V devices.

Typical Applications

• Industrial Automation — Industrial temperature rating and abundant I/O make the device suitable for control logic, sensor aggregation, and real-time processing in factory and plant environments.
• Communications and Networking — High logic capacity and large embedded memory enable packet processing, protocol offload, and configurable interface logic for infrastructure equipment.
• High-Density Embedded Systems — Use the extensive logic elements and on-chip RAM to consolidate functions and reduce external component count in complex embedded designs.
• Custom Accelerators and Prototyping — Large programmable fabric supports hardware acceleration, algorithm development, and system prototyping where significant on-chip resources are required.

Unique Advantages

• High Logic Density: 952,000 logic elements provide the capacity to implement complex state machines, DSP pipelines, and custom compute blocks on a single device.
• Substantial On-Chip Memory: Approximately 53.2 Mbits of embedded RAM reduces reliance on external memory and improves latency for buffering and streaming data.
• Extensive System I/O: 600 available I/Os simplifies integration with peripherals, sensors, and high-pin-count interfaces without extensive external multiplexing.
• Industrial Temperature Operation: Rated for −40 °C to 100 °C to support reliable operation in harsh or temperature-variable environments.
• Compact, High-Pin-Count Packaging: 1760-ball BGA/FCBGA package (supplier package 1760-HBGA, 45×45) enables dense board-level integration for space-constrained systems.
• Vendor Documentation Support: Backed by the Stratix V device datasheet for electrical and switching characteristics to aid design and verification.

Why Choose 5SGXEBBR2H43I2L?

The 5SGXEBBR2H43I2L positions itself as a high-capacity, industrial-grade FPGA option within the Stratix V GX family, combining nearly one million logic elements, tens of megabits of embedded RAM, and 600 I/Os in a single surface-mount FCBGA package. Its specified core voltage range and industrial operating temperature make it suitable for demanding embedded and infrastructure applications where integration density and environmental robustness matter.

This device is a fit for engineering teams building systems that require on-chip scale, flexible I/O connectivity, and qualification for extended temperature ranges, while leveraging the Stratix V family documentation for electrical and switching characteristics during design and validation.

If you would like pricing, availability, or a formal quote for 5SGXEBBR2H43I2L, submit a request to receive further purchasing and configuration information.
