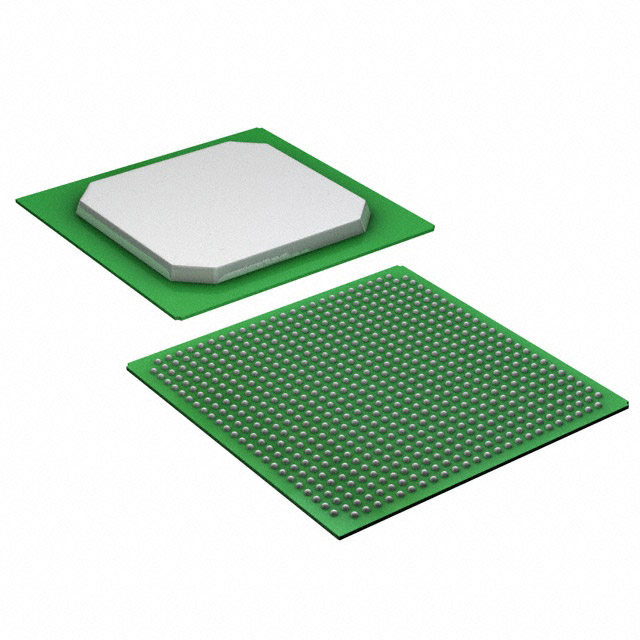

EP1S25B672C6

The EP1S25B672C6 is an Intel Stratix® Field Programmable Gate Array (FPGA) provided in a 672-ball BGA (35×35) package for surface-mount assembly. This commercial-grade device delivers a combination of substantial logic capacity, on-chip memory, and a high I/O count for complex digital designs.

Built on the Stratix device family architecture, the device targets applications that require integrated logic, embedded RAM, advanced I/O capability and clocking resources as described in the Stratix device handbook.

Key Features

• Core Logic — 25,660 logic element cells to implement custom digital functions and finite-state logic.
• Embedded Memory — Approximately 1.94 Mbits of on-chip RAM for data buffering, FIFOs, and local storage.
• I/O Capacity — 473 available I/O pins to support wide parallel interfaces and multi-channel connectivity.
• Clocking and Timing — Stratix family documentation includes advanced PLLs and clock network support for flexible timing architectures.
• DSP and Arithmetic Support — Family-level features describe multiplier blocks and DSP block interfaces suitable for signal processing tasks.
• Advanced I/O Features — Device family documentation references Double-Data Rate I/O, high-speed differential I/O support and multi-volt I/O interfacing for diverse signaling requirements.
• Package & Mounting — 672-BBGA (35×35) supplier device package with surface-mount mounting type.
• Power & Operating Range — Core voltage supply range of 1.425 V to 1.575 V and commercial operating temperature range of 0 °C to 85 °C.
• Environmental Compliance — RoHS compliant.

Typical Applications

• Communications & Networking — Leverages high I/O density and advanced I/O support to implement protocol interfaces, packet processing, and line-card logic.
• Digital Signal Processing — Multiplier blocks, DSP interfaces, and on-chip RAM support streaming algorithms, filtering, and real-time data manipulation.
• High-speed Data Acquisition — Large I/O count, DDR I/O capability and external RAM interfacing make the device suitable for multi-channel data capture and buffering.
• Embedded Compute & Prototyping — Significant logic element count and embedded memory enable hardware acceleration and rapid implementation of custom logic blocks.

Unique Advantages

• Substantial On-Chip Resources: 25,660 logic elements paired with approximately 1.94 Mbits of embedded memory reduce external component needs and simplify designs.
• High I/O Flexibility: 473 I/O pins provide broad interface options for parallel data paths, multi-channel sensors, or peripheral expansion.
• Advanced Family-Level Capabilities: Stratix device handbook details PLLs, high-speed differential I/O, DDR support, and DSP-oriented blocks that enable sophisticated timing and signal-processing architectures.
• Compact, Industry-Standard Package: 672-BBGA (35×35) delivers high density in a surface-mount form factor suitable for space-constrained PCBs.
• Commercial Temperature Range: Rated for 0 °C to 85 °C operation to match standard commercial applications and environments.
• Regulatory Compliance: RoHS compliance supports environmentally conscious designs and manufacturing processes.

Why Choose EP1S25B672C6?

The EP1S25B672C6 positions itself as a versatile Stratix FPGA option for designers needing a balance of logic density, embedded memory, and extensive I/O in a compact BGA package. Its specifications support implementation of complex digital systems that require integrated clocking, DSP resources, and high-speed I/O options documented for the Stratix family.

This device is well suited for engineering teams developing communications interfaces, signal-processing blocks, high-speed data acquisition systems, or embedded compute accelerators that benefit from on-chip resources and the Stratix architecture documentation and support.
