EP20K300EQI240-2X

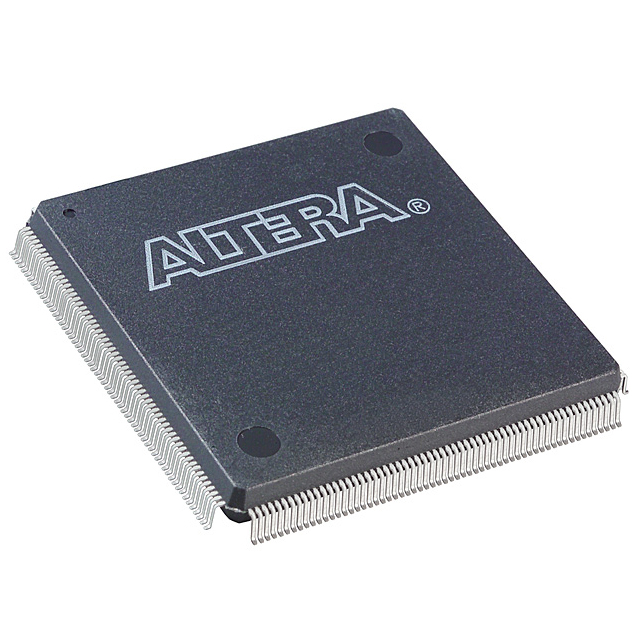

The EP20K300EQI240-2X is an APEX-20KE® family FPGA in a 240-BFQFP (240-PQFP, 32×32) surface-mount package designed for industrial applications. It combines a MultiCore architecture with look-up table (LUT) logic, product-term logic and embedded memory blocks to deliver high-density, programmable logic and on-chip memory for system integration.

Targeted use cases include embedded systems, high-density logic integration and designs requiring flexible I/O and clock management. The device offers a balance of logic capacity, embedded RAM and I/O capability while operating across an industrial temperature range and RoHS-compliant supply requirements.

Key Features

• APEX-20K MultiCore architecture  Integrates LUT logic, product-term logic and embedded system blocks (ESBs) for implementing register-heavy and memory-intensive functions.
• Logic capacity  Provides 11,520 logic elements to implement complex programmable logic designs.
• Embedded memory  Approximately 0.147 Mbits of on-chip RAM (147,456 bits) for FIFOs, dual-port RAM or CAM-style implementations.
• Gate density  Equivalent to 728,000 system gates for mapping large designs.
• I/O capability  152 user I/O pins supporting MultiVolt I/O interface options and a range of high-speed signalling options described in the APEX-20K family documentation.
• Clock management  APEX-20K family clocking features include multiple PLLs, a low-skew clock tree and up to eight global clock signals for flexible clock distribution and timing control.
• Power and supply  Internal supply specified near 1.8 V with device operating supply range of 1.71 V to 1.89 V for the internal core.
• Package and mounting  240-PQFP (32×32) package, surface-mount mounting type for compact board-level integration.
• Industrial temperature range  Rated for operation from −40 °C to 100 °C.
• Environmental compliance  RoHS compliant.

Typical Applications

• Embedded systems: Implement control logic, protocol bridges and custom processors using the device’s LUTs and embedded memory.
• Memory interface controllers: Use the on-chip RAM and ESB resources to build FIFOs and dual-port memory controllers for external memory systems.
• High-speed I/O designs: Leverage MultiVolt I/O support and family I/O features for interfacing with mixed-voltage peripherals and high-speed links.
• Industrial automation: Deploy programmable logic and deterministic clocking across the −40 °C to 100 °C temperature range for factory and process control applications.

Unique Advantages

• High integration density: 11,520 logic elements and 147,456 bits of embedded RAM reduce the need for external glue logic and memory.
• Flexible clocking: Multiple PLLs and a low-skew clock tree provide precise clock distribution options for timing-critical designs.
• MultiVolt I/O flexibility: Supports a range of interface voltages for easy integration with 1.8 V, 2.5 V, 3.3 V and 5.0 V systems as described in family documentation.
• Industrial robustness: Surface-mount 240-PQFP package and −40 °C to 100 °C operating range support deployment in demanding environments.
• Proven architecture: APEX-20K family features such as ESBs and hierarchical interconnects provide predictable performance for large designs.
• RoHS compliant: Environmentally compliant manufacturing and material status for modern production requirements.

Why Choose EP20K300EQI240-2X?

The EP20K300EQI240-2X positions itself as a high-density APEX-20KE FPGA option for industrial and embedded designs that require a balance of logic capacity, on-chip RAM and flexible I/O. With 11,520 logic elements, approximately 0.147 Mbits of embedded memory and 152 I/Os in a compact 240-PQFP package, it supports integration of complex logic functions and memory structures on a single device while operating across a wide industrial temperature range.

Design teams looking for a programmable, RoHS-compliant FPGA with APEX-20K family features—such as MultiCore architecture, ESBs and advanced clock management—will find the EP20K300EQI240-2X suited for scalable development, system integration and production deployments.

Request a quote or submit a purchase inquiry today to discuss availability, pricing and lead times for the EP20K300EQI240-2X.
