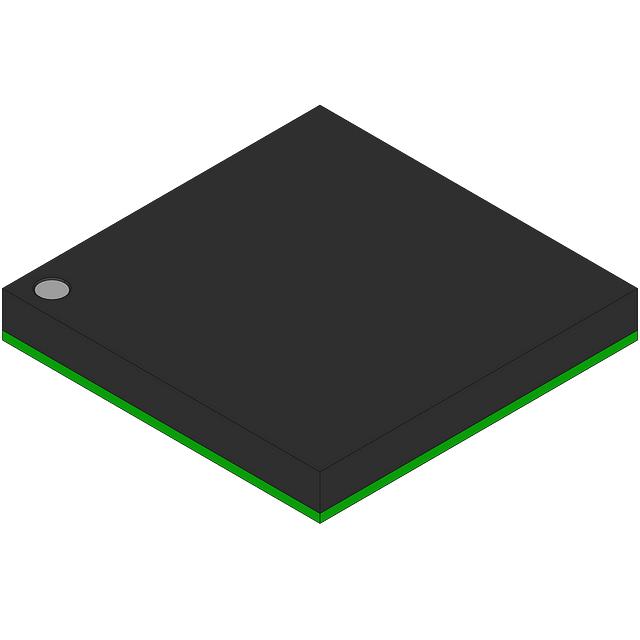

EP20K30EFC144-1

The EP20K30EFC144-1 is an Altera APEX-20K® field programmable gate array (FPGA) provided in a 144-lead LQFP package. This configurable logic device offers on-chip memory, I/O density and a defined operating voltage and temperature range for commercial embedded designs.

Designed for applications requiring flexible, reprogrammable logic, the device balances logic capacity, embedded RAM and I/O count in a compact surface-mount package.

Key Features

• Logic Capacity — Provides 1,200 logic elements and approximately 113,000 gates for implementing custom digital functions and glue logic.
• Embedded Memory — Includes 24,576 bits of on-chip RAM to support local buffering, state storage and small data structures.
• I/O Count — 92 user I/O pins to interface with peripherals, buses and external devices.
• Supply Voltage — Operates from 1.71 V to 1.89 V, enabling compatibility with low-voltage system rails within that range.
• Package and Mounting — Available in a 144-LQFP surface-mount package (supplier device package: 144-TQFP, 20 × 20 mm) for high-density PCB layouts.
• Operating Range — Commercial-grade temperature rating of 0 °C to 85 °C for standard ambient environments.
• Compliance — RoHS compliant, meeting common environmental requirements for lead-free assemblies.

Unique Advantages

• Balanced Logic and Memory: 1,200 logic elements paired with 24,576 bits of embedded RAM support compact implementations of custom logic and small data buffers without external memory.
• Ample I/O Density: Ninety-two I/O pins provide flexibility for interfacing multiple peripherals or parallel signals while minimizing the need for additional I/O expanders.
• Compact Surface-Mount Package: The 144-LQFP (144-TQFP, 20×20 mm) package simplifies PCB routing and supports higher-density board designs.
• Low-Voltage Operation: The narrow supply range (1.71 V–1.89 V) allows integration into low-voltage systems with predictable power requirements.
• Commercial Temperature Rating: Rated for 0 °C to 85 °C, suitable for a wide range of non-industrial, commercial electronic products.
• RoHS Compliance: Lead-free compliant construction supports regulatory and environmental requirements for modern electronics manufacturing.

Why Choose EP20K30EFC144-1?

The EP20K30EFC144-1 delivers a practical combination of logic resources, embedded RAM and I/O in a compact LQFP surface-mount package from Altera’s APEX-20K family. Its defined voltage range and commercial temperature rating make it appropriate for designers seeking a reprogrammable logic device that fits low-voltage, space-constrained boards.

This device is well suited to teams that require a verified FPGA building block with clear, verifiable specifications for logic capacity, memory, I/O count and packaging—providing predictable integration into existing design flows and production processes.

Request a quote or contact our sales team to discuss pricing, availability and volume options for the EP20K30EFC144-1.
