EP2AGX45CU17I3N

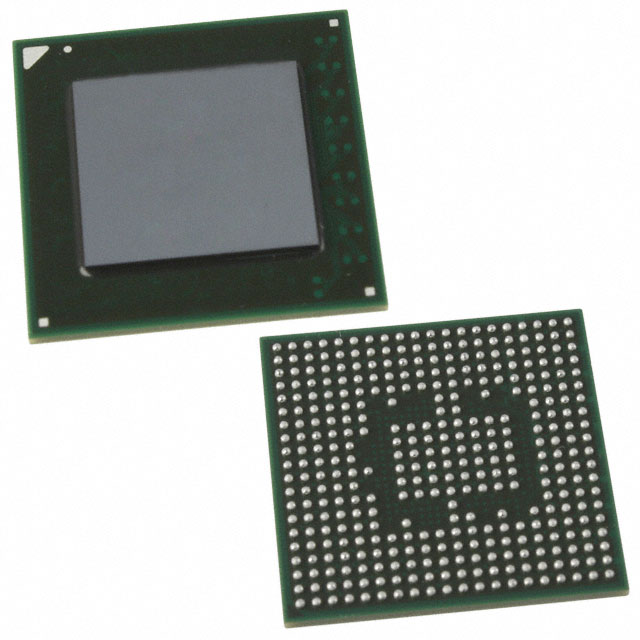

The EP2AGX45CU17I3N is an Intel Arria II GX field programmable gate array (FPGA) supplied in a 358-LFBGA FCBGA package. The device integrates a substantial logic fabric and on-chip memory with a broad I/O count and industrial temperature capability, making it appropriate for programmable-logic implementations in industrial and embedded systems.

Key architectural elements exposed in the product data include 42,959 logic elements, approximately 3.52 Mbits of embedded memory, and 156 I/O pins, delivering a balanced mix of logic density, on-chip storage, and external connectivity for mid-range FPGA designs.

Key Features

• Logic Capacity — 42,959 logic elements provide the programmable fabric needed for complex combinational and sequential logic implementations.
• Embedded Memory — Approximately 3.52 Mbits of on-chip RAM for buffering, state storage, and small embedded data structures.
• I/O Resources — 156 general-purpose I/O pins to interface with sensors, peripherals, and external devices.
• Package and Mounting — Supplied in a 358-LFBGA, FCBGA package; supplier device package listed as 358-UBGA (17×17). Designed for surface-mount assembly.
• Power — Core supply operating range of 870 mV to 930 mV, enabling defined low-voltage core operation.
• Industrial Grade and Temperature Range — Rated industrial grade with operating temperature from −40 °C to 100 °C for use in harsh environments.
• Standards Compliance — RoHS compliant.
• Series Documentation — Part of the Arria II GX device family with published device handbook coverage of electrical characteristics and transceiver/periphery behavior.

Typical Applications

• Industrial Control and Automation — Industrial-grade temperature rating and broad I/O make the device suitable for programmable control, motor drives, and factory automation functions.
• Embedded System Integration — On-chip memory and substantial logic capacity support mid-range embedded processing, protocol bridging, and custom I/O handling.
• Communications and Networking Equipment — The Arria II GX family documentation includes transceiver and periphery specifications relevant to networking and data-handling designs that require programmable logic and multiple I/Os.

Unique Advantages

• Balanced Logic and Memory Resources — 42,959 logic elements combined with ~3.52 Mbits of embedded RAM supports complex logic and local buffering without immediate external memory dependency.
• Industrial Reliability — Specified for −40 °C to 100 °C operation and listed as industrial grade, supporting deployments in demanding ambient conditions.
• High I/O Count — 156 I/O pins simplify integration with multiple peripherals, sensors, and external interfaces.
• Compact Surface-Mount Package — 358-LFBGA / 358-UBGA (17×17) footprint provides a high-density implementation for space-constrained boards.
• Defined Low-Voltage Core — Core voltage range of 0.87–0.93 V supports predictable power design and supply planning.
• Regulatory Compliance — RoHS compliance supports restriction-of-hazardous-substances requirements in many product markets.

Why Choose EP2AGX45CU17I3N?

The EP2AGX45CU17I3N positions itself as a mid-range Arria II GX FPGA option that blends a sizable logic element count with meaningful on-chip memory and a substantial I/O complement in a compact BGA package. Its industrial grading and extended temperature range make it suitable for deployed systems that require programmable logic resilience across a wide ambient range.

Designers seeking a programmable-logic device for industrial and embedded applications will find the EP2AGX45CU17I3N offers a clear combination of integration, environmental tolerance, and documented family-level electrical and switching characteristics to support reliable system design and validation.

Request a quote or submit a pricing and availability inquiry for the EP2AGX45CU17I3N to receive detailed ordering and lead-time information.
