EP2AGX45DF25C6

The EP2AGX45DF25C6 is an Arria II GX field-programmable gate array (FPGA) supplied in a 572-ball FCBGA package. It delivers reconfigurable programmable logic with a defined logic element count and on-chip memory, suitable for designs that require integrated logic, embedded RAM, and substantial I/O connectivity.

Documented in the Arria II device handbook and device datasheet, the device is provided in a commercial grade with specified operating conditions and electrical characteristics. Key device attributes include approximately 42,959 logic elements, roughly 3.52 Mbits of embedded memory, and 252 general-purpose I/Os.

Key Features

• Logic Capacity  Approximately 42,959 logic elements provide the core programmable resources for custom logic implementation and control functions.
• Embedded Memory  Approximately 3.52 Mbits of on-chip RAM (3,517,440 total bits) to support buffering, state storage, and memory-intensive logic functions.
• I/O Count  252 general-purpose I/O pins to interface with peripherals, buses, and external logic.

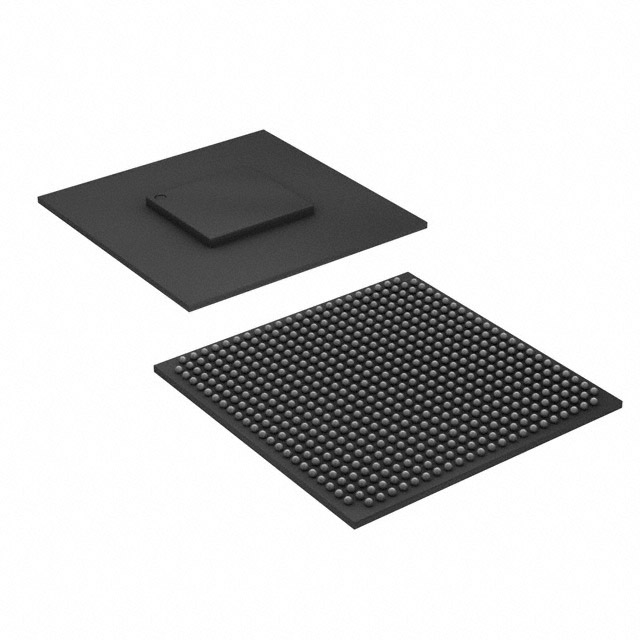

• Package  572-BGA FCBGA package (572-FBGA, FC, 25×25) for high pin-count integration in a surface-mount form factor.
• Power Supply  Core voltage supply specified between 870 mV and 930 mV for device operation.
• Operating Range & Grade  Commercial grade device with an operating temperature range of 0 °C to 85 °C.
• Standards Compliance  RoHS compliant, supporting regulatory conformity for lead-free assembly and materials.
• Family Documentation  Part of the Arria II device family; electrical and switching characteristics are detailed in the Arria II device handbook and device datasheet.

Unique Advantages

• High logic density: The device’s ~42,959 logic elements provide substantial programmable capacity for mid-to-high complexity designs.
• Significant embedded memory: Approximately 3.52 Mbits of on-chip RAM reduces dependency on external memory for many buffering and storage needs.
• Generous I/O provisioning: 252 I/Os allow direct interfacing to a wide range of external devices and system-level signals.
• Compact high-pin-count package: The 572-ball FCBGA (25×25) package enables dense system integration while maintaining a surface-mount footprint.
• Commercial-grade operating range: Rated for 0 °C to 85 °C operation and RoHS compliance for mainstream commercial applications.
• Documented device family resources: The Arria II device handbook and datasheet provide electrical, switching, and I/O timing details for design and validation.

Why Choose EP2AGX45DF25C6?

The EP2AGX45DF25C6 balances substantial programmable logic capacity, embedded RAM, and a high I/O count in a 572-ball FCBGA package, making it suitable for commercial-grade systems that require integrated reconfigurable logic. Its defined core voltage range and operating temperature provide clear electrical and environmental boundaries for system design.

As a member of the Arria II GX family, the device is supported by the Arria II device handbook and related datasheet material, providing the electrical and switching characteristic references required for integration, validation, and system-level planning.

If you would like pricing, availability, or a formal quote for EP2AGX45DF25C6, submit an inquiry or request a quote from our sales team and include your target quantities and required delivery timeline.
