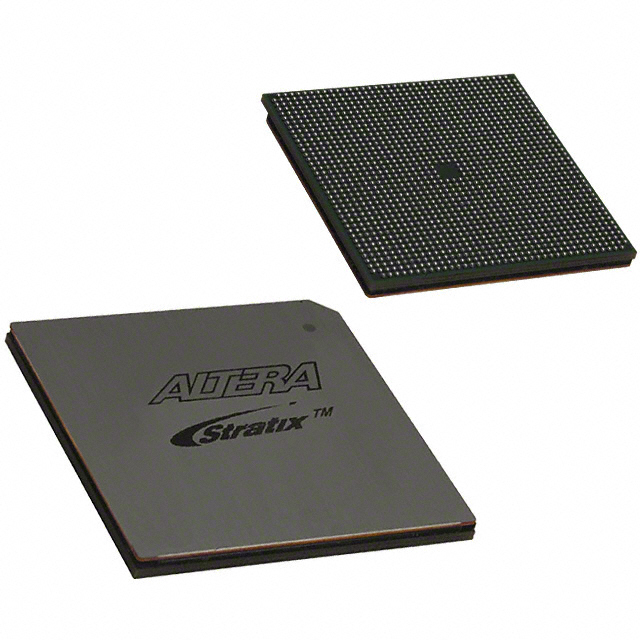

EP2S180F1508I4

The EP2S180F1508I4 is a Stratix® II family FPGA packaged in a 1508-ball FCBGA designed for industrial-grade applications. It combines a very large logic capacity with extensive on-chip memory and high pin-count I/O to support complex, high-density digital designs.

With 179,400 logic elements, approximately 9.38 Mbits of embedded memory and 1,170 I/O pins, this device targets designs that require large programmable fabric, broad I/O connectivity, and documented Stratix II architecture features such as PLLs, DSP blocks and advanced I/O structures.

Key Features

• Logic Capacity — 179,400 logic elements to implement large-scale digital systems and complex custom logic functions.
• Embedded Memory — Approximately 9.38 Mbits of on-chip RAM for buffering, lookup tables and state storage without external memory.
• I/O Density — 1,170 I/O pins to support wide parallel interfaces and multiple high-pin-count peripherals.
• Power and Voltage — Operates from a core voltage supply range of 1.15 V to 1.25 V, enabling predictable power-domain design.
• Industrial Temperature Range — Rated for operation from −40 °C to 100 °C for deployment in industrial environments.
• Package & Mounting — Surface-mount 1508-ball BGA (FCBGA) package; supplier package listed as 1508-FBGA, FC (40×40) for board-level integration.
• Stratix II Architecture — Device handbook details architecture elements such as PLLs and clock networks, DSP blocks, TriMatrix memory, MultiTrack interconnect and an advanced I/O structure for timing and interface flexibility.
• Configuration & Debug Support — Documentation describes standard Stratix II configuration and testing features including JTAG boundary-scan and embedded logic analysis capabilities.

Typical Applications

• Industrial Control & Automation — Large logic capacity and industrial temperature rating make this FPGA suitable for factory automation, motion control and PLC-style systems requiring robust operation.
• High-Density Embedded Systems — Use the device where substantial on-chip RAM and many logic elements are needed for custom processors, protocol engines or data path consolidation.
• Custom Hardware Acceleration — The documented DSP resources and clocking architecture support implementation of application-specific accelerators and signal-processing pipelines.

Unique Advantages

• Large programmable fabric: 179,400 logic elements provide the headroom to consolidate multiple functions into a single device and reduce board-level component count.
• Significant on-chip memory: Approximately 9.38 Mbits of embedded RAM reduces dependence on external memory for many buffering and lookup requirements.
• Extensive I/O availability: 1,170 I/O pins enable wide parallel interfaces and connectivity to multiple peripherals or high-pin-count systems.
• Industrial operating range: −40 °C to 100 °C rating supports deployment in harsher environments where extended temperature tolerance is required.
• Documented Stratix II feature set: Architecture and device handbook coverage of clock networks, DSP blocks, memory architecture and I/O features helps accelerate design planning and integration.

Why Choose EP2S180F1508I4?

The EP2S180F1508I4 is positioned for engineers and procurement teams seeking a high-capacity Stratix II FPGA with substantial logic and memory resources, very high I/O count, and industrial temperature capability. Its documented architecture elements — including clocking, DSP resources and advanced I/O — make it suitable for consolidating complex system functions into a single programmable device.

This device is a good match for designs that prioritize integration, predictable power-domain requirements (1.15–1.25 V core), and long-term deployment in industrial environments. The Stratix II handbook material provides detailed guidance for configuration, timing and integration to support development and validation.

If you would like pricing or availability, request a quote or submit an RFQ to begin a procurement inquiry for the EP2S180F1508I4.
