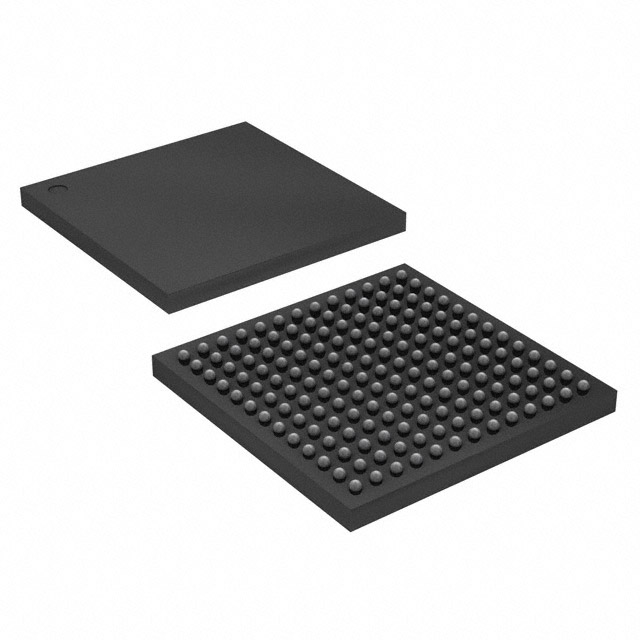

EP4CGX30BF14C8N

The EP4CGX30BF14C8N is a Cyclone® IV GX field-programmable gate array (FPGA) optimized for commercial-temperature designs. It provides 29,440 logic elements and approximately 1.1 Mbits of embedded RAM, delivered in a compact 169-ball package.

This device is specified for surface-mount assembly with a supply voltage range of 1.16 V to 1.24 V and an operating temperature range of 0 °C to 85 °C, and it is RoHS compliant.

Key Features

• Logic Capacity  29,440 logic elements suitable for mid-range programmable logic tasks and custom digital designs.
• Embedded Memory  Approximately 1.1 Mbits of on-chip RAM for data buffering, FIFOs, and state storage without external memory.
• I/O Count  72 general-purpose I/O pins to support multiple peripherals and interface signals in a single device.
• Power Supply  Specified core voltage range of 1.16 V to 1.24 V to match system power-rail requirements.
• Package and Mounting  169-ball package (169-LBGA listed; supplier device package noted as 169-FBGA, 14×14) designed for surface-mount assembly.
• Temperature Grade  Commercial operating range of 0 °C to 85 °C for standard commercial applications.
• Regulatory Compliance  RoHS compliant for regulatory and environmental requirements.

Unique Advantages

• High logic density: 29,440 logic elements enable complex logic integration without multiple devices.
• On-chip memory: Approximately 1.1 Mbits of embedded RAM reduces reliance on external memory for buffering and storage.
• Ample I/O: 72 I/O pins provide flexibility for multi-interface designs and peripheral connections.
• Compact packaging: 169-ball BGA package offers a small board footprint for space-constrained PCB layouts.
• Commercial temperature support: Rated 0 °C to 85 °C for deployment in standard commercial environments.
• RoHS compliant: Meets lead-free and hazardous-substance requirements for many supply chains.

Why Choose EP4CGX30BF14C8N?

The EP4CGX30BF14C8N combines substantial programmable logic capacity with embedded memory and a practical I/O count in a compact surface-mount package. Its supply voltage specification and commercial temperature rating make it appropriate for a wide range of standard commercial electronic designs that require integrated programmable logic and on-chip RAM.

Engineers and procurement teams seeking a RoHS-compliant FPGA with clear, verifiable specifications for logic elements, on-chip memory, I/O count, package, and operating conditions will find the EP4CGX30BF14C8N straightforward to evaluate and integrate into their designs.

Request a quote or submit a purchase inquiry to receive pricing, availability, and ordering information for the EP4CGX30BF14C8N.
