EPF10K30ABI356-3

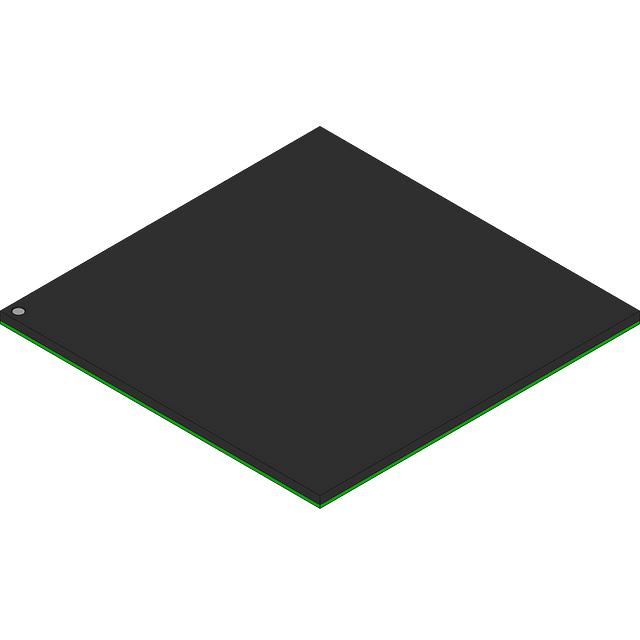

The EPF10K30ABI356-3 is a FLEX-10KA® field programmable gate array (FPGA) from Altera. It provides 1,728 logic elements, 12,288 bits of on-chip RAM and 246 I/O pins in a compact 356-ball LFBGA (35 × 35) package.

Built and specified for industrial use, this device supports a 3.0 V to 3.6 V supply range and an operating temperature range of −40 °C to 85 °C, making it suitable for systems that require reliable logic integration in constrained board space.

Key Features

• Logic Capacity — 1,728 logic elements (LEs) provide programmable combinational and sequential resources for custom digital logic implementation.
• On-chip Memory — 12,288 bits of embedded RAM for buffering, small lookup tables, or state storage within designs.
• I/O Resources — 246 I/O pins to support a wide range of external interfaces and signal connections.
• Gate Count — Approximately 69,000 gates of logic density to map moderate-complexity functions.
• Package — 356-LBGA (356-BGA, 35 × 35 mm) surface-mount package for high-density board layouts and compact system designs.
• Power — Operates from a 3.0 V to 3.6 V supply, suitable for common industrial power rails.
• Industrial Temperature Range — Specified for −40 °C to 85 °C operation for deployment in industrial environments.
• RoHS Compliance — RoHS-compliant device to meet lead-free assembly and environmental requirements.

Typical Applications

• Industrial Control — Use the FPGA’s logic elements and abundant I/O to implement control logic, sensor interfacing, and deterministic I/O handling in industrial systems within the specified temperature range.
• Embedded Systems — Integrate custom glue logic, state machines, and small on-chip memory for embedded designs that require moderate programmable logic and compact packaging.
• Communications and I/O Aggregation — Leverage 246 I/Os and on-chip logic to aggregate signals, manage interfaces, and perform protocol bridging in space-constrained applications.

Unique Advantages

• Balanced Logic and Memory — 1,728 logic elements paired with 12,288 bits of RAM enable implementation of moderate-complexity functions and local data buffering without external memory.
• High I/O Count — 246 I/Os reduce the need for additional multiplexing components, simplifying board-level design for multi-signal systems.
• Compact, High-density Package — 356-LBGA (35 × 35) provides a small footprint for PCB space savings while supporting a high pin count.
• Industrial Qualification — Specified operating range of −40 °C to 85 °C and industrial grade designation support deployment in temperature-variable environments.
• Standard Power Supply Range — 3.0 V to 3.6 V compatibility with common industrial power rails eases integration into existing power architectures.
• Regulatory Compliance — RoHS compliance supports lead-free manufacturing and environmental policy adherence.

Why Choose EPF10K30ABI356-3?

The EPF10K30ABI356-3 positions itself as a compact, industrial-grade FPGA option from Altera that balances logic density, on-chip memory, and a high I/O count in a 356-LBGA package. Its electrical and thermal specifications make it suitable for designs that require reliable programmable logic within a constrained board area and industrial temperature conditions.

This part is well suited to engineers and procurement teams designing embedded or industrial control systems who need a moderately sized FPGA with ample I/O and on-chip memory. Its RoHS compliance and standard supply voltage range contribute to straightforward integration and long-term manufacturability.

Request a quote or submit an inquiry to receive pricing and availability for the EPF10K30ABI356-3. Our team can provide lead-time and ordering information to support your procurement process.
