EPF10K50BC356-4

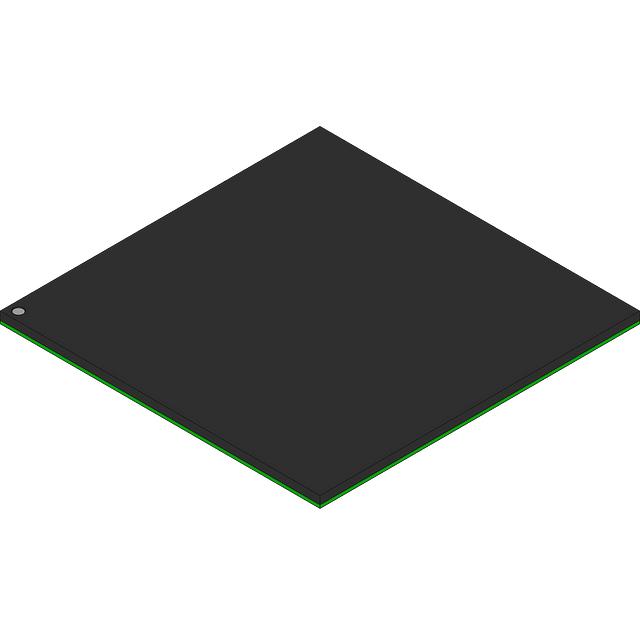

The EPF10K50BC356-4 is a FLEX-10K Field Programmable Gate Array (FPGA) IC from Altera, offered in a 356-LBGA package. It provides reconfigurable logic resources and a high I/O count for commercial embedded designs.

With 2,880 logic elements, 246 user I/O, a 356-BGA (35×35) supplier package, and a 4.75 V to 5.25 V supply range, this device targets commercial applications that require moderate logic capacity, substantial I/O connectivity, and RoHS-compliant manufacturing.

Key Features

• Logic Capacity  2,880 logic elements deliver reconfigurable resources for a wide range of combinational and sequential logic implementations.
• I/O Density  246 user I/O pins provide extensive external connectivity for parallel interfaces, control signals, and mixed-signal front ends.
• Power Supply  Operates from 4.75 V to 5.25 V, enabling integration into standard 5 V commercial systems.
• Package & Mounting  356-LBGA package; supplier device package listed as 356-BGA (35×35); surface-mount mounting style for compact board-level integration.
• Commercial Temperature Grade  Rated for 0°C to 70°C operation, suitable for typical commercial environment deployments.
• Regulatory  RoHS compliant to support lead-free manufacturing processes.

Typical Applications

• Commercial Embedded Systems  Reconfigurable logic and 246 I/O support custom control, glue logic, and protocol handling in commercial product designs.
• I/O-Intensive Interface Designs  High pin count enables interface bridging, parallel data capture, and multi-signal routing without extensive external expanders.
• Prototyping and Development  Mid-range logic capacity and flexible I/O make the device suitable for hardware prototyping and iterative digital design in commercial temperature ranges.

Unique Advantages

• Moderate Logic Resource:  2,880 logic elements provide sufficient capacity for many mid-range digital designs without excess cost or complexity.
• High I/O Count:  246 user I/O pins reduce the need for additional interface components, simplifying BOM and PCB routing.
• Standard 5 V Compatibility:  4.75 V to 5.25 V supply range enables straightforward integration with 5 V legacy and commercial systems.
• Compact BGA Packaging:  356-LBGA / 356-BGA (35×35) delivers a high pin count in a compact surface-mount form factor for space-constrained boards.
• Commercial Temperature & Compliance:  0°C to 70°C rating and RoHS compliance support mainstream manufacturing and deployment requirements.

Why Choose EPF10K50BC356-4?

The EPF10K50BC356-4 positions itself as a practical, commercial-grade FPGA option for designers who need mid-range logic capacity paired with substantial I/O in a compact BGA package. Its 2,880 logic elements, 246 I/O, and 5 V supply compatibility make it a suitable choice for embedded systems, interface bridging, and prototype development where RoHS compliance and commercial temperature operation are required.

Engineers and procurement teams can rely on the device’s balanced combination of logic resources, I/O density, and packaging to simplify board integration and reduce external component count, supporting efficient development cycles and manufacturable designs.

Request a quote or submit an inquiry for part number EPF10K50BC356-4 to obtain pricing and availability details for your next commercial FPGA design.
