XC2V1500-4BG575I

The XC2V1500-4BG575I is an AMD Virtex®-II platform FPGA in a 575-ball BGA (31×31 mm) package designed for industrial applications. It combines high-density logic, on-chip embedded memory, and a broad set of I/O resources to support custom digital designs that require substantial integration in a single device.

Key architectural elements include approximately 17,280 logic elements, roughly 1.5 million gates, and approximately 0.885 Mbits of embedded RAM, delivering a compact solution for complex control, signal processing, and protocol-bridging functions in industrial systems.

Key Features

• Core Logic Approximately 17,280 logic elements and 1,500,000 system gates provide substantial programmable fabric for complex logic and state-machine implementations.
• Embedded Memory Approximately 0.885 Mbits of on-chip RAM (884,736 total bits) suitable for buffering, FIFOs, and small on-chip data storage.
• I/O Capacity 392 user I/O pins support wide connectivity to peripherals, memory devices, and external logic while enabling flexible board-level interfacing.
• Arithmetic and Clock Management (Series Features) Series-level capabilities include dedicated 18-bit × 18-bit multiplier blocks and Digital Clock Manager (DCM) modules for frequency synthesis and clock de-skew as described in the Virtex-II platform documentation.

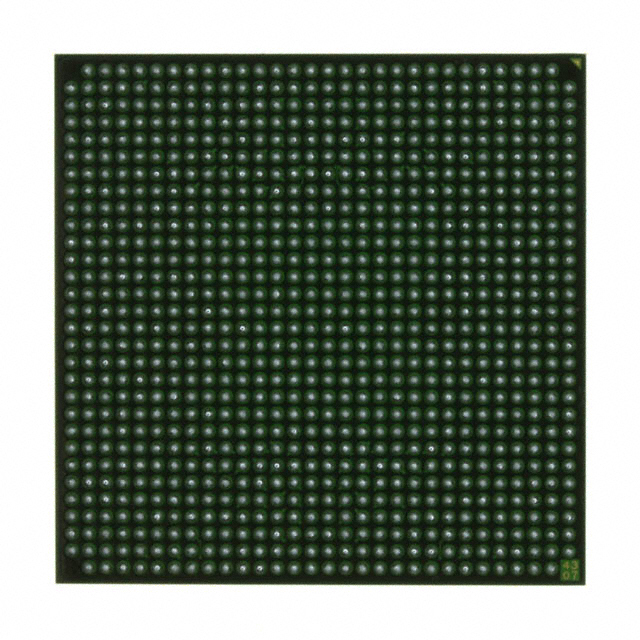

• Package & Mounting 575-BBGA package (31×31 mm) with surface-mount construction provides a high-density board footprint suited to compact systems.
• Power and Supply Specified core voltage range of 1.425 V to 1.575 V for predictable power planning and regulator selection.
• Industrial Temperature Range Rated for operation from −40 °C to 100 °C, supporting deployment in industrial environments.
• Regulatory & Reliability RoHS compliant, supporting environmentally conscious designs and regulatory requirements.

Typical Applications

• Industrial Control — Integration of custom control logic, signal conditioning, and protocol translation in factory automation and process-control equipment.
• Communications Infrastructure — Implementation of custom packet processing, interface bridging, or protocol adaptation where substantial logic and I/O are required.
• Data Acquisition & Signal Processing — On-chip memory and multiplier resources support buffering and arithmetic tasks for sensor data aggregation and preprocessing.

Unique Advantages

• High Integration Density: With roughly 1.5 million gates and 17,280 logic elements, the device reduces board-level component count by consolidating complex designs into a single FPGA.
• Substantial On-Chip Memory: Approximately 0.885 Mbits of embedded RAM enables local buffering and reduces external memory dependency for many use cases.
• Extensive I/O Resources: 392 I/Os provide flexible connectivity for multiple interfaces and peripheral sets without sacrificing board real estate.
• Industrial-Grade Operation: Specified operation from −40 °C to 100 °C and RoHS compliance make the device suitable for industrial deployments requiring robust thermal performance and regulatory conformance.
• Compact, Surface-Mount Package: The 575-BBGA (31×31 mm) package balances high pin-count capability with a compact footprint for space-constrained designs.

Why Choose XC2V1500-4BG575I?

The XC2V1500-4BG575I positions itself as a high-density, industrial-grade Virtex-II FPGA option for designs that need a balance of programmable logic, embedded memory, and substantial I/O in a compact BGA package. Its combination of approximately 17,280 logic elements, roughly 0.885 Mbits of on-chip RAM, and 392 I/Os supports designs ranging from industrial control to communications and data-acquisition systems.

Developers and procurement teams seeking a proven platform-level FPGA with series-level capabilities for arithmetic blocks and clock management will find the XC2V1500-4BG575I a capable device for mid- to high-complexity programmable logic applications where industrial temperature operation and RoHS compliance are required.

Request a quote or submit your requirements to receive pricing and availability information for the XC2V1500-4BG575I. Our team can help determine fit for your design and provide lead-time guidance.
