XC2V500-4FGG456I
| Part Description |
Virtex®-II Field Programmable Gate Array (FPGA) IC 264 589824 456-BBGA |
|---|---|
| Quantity | 722 Available (as of October 7, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | AMD |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | Contact Us |
| Datasheet |
Specifications & Environmental
| Device Package | 456-FBGA (23x23) | Grade | Industrial | Operating Temperature | -40°C – 100°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 456-BBGA | Number of I/O | 264 | Voltage | 1.425 V - 1.575 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | Unknown | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 768 | Number of Logic Elements/Cells | 6912 | ||
| Number of Gates | 500000 | ECCN | 3A991D | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 589824 |
Overview of XC2V500-4FGG456I – Virtex®-II Field Programmable Gate Array (FPGA) IC, 264 I/O, ~0.59 Mbits RAM, 456-BBGA
The XC2V500-4FGG456I is a Virtex®-II platform Field Programmable Gate Array offering a mid-range mix of logic, embedded memory, and I/O in a 456-ball BGA package. It provides programmable logic resources together with embedded SelectRAM memory and dedicated arithmetic blocks for designs that require on-chip memory, high-speed I/O, and deterministic clocking.
Designed for industrial-grade applications, the device combines approximately 6,912 logic elements with 589,824 bits of on-chip RAM and 264 user I/Os to support system functions such as memory interfaces, signal processing blocks, and custom control logic while operating across a wide temperature and voltage range.
Key Features
- Logic Resources Approximately 6,912 logic elements with 768 CLB structures reported in device specifications for mid-range programmable logic capacity.
- Embedded Memory Approximately 0.59 Mbits of on-chip RAM (589,824 total RAM bits) organized as block SelectRAM resources suitable for data buffering and small on-chip storage.
- Arithmetic Blocks Dedicated 18-bit × 18-bit multiplier blocks for implementing DSP and multiply-accumulate functions efficiently within the fabric.
- Clock Management Digital Clock Manager (DCM) resources and global clock multiplexing features described in the Virtex-II platform for precise clock de-skew, frequency synthesis, and phase shifting.
- I/O Capacity and Flexibility 264 user I/Os to support multiple external interfaces; SelectIO features in the Virtex-II family provide a range of I/O standards and programmable drive/termination options.

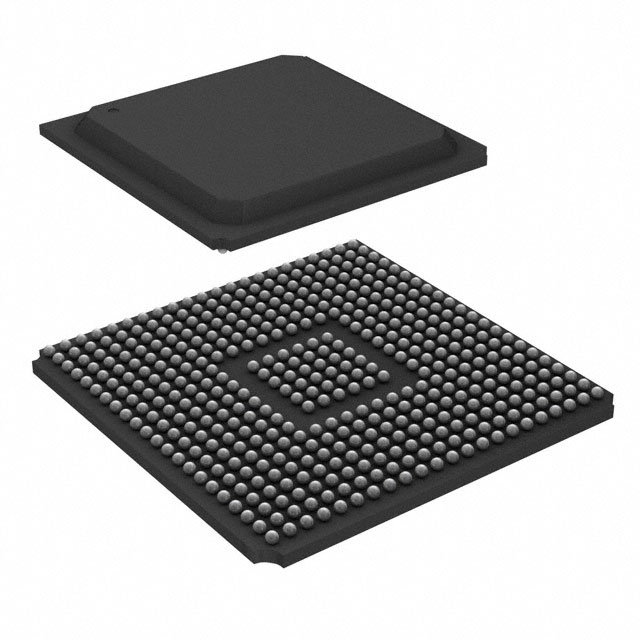

- Package and Mounting 456-BBGA (supplier package 456-FBGA, 23×23) surface-mount package for high-density board designs.
- Power and Temperature Specified supply voltage range of 1.425 V to 1.575 V and industrial operating temperature range from −40 °C to 100 °C.
- Industrial Grade and Compliance Device is listed as Industrial grade and is RoHS compliant.
- Series-Level Capabilities Virtex-II platform features (from the series datasheet) include SelectRAM memory hierarchy, high-performance external memory interfaces (SDR/DDR and SRAM families), and architecture elements to support predictable routing and timing.
Typical Applications
- Memory Interface Controllers Use the device to implement SDR/DDR or SRAM interface logic and custom memory controllers leveraging the series’ high-performance external memory interface features.
- Signal Processing and DSP Leverage the dedicated 18×18 multipliers and on-chip RAM to build filtering, accumulation, and other arithmetic-intensive blocks.
- Custom Logic and Glue Deploy the FPGA as a programmable glue logic or protocol bridge where 264 I/Os and flexible logic resources are used to interface disparate peripherals and subsystems.
- Industrial Control Industrial operating temperature range and robust packaging make the device suitable for embedded control, motor drive interfacing, and industrial automation logic functions.
Unique Advantages
- Balanced Logic-to-Memory Ratio: Approximately 6,912 logic elements paired with ~0.59 Mbits of on-chip RAM provides a balanced platform for combined control and data buffering tasks.
- Dedicated DSP Resources: Built-in 18×18 multipliers reduce external component count and simplify implementation of multiply-accumulate and signal processing functions.
- Deterministic Clocking: Digital Clock Manager resources enable precise clock de-skew and phase/frequency adjustments for timing-critical designs.
- High I/O Count: 264 user I/Os provide flexibility to connect multiple peripherals, memory devices, and board-level signals without external multiplexers.
- Industrial Temperature Range: Rated from −40 °C to 100 °C to meet harsher environmental requirements encountered in industrial deployments.
- RoHS Compliant: Meets lead-free requirements for environmentally conscious manufacturing processes.
Why Choose XC2V500-4FGG456I?
The XC2V500-4FGG456I places a practical combination of logic, embedded memory, DSP blocks, and high I/O count into a compact 456-BBGA footprint, offering engineers a versatile mid-range Virtex-II solution for industrial and embedded designs. With series-level features such as SelectRAM memory hierarchy, dedicated multipliers, and DCM-based clock management, the device supports designs that require reliable timing, local buffering, and arithmetic acceleration.
This part is well suited to teams building custom memory controllers, signal-processing pipelines, or complex glue logic where a balance of on-chip resources and industrial operating range provides design headroom and long-term robustness. Series-level tool and platform support noted in the datasheet helps integrate the device into established FPGA development flows.
Request a quote or submit an inquiry to check pricing and availability for XC2V500-4FGG456I and to discuss lead times or volume requirements.
