XC4VLX25-10SFG363C

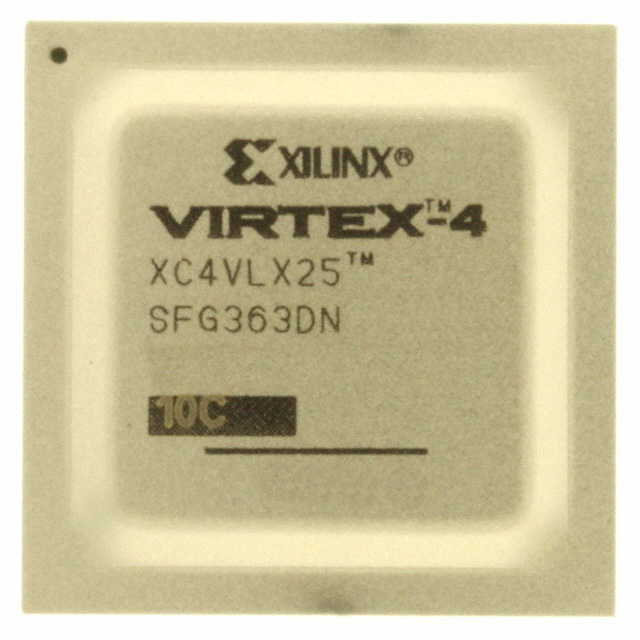

The XC4VLX25-10SFG363C is a Virtex-4 LX Field Programmable Gate Array (FPGA) from AMD delivered in a 363-FBGA (17×17) surface-mount package. It is specified as a commercial-grade programmable logic device suitable for designs requiring on-chip logic density, embedded memory, and substantial I/O count.

This device provides approximately 24,192 logic elements, approximately 1.33 Mbits of embedded memory, and 240 user I/O pins. Supply and thermal parameters are defined for system integration: core voltage between 1.14 V and 1.26 V and an operating temperature range of 0 °C to 85 °C.

Key Features

• Core (Logic) Approximately 24,192 logic elements for implementing custom digital functions and control logic.
• Embedded Memory Total on-chip RAM bits: 1,327,104 — approximately 1.33 Mbits of embedded memory for buffering, state machines, and local data storage.
• I/O 240 user I/O pins to interface with external peripherals, buses, and I/O standards in board-level designs.
• Power Core voltage supply range of 1.14 V to 1.26 V for power supply planning and integration.
• Package & Mounting 363-FBGA (17×17) FCBGA package in a surface-mount form factor for PCB assembly.
• Operating Conditions & Grade Commercial grade device with an operating temperature range of 0 °C to 85 °C.
• Environmental Compliance RoHS compliant.

Unique Advantages

• Substantial logic capacity: Approximately 24,192 logic elements provide room for complex finite-state machines, glue logic, and moderate-scale custom datapaths within a single device.
• On-chip memory for local storage: Approximately 1.33 Mbits of embedded RAM reduces dependence on external memory for buffering and small datasets.
• High I/O availability: 240 I/O pins support multiple external interfaces and simplify board-level connectivity without immediate need for I/O expanders.
• Compact BGA package: 363-FBGA (17×17) offers a compact surface-mount solution suitable for dense PCB layouts.
• Commercial-grade spec set: Defined operating temperature range (0 °C to 85 °C) and RoHS compliance align the device with commercial product requirements.

Why Choose XC4VLX25-10SFG363C?

The XC4VLX25-10SFG363C positions a Virtex-4 LX FPGA’s programmable logic and embedded memory in a compact 363-FBGA package for commercial applications. Its combination of approximately 24,192 logic elements, roughly 1.33 Mbits of on-chip RAM, and 240 I/O pins makes it suitable for designs that need significant on-chip resources while maintaining a surface-mount BGA footprint.

Manufactured by AMD and provided as a RoHS-compliant, commercial-grade device, it is appropriate for engineering teams and procurement focusing on scalable programmable logic capacity, on-chip memory utilization, and defined supply and thermal parameters for system integration.

Request a quote or submit a quote for XC4VLX25-10SFG363C to check availability and pricing for your next design.
