XC7K70T-1FB484I

The XC7K70T-1FB484I is a Kintex®-7 Field Programmable Gate Array (FPGA) offered in a 484-pin fine-pitch FCBGA package. It combines a substantial array of programmable logic resources, embedded memory, and a high I/O count in an industrial-grade device.

Designed for board- and system-level integration, this device provides 5,125 CLBs, 65,600 logic elements, approximately 4.98 Mbits of embedded RAM, and 285 I/Os, with a core supply voltage range of 0.97 V to 1.03 V and an operating range from −40 °C to 100 °C.

Key Features

• Core Logic 5,125 CLBs and 65,600 logic elements provide substantial programmable logic capacity for complex designs.
• Embedded Memory Approximately 4.98 Mbits of on-chip RAM (4,976,640 bits) for data buffering, state storage, and on-chip memory structures.
• I/O Resources 285 I/O pins to support wide external connectivity and interface flexibility.
• Power Core supply voltage specified from 0.97 V to 1.03 V to match system power-rail requirements.

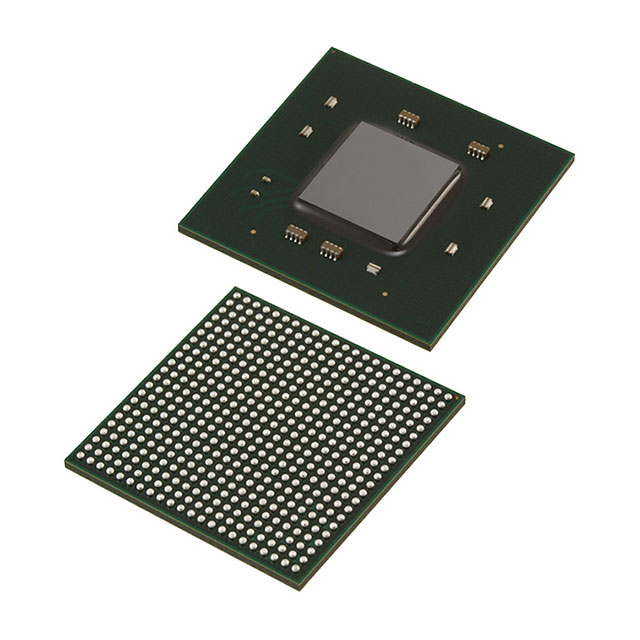

• Package and Mounting 484-FCBGA (23×23) package in a surface-mount form factor for compact board footprint and reliable soldering.
• Temperature and Grade Industrial grade device rated for operation from −40 °C to 100 °C for extended environmental tolerance.
• Environmental Compliance RoHS compliant.

Unique Advantages

• Substantial Logic Density: 65,600 logic elements enable implementation of complex custom logic and parallel processing blocks without immediate need for additional devices.
• On-Chip Memory Capacity: Approximately 4.98 Mbits of embedded RAM reduces reliance on external memory for many buffering and state-holding requirements.
• Ample I/O Count: 285 I/Os support multiple peripherals, buses, and high-pin-count interconnects within a single FPGA.
• Industrial Temperature Range: Rated for −40 °C to 100 °C to support deployment in thermally demanding environments.
• Compact FCBGA Package: The 484-FCBGA (23×23) surface-mount package balances a high pin count with a compact board footprint for space-constrained systems.
• Tightly Specified Core Voltage: Core supply range of 0.97 V to 1.03 V provides clear power-supply requirements for system design.

Why Choose XC7K70T-1FB484I?

The XC7K70T-1FB484I positions itself as an industrial-grade Kintex®-7 FPGA that balances programmable logic capacity, embedded RAM, and I/O density in a compact FCBGA package. Its specification set is suited to engineers and procurement teams seeking a single-device platform that consolidates logic, memory, and connectivity while meeting industrial temperature requirements.

This device is appropriate for designs that require tens of thousands of logic elements, multiple megabits of embedded RAM, and hundreds of I/Os in a surface-mount BGA footprint. Its defined core voltage range and RoHS compliance simplify integration into controlled manufacturing and supply-chain environments.

Request a quote or submit an inquiry to receive pricing, availability, and support information for the XC7K70T-1FB484I.
