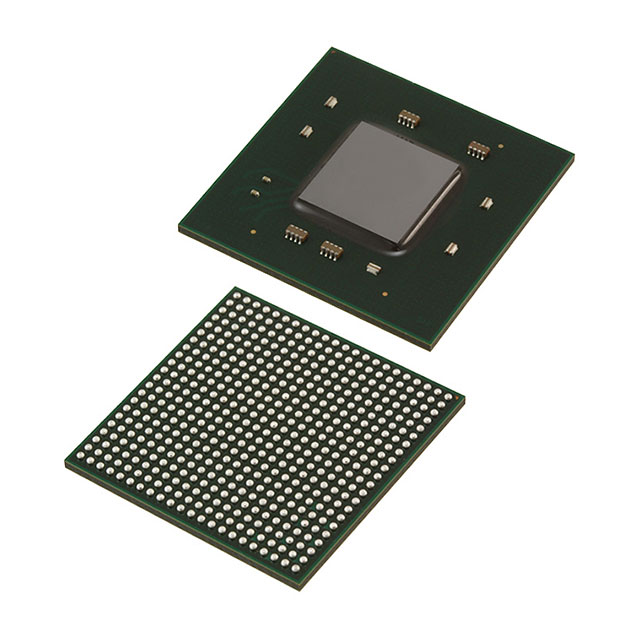

XC7K70T-1FBG484C
| Part Description |
Kintex®-7 Field Programmable Gate Array (FPGA) IC 285 4976640 65600 484-BBGA, FCBGA |
|---|---|
| Quantity | 646 Available (as of October 8, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | AMD |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 16 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 484-FCBGA (23x23) | Grade | Commercial | Operating Temperature | 0°C – 85°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 484-BBGA, FCBGA | Number of I/O | 285 | Voltage | 970 mV - 1.03 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 4 (72 Hours) | Number of LABs/CLBs | 5125 | Number of Logic Elements/Cells | 65600 | ||
| Number of Gates | N/A | ECCN | 3A991D | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 4976640 |
Overview of XC7K70T-1FBG484C – Kintex®-7 Field Programmable Gate Array (FPGA), 65,600 logic elements
The XC7K70T-1FBG484C is a Kintex®-7 Field Programmable Gate Array from AMD. It delivers programmable logic capacity, embedded memory, and a high I/O count in a surface-mount FCBGA package suitable for commercial electronic designs.
Key device attributes include 65,600 logic elements, approximately 4.98 Mbits of on-chip RAM, up to 285 I/O, a 484-FCBGA (23×23 mm) package, a core voltage range of 0.97–1.03 V, and an operating temperature range of 0 °C to 85 °C.
Key Features
- Core / Logic Capacity 65,600 logic elements to implement complex programmable logic and custom digital functions.
- Embedded Memory Approximately 4.98 Mbits of on-chip RAM for buffering, lookup tables, and state storage.
- I/O Up to 285 general-purpose I/O pins to support wide peripheral and interface connectivity.
- Power Core voltage supply range of 970 mV to 1.03 V to match low-voltage power domains.
- Package & Mounting 484-ball FCBGA / 484-BBGA family in a 23×23 mm supplier package; surface-mount mounting type for compact board integration.
- Temperature & Grade Commercial grade device rated for operation from 0 °C to 85 °C.
- Environmental Compliance RoHS compliant for reduced hazardous substances.
Unique Advantages
- High logic density: 65,600 logic elements support complex algorithms and parallel processing without additional external logic.
- Significant on-chip memory: Approximately 4.98 Mbits of embedded RAM reduces reliance on external memory and simplifies board design.
- Generous I/O count: 285 I/O pins provide flexibility for multiple interfaces, sensors, and peripherals.
- Compact FCBGA package: 484-ball, 23×23 mm package enables high-density designs in a surface-mount form factor.
- Low-voltage core support: Narrow core supply range (0.97–1.03 V) aligns with modern low-voltage power rails.
- Commercial temperature rating: Rated for 0 °C to 85 °C operation to meet standard commercial product requirements.
Why Choose XC7K70T-1FBG484C?
As an AMD Kintex‑7 FPGA, the XC7K70T-1FBG484C combines substantial programmable logic, embedded memory, and a high I/O count in a compact 484-FCBGA surface-mount package. These characteristics make it well suited for commercial designs that require on-chip resources and flexible board-level integration.
Choosing this device provides a balanced platform for designers needing significant logic and memory capacity along with a dense I/O footprint, while meeting RoHS environmental requirements and standard commercial temperature specifications.
Request a quote today to check pricing and availability for the XC7K70T-1FBG484C and to discuss how this Kintex‑7 FPGA can fit into your next design.
