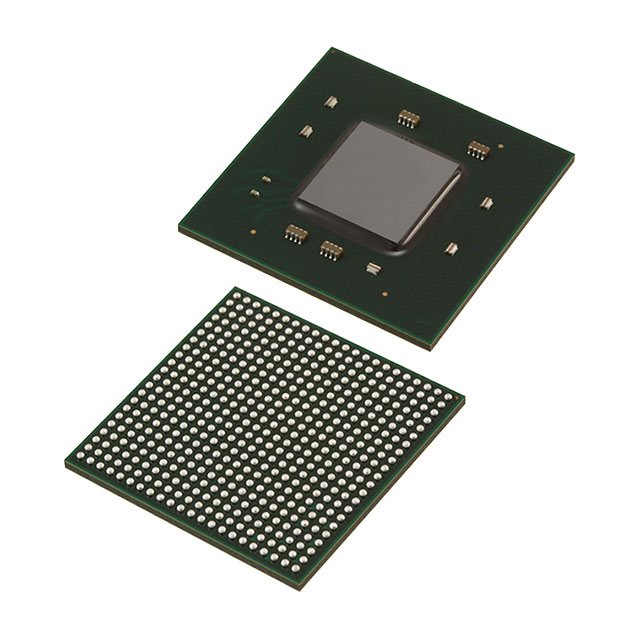

XC7K70T-2FB484I

The XC7K70T-2FB484I is a Kintex®-7 field programmable gate array (FPGA) device from AMD presented in a 484-ball FCBGA package. It provides a combination of programmable logic resources, embedded memory, and a substantial I/O count for designs that require on-chip logic density and system-level flexibility.

With 5,125 CLBs (65,600 logic cells) and approximately 4.98 Mbits of embedded RAM, this industrial-grade FPGA is intended for applications that demand reliable operation across a wide temperature range and a compact surface-mount package.

Key Features

• FPGA Core 5,125 CLBs delivering 65,600 logic elements for implementing custom digital logic and control functions.
• On‑Chip Memory Approximately 4.98 Mbits of total RAM bits available for buffers, state storage, and embedded data structures.
• I/O Capacity 285 user I/O pins to support multiple interfaces and board-level connectivity.
• Package & Mounting 484-BBGA (484-FCBGA, 23×23) surface-mount package suitable for compact board layouts.
• Power Core supply voltage range from 0.970 V to 1.03 V to match system power rails and design constraints.
• Temperature Range Industrial operating range from −40 °C to 100 °C for deployment in temperature-challenging environments.
• Compliance RoHS compliant.

Typical Applications

• Industrial Control — Use the industrial temperature rating and robust logic/memory resources for control, sequencing, and automation functions in factory and plant equipment.
• Embedded Systems — Implement custom data paths, peripheral logic, and state machines leveraging the device's 65,600 logic cells and on-chip RAM.
• Prototyping and Development — Rapidly iterate hardware designs that need flexible programmable logic and a high I/O count within a compact FCBGA footprint.

Unique Advantages

• High Logic Density: 65,600 logic cells provide room for complex algorithms and logic consolidation, reducing external component count.
• Significant On‑Chip Memory: Approximately 4.98 Mbits of embedded RAM supports buffering and local data storage, simplifying system memory architecture.
• Expanded I/O Capability: 285 I/O pins allow multiple peripheral connections and flexible board partitioning without immediate need for extra expanders.
• Industrial Temperature Support: Rated for −40 °C to 100 °C operation to meet the demands of industrial deployments.
• Compact Surface‑Mount Package: 484-FCBGA (23×23) enables high-density PCB layouts while maintaining a manageable form factor for system integration.
• Regulatory Compliance: RoHS compliance supports environmentally conscious designs and supply-chain requirements.

Why Choose XC7K70T-2FB484I?

The XC7K70T-2FB484I balances a substantial logic fabric, meaningful embedded memory capacity, and a high I/O count in a compact industrial-grade FCBGA package. These characteristics make it suitable for designs that need programmable logic resources combined with reliable operation across a broad temperature range.

Engineers and procurement teams looking for a Kintex®-7 family FPGA with clearly specified logic, memory, power, and environmental parameters will find this device appropriate for embedded, industrial control, and prototype applications where on-chip integration and temperature resilience are priorities.

Request a quote or submit an inquiry to receive pricing and availability for the XC7K70T-2FB484I and to discuss how it can fit into your next design.
