XC7S25-2CSGA225I

The XC7S25-2CSGA225I is a Spartan®-7 field programmable gate array (FPGA) in a 225-pin LFBGA/CSPBGA package designed for surface-mount assembly. It combines programmable logic capacity, embedded RAM, and a compact package footprint to address space-constrained designs that require configurable digital logic.

This device is offered in an industrial temperature grade with a defined core voltage range and RoHS compliance, providing a clear specification set for engineering and procurement decisions.

Key Features

• Logic Capacity  Approximately 23,360 logic elements, enabling implementation of complex, custom digital functions within the Spartan‑7 architecture.
• Embedded Memory  Approximately 1.66 Mbits of on-chip RAM for data buffering, state storage, and intermediate processing without external memory.
• I/O Resources  150 I/O pins to support a variety of external interfaces and peripheral connections.
• Power Supply  Specified core voltage range of 0.95 V to 1.05 V for predictable power provisioning and board-level design.

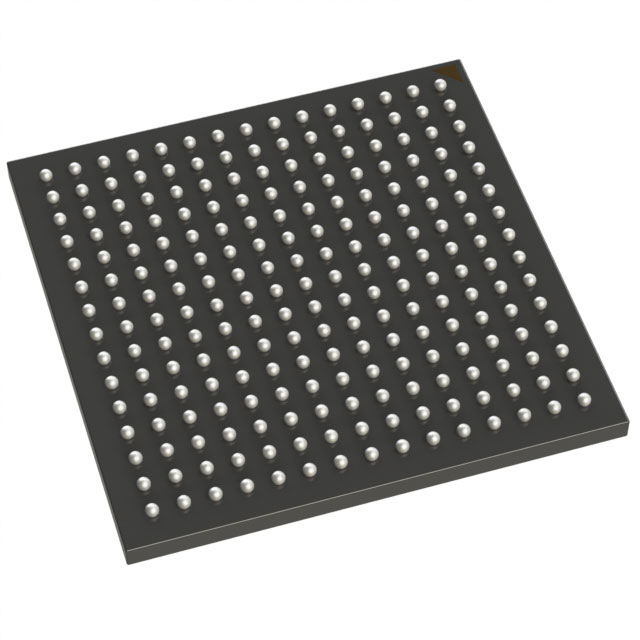

• Package & Mounting  225-LFBGA / CSPBGA package (supplier device package: 225-CSGA, 13×13) with surface-mount mounting type for compact PCB layouts.
• Operating Range  Industrial-grade operating temperature from −40 °C to 100 °C for deployment in a wide range of ambient conditions.
• Regulatory  RoHS compliant.

Typical Applications

• Custom programmable logic  Implement user-defined finite state machines, data paths, and protocol handlers using the Spartan‑7 logic resources.
• High-density I/O interfacing  Leverage 150 I/O pins for bridging and aggregating multiple sensors, peripherals or external logic domains on compact PCBs.
• On-chip buffering and processing  Use approximately 1.66 Mbits of embedded RAM for data buffering, packet staging, or temporary storage in embedded systems.

Unique Advantages

• Balanced logic and memory  Combines ~23,360 logic elements with ~1.66 Mbits of embedded RAM to support both control and data-centric designs without immediate reliance on external memories.
• Compact surface-mount package  225-LFBGA/CSPBGA footprint (225-CSGA, 13×13) enables high-density PCB implementations in constrained spaces.
• Industrial temperature rating  Specified −40 °C to 100 °C range supports deployment in harsher ambient environments where extended temperature performance is required.
• Predictable power envelope  Defined supply range of 0.95 V to 1.05 V simplifies power-supply design and verification for the FPGA core.
• Regulatory compliance  RoHS compliance aids conformity with environmental and manufacturing requirements.

Why Choose XC7S25-2CSGA225I?

The XC7S25-2CSGA225I delivers a practical combination of logic density, embedded memory, and I/O capability in a compact, surface-mount 225-LFBGA package. Its industrial temperature rating and defined supply range make it suitable for designs that require reliable, configurable digital logic across a broad set of operating conditions.

This Spartan‑7 FPGA is well suited for engineers who need on-chip memory and substantial logic resources in a small form factor—supporting applications where board space, power predictability, and environmental range are primary considerations.

Request a quote or submit an inquiry to get pricing, availability, and further ordering information for XC7S25-2CSGA225I.
