XC7VX690T-2FFG1158C

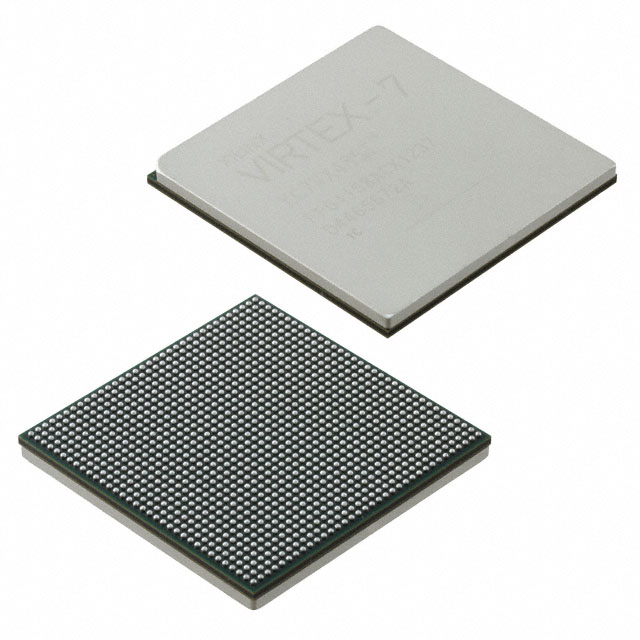

The XC7VX690T-2FFG1158C is a Virtex®-7 XT Field Programmable Gate Array (FPGA) from AMD, offered in a high-density FCBGA package. It provides a large amount of programmable logic, significant embedded RAM, and a high I/O count suitable for complex digital designs and dense board-level integration.

Key Features

• Core Logic 54,150 CLBs delivering 693,120 logic elements for implementing large, partitioned digital designs.
• Embedded Memory Approximately 54 Mbits of on-chip RAM (54,190,080 bits) to support data buffering, caches, and state storage within the FPGA fabric.
• I/O Density 350 I/O pins to support extensive board-level interfacing and peripheral connectivity.
• Power Supply Core voltage supply range from 970 mV to 1.03 V for the FPGA core domain.
• Package & Mounting 1156-BBGA, FCBGA package case with supplier device package listed as 1158-FCBGA (35×35); surface-mount mounting type for standard PCB assembly.
• Operating Range Commercial grade operation from 0 °C to 85 °C.
• Environmental Compliance RoHS compliant.

Typical Applications

• High-density digital processing 693,120 logic elements and 54 Mbits of embedded memory support complex logic implementations, custom datapaths, and large finite-state machines.
• Dense I/O and system integration 350 I/O pins and the FCBGA package enable integration with multiple high-pin-count peripherals and board-level interfaces.
• Custom accelerators and prototyping Large logic and embedded RAM capacity make the device suitable for implementing hardware accelerators and system prototypes that require sizable on-chip resources.

Unique Advantages

• Large programmable capacity: 54,150 CLBs and 693,120 logic elements provide room for complex implementations without immediate partitioning across multiple devices.
• Substantial on-chip memory: Approximately 54 Mbits of embedded RAM reduces dependence on external memory for many buffering and local-storage needs.
• High I/O count: 350 I/O pins allow extensive peripheral connectivity and flexible board-level interfacing.
• Compact surface-mount FCBGA: 1156-BBGA / 1158-FCBGA (35×35) package supports dense PCB layouts and automated assembly.
• Commercial operating range with RoHS compliance: Operates from 0 °C to 85 °C and meets RoHS requirements for environmental compliance.
• Defined core voltage window: 970 mV to 1.03 V core supply specification supports tight power-domain design and supply planning.

Why Choose XC7VX690T-2FFG1158C?

The XC7VX690T-2FFG1158C positions itself for designs that demand extensive programmable logic, substantial embedded memory, and a high I/O complement in a compact FCBGA package. Its combination of 693,120 logic elements, roughly 54 Mbits of on-chip RAM, and 350 I/Os makes it suitable for system architects and engineers implementing large digital subsystems, custom accelerators, or prototypes requiring significant on-chip resources.

As a commercial-grade Virtex®-7 XT FPGA from AMD, the device offers a defined operating and power envelope that supports predictable integration into board-level designs while meeting RoHS environmental requirements.

Request a quote or submit a procurement inquiry to receive pricing and availability information for the XC7VX690T-2FFG1158C.
