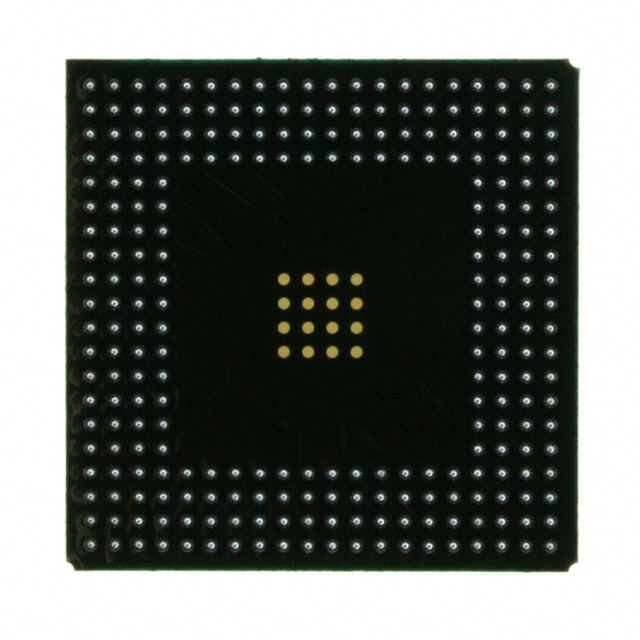

XCV50-4BG256I

IC FPGA 180 I/O 256BGA
Part Description

Virtex® Field Programmable Gate Array (FPGA) IC 180 32768 1728 256-BBGA

Quantity 251 Available (as of May 5, 2026)
Product CategoryField Programmable Gate Array (FPGA)
ManufacturerAMD
Manufacturing StatusObsolete
Manufacturer Standard Lead TimeRFQ
Datasheet

Specifications & Environmental

Device Package256-PBGA (27x27)GradeIndustrialOperating Temperature-40°C – 100°C
Package / Case256-BBGANumber of I/O180Voltage2.375 V - 2.625 V
Mounting MethodSurface MountRoHS ComplianceRoHS non-compliantREACH ComplianceREACH Unaffected
Moisture Sensitivity Level3 (168 Hours)Number of LABs/CLBs384Number of Logic Elements/Cells1728
Number of Gates57906ECCNEAR99HTS Code8542.39.0001
QualificationN/ATotal RAM Bits32768

Overview of XCV50-4BG256I – Virtex® Field Programmable Gate Array (FPGA) IC 180 32768 1728 256-BBGA

The XCV50-4BG256I is an SRAM-based Virtex FPGA offering a high-density, reprogrammable logic platform tailored for industrial applications. It provides 57,906 system gates and 1,728 logic elements in a 256-BBGA surface-mount package for compact system integration.

Designed for applications that require flexible on-chip memory, extensive I/O, and advanced clock management, this device delivers deterministic system-level capabilities with on-chip block RAM and configurable logic resources.

Key Features

  • Core Logic  1,728 logic elements (CLBs) delivering 57,906 system gates for implementing mid-density programmable logic functions.
  • Embedded Memory  32,768 bits of on-chip block RAM and support for SelectRAM+ topologies for flexible, hierarchical memory architectures.
  • I/O Capacity  180 user I/O pins to support a broad range of external interfaces and parallel/serial connectivity needs.
  • Clocking and Timing  Four dedicated delay-locked loops (DLLs), four primary low-skew global clock nets and 24 secondary local clock nets for advanced clock distribution and control.
  • Arithmetic and Routing  Dedicated carry logic and multiplier support together with abundant registers and cascade chains for implementing high-speed arithmetic and wide functions.
  • Configuration and Reprogrammability  SRAM-based architecture with multiple programming modes and in-system re-programmability for design iteration and field updates.
  • Package and Mounting  256-BBGA (256-PBGA, 27×27) surface-mount package suitable for compact PCB designs.
  • Power and Environmental Range  Supply voltage range 2.375 V to 2.625 V and an operating temperature range of −40°C to 100°C; RoHS compliant.
  • Performance  Series-level characteristics include system performance up to 200 MHz and 66-MHz PCI compliance as documented for the Virtex family.

Typical Applications

  • PCI and Compact PCI systems  Use the device’s 66‑MHz PCI compliance and hot‑swappable support for Compact PCI host/interface functions and mid-speed bus bridging.
  • Embedded logic and control  Implement control, glue-logic, and protocol handling where 1,728 logic elements and on-chip RAM provide flexible, reprogrammable functionality.
  • Memory interface and buffering  Leverage the hierarchical memory system and fast external RAM interfaces for buffering, packet handling, and intermediate data storage.
  • Clocked high-performance subsystems  Apply the DLLs and multi-level clock networks for deterministic timing in synchronous data paths and timing-critical logic.

Unique Advantages

  • Reprogrammable system flexibility: SRAM-based in-system configuration enables design updates and multiple programming modes for development and field serviceability.
  • Balanced performance and capacity: 57,906 system gates with 1,728 logic elements and 32,768 bits of block RAM provide a balanced mix of logic and embedded memory for mid-range designs.
  • Advanced clock management: Four DLLs plus dedicated global and local clock nets simplify clock distribution and reduce skew for synchronous designs.
  • Industrial temperature range: Qualified for −40°C to 100°C operation to meet temperature demands of industrial applications.
  • High I/O count in a compact package: 180 I/O pins in a 256-BBGA package enable dense connectivity while keeping board footprint minimal.
  • Vendor development support: Supported by the Virtex development ecosystem and Foundation/Alliance tools for design entry, synthesis, and implementation.

Why Choose XCV50-4BG256I?

The XCV50-4BG256I positions itself as a reliable, mid-density programmable logic device for industrial designs that require reprogrammability, moderate gate density, and a compact package. With a mix of logic resources, on-chip memory, comprehensive clocking, and a 180-pin I/O footprint, it is suitable for projects needing flexible hardware customization and iterative design cycles.

Its industrial temperature rating, RoHS compliance, and support within the Virtex family development tools deliver a practical platform for engineering teams focusing on control, interface, and data-path implementations that benefit from in-system configurability and proven FPGA architecture.

Request a quote or submit an RFQ to receive pricing and availability information for the XCV50-4BG256I.
