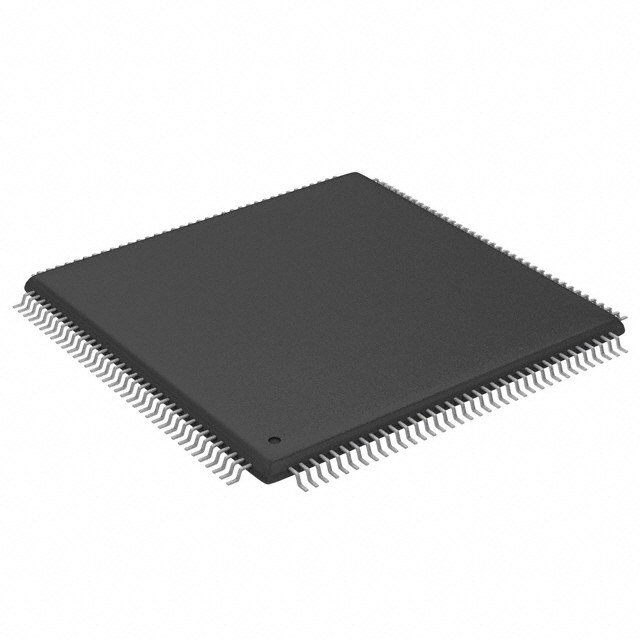

XCV50-4TQ144I
| Part Description |
Virtex® Field Programmable Gate Array (FPGA) IC 98 32768 1728 144-LQFP |
|---|---|
| Quantity | 580 Available (as of October 8, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | AMD |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | Contact Us |
| Datasheet |
Specifications & Environmental
| Device Package | 144-TQFP (20x20) | Grade | Industrial | Operating Temperature | -40°C – 100°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 144-LQFP | Number of I/O | 98 | Voltage | 2.375 V - 2.625 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | RoHS non-compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 384 | Number of Logic Elements/Cells | 1728 | ||
| Number of Gates | 57906 | ECCN | EAR99 | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 32768 |
Overview of XCV50-4TQ144I – Virtex® Field Programmable Gate Array (FPGA) IC, 98 I/O, 32,768-bit RAM, 1,728 logic elements, 144-LQFP
The XCV50-4TQ144I is an SRAM-based Virtex FPGA offering a balanced combination of logic capacity, embedded memory, and flexible I/O in a 144-LQFP surface-mount package. Designed for industrial applications, it provides reprogrammable logic resources and on-chip memory for custom digital systems and embedded designs.
Built on the Virtex family architecture, the device includes dedicated clock-management circuitry, multi-standard I/O support, and in-system configuration capabilities, making it suitable for applications that require configurable logic, moderate gate density, and robust temperature and power ranges.
Key Features
- Logic Capacity — 1,728 logic elements (corresponding to approximately 57,906 system gates) to implement custom combinational and sequential logic functions.
- Embedded Memory — 32,768 bits of on-chip RAM with a hierarchical memory system and LUTs that can be configured as RAM or shift registers for flexible data buffering and state storage.
- I/O Flexibility — 98 I/O pins supporting multi-standard SelectIO interfaces and a range of high-performance interface standards for external device connections.
- Clock Management — Four dedicated delay-locked loops (DLLs), four primary low-skew global clock distribution nets, and 24 secondary local clock nets for advanced clock control and low-skew distribution.
- Configuration & Re-programmability — SRAM-based in-system configuration with unlimited re-programmability and support for four programming modes (including SelectMAP, slave serial, master serial, and JTAG).
- Performance & Compatibility — Family-level capabilities include system performance up to 200 MHz and 66-MHz PCI compliance with hot-swappable CompactPCI support (as documented for the Virtex family).
- Process & Reliability — Manufactured on a 0.22 μm, 5-layer metal CMOS process and 100% factory tested for manufacturing reliability.
- Package, Power & Temperature — Surface-mount 144-LQFP (listed supplier package 144-TQFP, 20×20), voltage supply range 2.375 V to 2.625 V, and industrial operating temperature range of −40 °C to 100 °C.
- Environmental — RoHS compliant.
Typical Applications
- PCI and CompactPCI systems — Leverage 66-MHz PCI compliance and hot-swap capability for configurable interfaces and bridge logic in PCI-based embedded platforms.
- Embedded control and signal processing — Implement custom control algorithms, finite-state machines, and data-path logic using the device’s logic elements and on-chip RAM.
- Custom I/O and protocol bridging — Use multi-standard SelectIO interfaces and 98 I/O pins to adapt and bridge between different peripheral standards and memory interfaces.
Unique Advantages
- Reprogrammable hardware flexibility: SRAM-based architecture enables in-system reconfiguration and iterative development without hardware changes.
- Balanced logic and memory: 1,728 logic elements combined with 32,768 bits of embedded RAM supports medium-complexity designs with local data storage needs.
- Integrated clock resources: Four DLLs and extensive global/local clock nets simplify clocking strategies for synchronous designs.
- Industrial readiness: Rated for −40 °C to 100 °C operation and delivered in a surface-mount LQFP package suitable for industrial environments.
- Established family ecosystem: Supported by Virtex family development tools and methodologies to streamline design flow and verification.
- Manufacturing quality: 100% factory tested and produced on a mature 0.22 μm, 5-layer metal CMOS process for consistent device behavior.
Why Choose XCV50-4TQ144I?
The XCV50-4TQ144I positions itself as a practical choice for engineers needing a reprogrammable FPGA with moderate logic density, ample embedded RAM, and robust clock and I/O resources in an industrial-grade package. Its combination of 1,728 logic elements, 32,768 bits of on-chip memory, and dedicated clock-management features enables efficient implementation of custom digital functions and interface logic.
Backed by the Virtex family development ecosystem and factory testing, this device is suited for designers targeting configurable embedded systems, protocol bridging, and PCI-based solutions where re-programmability, predictable electrical ranges, and industrial temperature operation are required.
Request a quote or submit an inquiry for pricing and availability for the XCV50-4TQ144I to evaluate fit for your next design.
