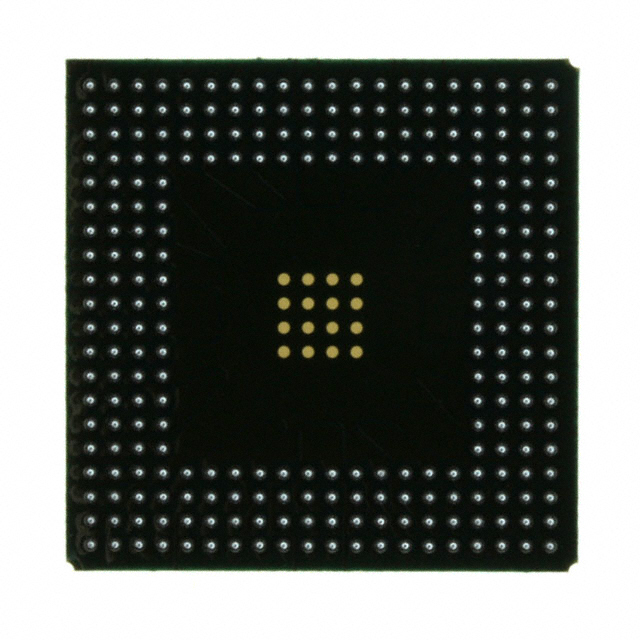

XCV50-5BG256C

The XCV50-5BG256C is a commercial-grade Virtex® FPGA offered by AMD. It combines a regular, high-performance programmable logic architecture with on-chip memory and flexible I/O to support system-level integration for embedded and communications designs.

Built on an SRAM-based architecture with dedicated clock-management and multi-standard I/O support, this device targets applications that need reprogrammable logic, on-chip block RAM, and robust interface options while operating within a commercial temperature range.

Key Features

• Logic Capacity  1,728 logic elements (reported logic cells) and approximately 57,906 system gates provide a compact, reprogrammable logic fabric.
• Embedded Memory  32,768 total RAM bits of on-chip Block RAM for buffering, FIFOs, and small data stores.
• I/O & Interfaces  Up to 180 I/O pins and multi-standard SelectIO™ support with 16 high-performance interface standards for flexible external connectivity.
• Clocking & Timing  Built-in clock-management with four dedicated delay-locked loops (DLLs) and multiple global/local clock distribution nets for advanced clock control.
• Configuration & Reprogrammability  SRAM-based in-system configuration with unlimited re-programmability and multiple programming modes.
• Package & Mounting  256-BBGA package (supplier device package: 256-PBGA, 27×27) optimized for surface-mount assembly.
• Power & Voltage  Specified supply range of 2.375 V to 2.625 V for core operation.
• Operating Range  Commercial grade operation from 0 °C to 85 °C.
• Development Support  Supported by established FPGA development systems and toolchains referenced in the product specification.

Typical Applications

• Communications Equipment  High I/O density and multi-standard SelectIO support enable board-level interface handling, protocol bridging, and custom packet processing.
• PCI-Based Systems  66-MHz PCI-compliant capability makes this device suitable for legacy PCI interface implementations and add-in card designs.
• Embedded Systems  On-chip block RAM and reprogrammable logic support control logic, custom peripherals, and firmware-upgradable functions in embedded controllers.
• Prototyping & Development  SRAM-based configuration and unlimited re-programmability are useful for iterative hardware development and design validation.

Unique Advantages

• Compact, integrated logic and memory: Combines 1,728 logic elements with 32,768 bits of embedded RAM to reduce external memory needs and simplify board design.
• Flexible connectivity: 180 I/O pins and multi-standard SelectIO interfaces accommodate diverse signaling standards without extensive glue logic.
• Advanced clock control: Four dedicated DLLs and hierarchical clock distribution enable precise timing management for synchronous designs.
• SRAM-based reprogrammability: Multiple configuration modes and unlimited re-programmability speed development cycles and field updates.
• Surface-mount 256-BBGA packaging: High-density package option supports compact board layouts while providing robust I/O count.
• Commercial operating range: Rated for 0 °C to 85 °C, matching typical commercial electronics environments.

Why Choose XCV50-5BG256C?

The XCV50-5BG256C delivers a balanced combination of reprogrammable logic, on-chip memory, and flexible I/O in a compact 256-BBGA package. It is well suited for designers who need a commercial-grade FPGA solution for communications, embedded control, PCI-based cards, and iterative hardware development.

Supported by established FPGA development toolchains and offering multiple configuration modes, this device provides design flexibility and the ability to evolve hardware functionality over time without redesigning boards or replacing silicon.

Request a quote or submit a sales inquiry to evaluate XCV50-5BG256C for your next design and receive pricing and availability information tailored to your project needs.
