MPC8260ACZUMIBB

The MPC8260ACZUMIBB is a PowerPC G2-based microprocessor in the MPC8260 series designed for embedded communications and industrial applications. It integrates a single 32-bit PowerPC G2 core running at 266 MHz with on-chip communications and memory controller support for compact, performance-focused system designs.

Targeted at networking and embedded systems, this industrial-qualified device offers multi-interface connectivity, flexible memory support, and a compact 480-TBGA (37.5×37.5 mm) surface-mount package to enable high-density board implementations with extended temperature operation.

Key Features

• Core PowerPC G2 single core, 32-bit architecture operating at 266 MHz for deterministic embedded processing.
• Communications Co-processors Integrated communications and RISC CPM co-processors to accelerate protocol handling and serial peripheral control.
• Memory Support On-chip support for DRAM and SDRAM controllers to simplify system memory interfacing and reduce external logic.
• Ethernet Connectivity Three 10/100 Mbps Ethernet interfaces for multi-port networking and communication designs.
• I/O and Peripheral Interfaces 3.3 V I/O signaling and common serial interfaces including I2C to integrate sensors, management controllers, and peripherals.

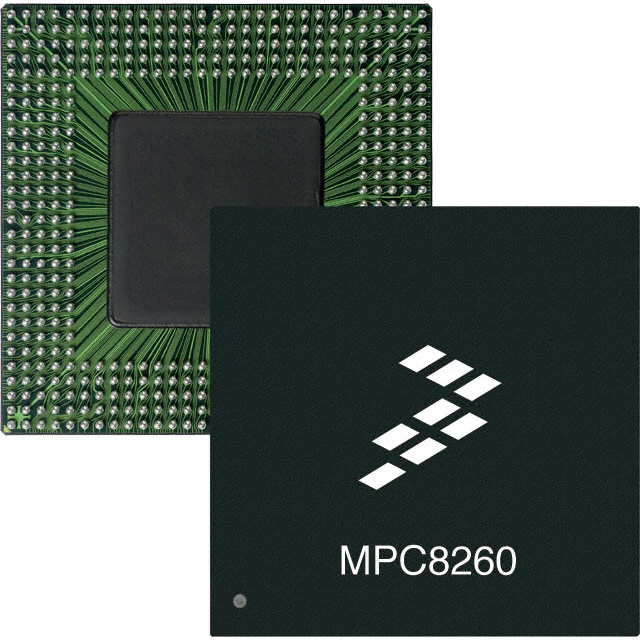

• Package and Mounting 480-TBGA (37.5×37.5 mm) exposed-pad package, surface-mount for high-density PCB layouts and thermal management.
• Industrial Qualification and Temperature Range Industrial-qualified device rated for operation from −40 °C to 105 °C for reliable deployment in harsh environments.
• Compliance RoHS compliant to meet contemporary environmental and manufacturing requirements.

Typical Applications

• Embedded Networking Equipment Multi-port 10/100 Mbps Ethernet capability and communications co-processors make this device suitable for routers, switches, and access points.
• Industrial Control Systems Industrial temperature rating and robust I/O support enable use in factory automation, PLCs, and industrial gateways.
• Communications Infrastructure Integrated CPM and serial interfaces support protocol offload and interface consolidation for telecom and network appliances.
• Embedded Platforms Compact 480-TBGA package and DRAM/SDRAM controller support dense embedded designs that require high integration and reliable operation.

Unique Advantages

• Integrated Communications Processing: On-chip communications and RISC CPM co-processors reduce external components and simplify protocol handling.
• Multi-port Ethernet: Three 10/100 Mbps Ethernet interfaces enable versatile networking topologies without additional PHY complexity.
• Industrial-Grade Operation: −40 °C to 105 °C operating range and industrial qualification support deployment in challenging environments.
• Compact, Thermally Optimized Package: 480-TBGA with exposed pad supports high-density layouts while aiding thermal dissipation on populated PCBs.
• Flexible Memory Interface: Built-in DRAM and SDRAM controllers streamline system memory integration and board-level design.
• Standards-Compliant I/O: 3.3 V I/O and common interfaces such as I2C enable broad interoperability with sensors and management devices.

Why Choose MPC8260ACZUMIBB?

The MPC8260ACZUMIBB combines a PowerPC G2 single 32-bit core at 266 MHz with integrated communications processing, multi-port Ethernet, and flexible memory support to deliver a compact, industrial-grade solution for embedded networking and control systems. Its 480-TBGA package and exposed pad enable high-density designs while addressing thermal needs.

This device is well-suited for designers seeking a reliable, RoHS-compliant processor platform that consolidates communications interfaces and memory controllers to reduce BOM and simplify system architecture for long-term, field-deployable products.

Request a quote or submit an inquiry to receive pricing, availability, and lead-time details for the MPC8260ACZUMIBB.
