10AX027E1F27E1HG

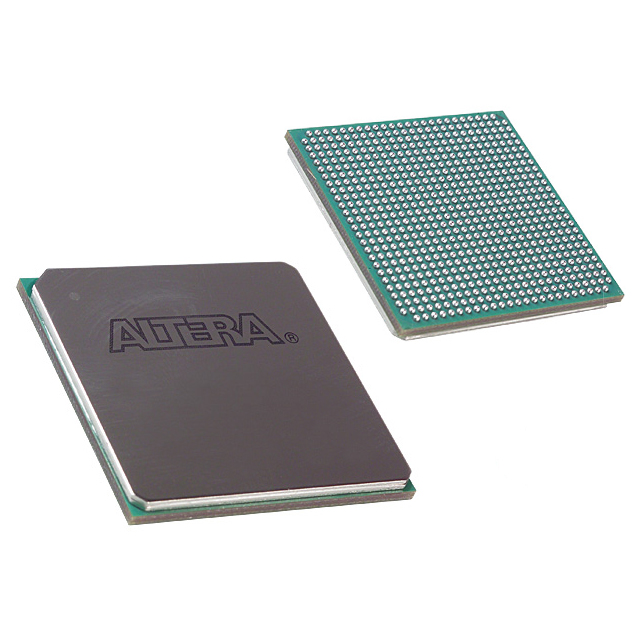

IC FPGA 240 I/O 672FBGA
Part Description

Arria 10 GX Field Programmable Gate Array (FPGA) IC 240 17870848 270000 672-BBGA, FCBGA

Quantity 1,426 Available (as of October 7, 2026)
Product CategoryField Programmable Gate Array (FPGA)
ManufacturerIntel
Manufacturing StatusActive
Manufacturer Standard Lead Time13 Weeks
Datasheet

Specifications & Environmental

Device Package672-FBGA (27x27)GradeExtendedOperating Temperature0°C – 100°C
Package / Case672-BBGA, FCBGANumber of I/O240Voltage870 mV - 980 mV
Mounting MethodSurface MountRoHS ComplianceRoHS CompliantREACH ComplianceREACH Unaffected
Moisture Sensitivity Level3 (168 Hours)Number of LABs/CLBs101620Number of Logic Elements/Cells270000
Number of GatesN/AECCN5A002A1HTS Code8542.39.0001
QualificationN/ATotal RAM Bits17870848

Overview of 10AX027E1F27E1HG – Arria 10 GX FPGA, 672-FBGA (27×27)

The 10AX027E1F27E1HG is an Intel Arria 10 GX field-programmable gate array (FPGA) offered in a 672-BBGA/672-FBGA (27×27) surface-mount package. It is part of the Arria 10 family of 20 nm mid-range FPGAs and SoCs designed for high-performance, power-efficient, midrange applications across diverse markets.

This device provides a balance of on-chip logic capacity, embedded memory, and I/O density for applications in wireless, wireline, broadcast, computing and storage, medical and other technical markets where performance and power efficiency matter.

Key Features

  • Core Logic  270,000 logic elements suitable for complex midrange logic designs.
  • Embedded Memory  17,870,848 total RAM bits for on-chip buffering, packet queuing, and data staging.
  • I/O and Package  240 user I/O pins with a 672-BBGA / 672-FBGA (27×27) FCBGA surface-mount package for dense system integration.
  • Power Supply  Core supply range of 870 mV to 980 mV, enabling low-voltage operation consistent with Arria 10 family power management features.
  • Operating Range and Grade  Extended-grade device with an operating temperature range of 0 °C to 100 °C and RoHS compliance.
  • Arria 10 Family Capabilities  Family-level features documented in the device overview include variable-precision DSP blocks, embedded memory blocks, clock networks and PLLs, and hard IP options such as PCIe Gen1/Gen2/Gen3 and high-speed serial interfaces (per Arria 10 series documentation).

Typical Applications

  • Wireless Infrastructure  Channel and switch cards in remote radio heads and mobile backhaul equipment that require midrange programmable logic and memory resources.
  • Wireline Networking  40G/100G muxponder and transponder line cards, and line-side processing where programmable logic and on-chip RAM support packet handling and protocol bridging.
  • Broadcast & Media  Studio switches and transport systems for professional audio/video processing and routing using embedded memory and flexible I/O.
  • Computing & Storage  Flash cache, server acceleration, and cloud computing server components that benefit from programmable acceleration and on-chip buffering.
  • Medical Imaging  Diagnostic scanners and imaging systems requiring configurable logic and substantial embedded RAM for data capture and preprocessing.

Unique Advantages

  • Substantial Logic Capacity: 270,000 logic elements provide the headroom for complex midrange designs and algorithm implementation on-chip.
  • Large On-Chip Memory: Nearly 18 million RAM bits enable extensive buffering, lookup tables, and data-path storage without immediate reliance on external memory.
  • Robust I/O and Compact Packaging: 240 I/O pins in a 672-FBGA (27×27) surface-mount package simplify system integration while maintaining high connectivity.
  • Power-Efficient Operation: Core supply range of 0.87–0.98 V and family-level power-saving technologies support power-sensitive designs.
  • Extended Temperature Grade: 0 °C to 100 °C operating range for deployments that require extended-grade FPGA performance.
  • Arria 10 Ecosystem: Part of the Arria 10 device family with documented features such as DSP blocks, embedded memory types, and hard IP options to accelerate system development.

Why Choose 10AX027E1F27E1HG?

The 10AX027E1F27E1HG positions itself as a midrange, performance-focused FPGA solution offering a combination of high logic density, substantial embedded RAM, and a dense I/O footprint in a compact 672-FBGA package. It is suited for engineers designing midrange telecommunications, networking, broadcast, compute-acceleration, and medical systems that require programmable flexibility along with efficient on-chip resources.

Choosing this Arria 10 GX device provides access to the Arria 10 family documentation and device-level capabilities, enabling scalable development and integration within systems that demand both performance and power-conscious operation.

Request a quote or submit a purchase inquiry for 10AX027E1F27E1HG to receive pricing and availability information.
