10AX027E1F27I1SG

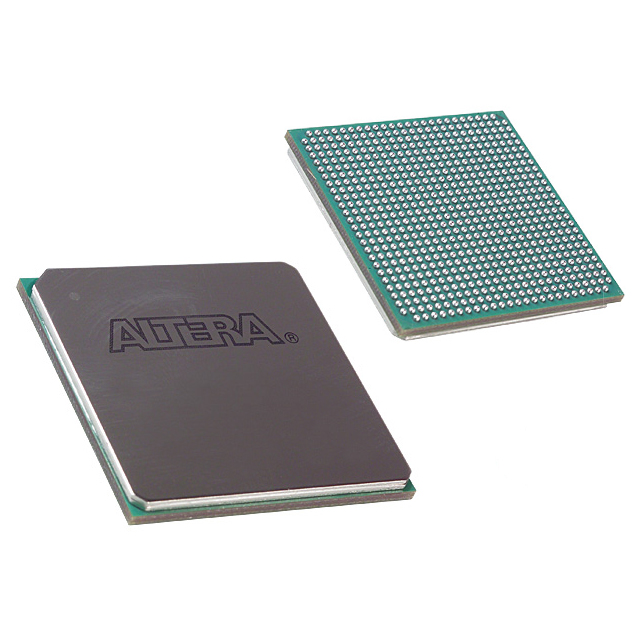

The 10AX027E1F27I1SG is an Intel Arria 10 GX Field Programmable Gate Array (FPGA) delivered as a surface-mount 672‑BBGA (27×27) package. It is a 20‑nm mid‑range FPGA device family member designed for applications that require a balance of performance and power efficiency.

Typical markets called out for Arria 10 devices include wireless and wireline infrastructure, broadcast, computing and storage, medical imaging, and military/secure communications. The device combines significant logic and embedded memory resources with on‑chip clocking, DSP, and transceiver capabilities appropriate for these markets.

Key Features

• Core Architecture (20 nm Arria 10 GX)  20‑nm mid‑range FPGA architecture focused on improved performance and power efficiency compared to prior generations.
• Logic Resources  Approximately 270,000 logic elements to implement complex digital logic and control functions.
• Embedded Memory  Total RAM capacity of 17,870,848 bits across on‑chip memory blocks for buffering, packet processing, and local data storage.
• I/O and Package  240 general‑purpose I/O pins in a compact 672‑BBGA FCBGA surface‑mount package (supplier package: 672‑FBGA 27×27).
• Voltage and Power  Core supply range of 870 mV to 980 mV to support low‑voltage, power‑sensitive designs.
• Operating Range and Grade  Industrial‑grade device with an operating temperature range of −40 °C to 100 °C; RoHS compliant.
• Clocking and Hard IP  On‑chip clock networks and PLL clock sources, plus hard IP blocks referenced in Arria 10 documentation (for example, PCIe hard IP and enhanced PCS hard IP).
• DSP and Transceivers  Variable‑precision DSP blocks and low‑power serial transceiver features described for the Arria 10 family to support signal processing and high‑speed links.

Typical Applications

• Wireless infrastructure  Channel and switch cards in remote radio heads and mobile backhaul solutions that require programmable logic and local memory.
• Wireline systems  Muxponders, transponders, and 100G line cards where programmable packet processing and interfacing are needed.
• Broadcast and professional video  Studio switches, videoconferencing, and transport applications that leverage on‑chip processing and I/O density.
• Computing and storage  Flash cache and server acceleration use cases that benefit from FPGA‑based acceleration and local memory resources.
• Medical and defense systems  Diagnostic imaging and military radar or secure communications requiring configurable processing and industrial temperature operation.

Unique Advantages

• High logic density: 270,000 logic elements enable implementation of large, complex designs in a single device.
• Substantial embedded RAM: 17,870,848 total RAM bits provide on‑chip storage for buffering, filtering, and temporary data retention.
• Industrial temperature capability: −40 °C to 100 °C rating supports deployment in harsh and temperature‑variable environments.
• Compact, surface‑mount BGA package: 672‑BBGA (27×27) package offers a high pin count in a compact footprint for board‑level integration.
• Low‑voltage operation for power‑sensitive designs: Core supply range of 870–980 mV helps reduce overall system power consumption.
• Series documentation and IP: Arria 10 device documentation (device overview, handbook, and errata) provides technical guidance and references for design and integration.

Why Choose 10AX027E1F27I1SG?

The 10AX027E1F27I1SG Arria 10 GX FPGA positions itself as a mid‑range, industrial‑grade programmable device that combines a high count of logic elements and significant embedded memory with on‑chip clocking, DSP, and transceiver capabilities. Its 672‑BBGA package and 240 I/O make it suitable for space‑constrained boards that still require substantial logic and I/O resources.

This device is well suited to engineers building wireless, wireline, broadcast, computing, medical, and defense systems who need a balance of performance, power efficiency, and industrial operating range. Backed by Arria 10 family documentation and errata references, it offers a documented platform for scalable FPGA designs.
