10AX032E1F27E1SG

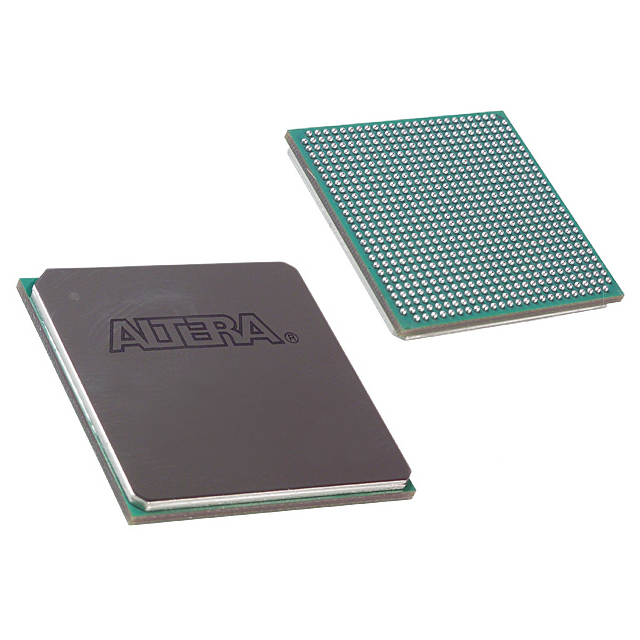

The 10AX032E1F27E1SG is an Intel Arria 10 GX field programmable gate array (FPGA) device in a 672-ball FCBGA package. It is part of the 20 nm Arria 10 device family targeted at mid-range, high-performance and power-sensitive applications.

With a large logic capacity, substantial embedded memory, and integrated I/O and hard IP capabilities, this device is suited for applications in wireless and wireline communications, broadcast, computing and storage, medical imaging, and other mid-range systems requiring a balance of performance and power efficiency.

Key Features

• Core capacity — 320,000 logic elements providing substantial programmable logic resources for complex mid-range designs.
• Embedded memory — 21,040,128 total RAM bits to support large on-chip buffering, cache and data-path implementations.
• I/O — 240 user I/O pins to support a wide range of external interfaces and memory connections.
• DSP and signal processing — Device family includes variable-precision DSP blocks for arithmetic and signal-processing workloads.
• High-speed serial and protocol support — Arria 10 GX family includes low-power serial transceivers and hard IP for PCIe Gen1/Gen2/Gen3 and protocol support referenced in the device overview.
• Clocking and PLL — Advanced clock networks with fractional synthesis and I/O PLLs as described for the Arria 10 family.
• Power and process — 20 nm device architecture with documented power-efficiency features; core voltage supply range specified at 870 mV to 980 mV.
• Package and mounting — 672-BBGA, FCBGA package listed as 672-FBGA (27×27) and designed for surface-mount assembly.
• Operating range and grade — Extended grade device with an operating temperature range of 0 °C to 100 °C.
• Compliance — RoHS compliant.

Typical Applications

• Wireless infrastructure — Channel and switch cards in remote radio heads and mobile backhaul where programmable logic and embedded DSP accelerate signal processing.
• Wireline communications — 40G/100G muxponders, transponders and 100G line cards that leverage the device's high-speed serial capabilities and integrated protocol hard IP.
• Broadcast and professional AV — Studio switches, videoconferencing and professional audio/video systems that require flexible I/O and on-chip memory for buffering and format handling.
• Computing and storage — Flash cache, cloud server acceleration and other compute-acceleration tasks that benefit from large logic density and embedded memory.

Unique Advantages

• Substantial programmable capacity: 320,000 logic elements enable complex, multi-function designs and high integration on a single device.
• Large on-chip RAM: Over 21 million RAM bits for high-throughput buffering, caches and local scratch memory without immediate reliance on external memory.
• Integrated I/O and protocol IP: 240 I/Os combined with Arria 10 family hard IP (PCIe Gen1/2/3 and serial transceivers) reduce external components and simplify system design.
• Designed for power-sensitive mid-range systems: 20 nm device architecture and documented power-efficiency features target performance with attention to power.
• Extended-grade operation: 0 °C to 100 °C operating range and surface-mount FCBGA packaging support deployment in a range of equipment-level environments.
• RoHS compliant: Meets common regulatory requirements for lead-free electronic assemblies.

Why Choose 10AX032E1F27E1SG?

The 10AX032E1F27E1SG positions itself as a mid-range, high-capacity FPGA offering from the Intel Arria 10 GX family, combining large logic and memory resources with integrated I/O and protocol hard IP. It is well suited for designers who need programmable throughput, embedded memory and interface flexibility without moving to higher-end device families.

This device is appropriate for system designers in communications, broadcast, computing and storage who require a balance of logic capacity, embedded memory and integrated serial/IP functionality, backed by Arria 10 family documentation and device resources.

Request a quote or submit a parts inquiry to receive pricing and availability for the 10AX032E1F27E1SG. Our team can provide lead-time details and support to help you evaluate this Arria 10 GX FPGA for your design.
