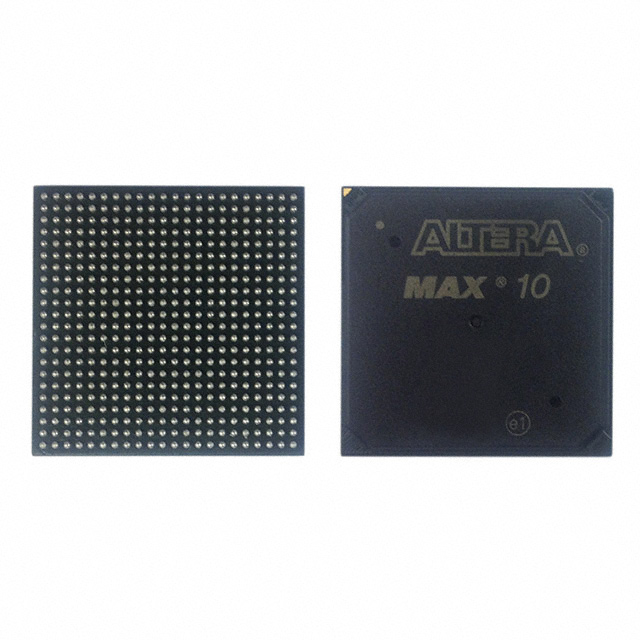

10M04DAU324I7G

The 10M04DAU324I7G is a MAX® 10 Field Programmable Gate Array (FPGA) provided in a 324-LFBGA package. It integrates programmable logic with on-chip RAM and a high I/O count to support industrial-grade embedded designs.

With 4,000 logic elements, 193,536 bits of total on-chip RAM, a wide operating temperature range of -40 °C to 100 °C, and a low-voltage supply range of 1.15 V to 1.25 V, this device targets applications that require moderate logic density, substantial memory, and robust temperature performance.

Key Features

• Core Logic  4,000 logic elements provide flexible programmable logic capacity for combinational and sequential designs.
• On-Chip Memory  193,536 total RAM bits available for buffering, lookup tables, and small data structures within the FPGA fabric.
• I/O and Connectivity  246 user I/O pins enable wide external interfacing and board-level signal routing options.
• Power  Operates from a low supply voltage range of 1.15 V to 1.25 V to match low-voltage system rails and reduce power-domain complexity.
• Package and Mounting  324-LFBGA surface-mount package (324-UBGA, 15×15) provides a compact, board-level footprint for dense PCB layouts.
• Temperature and Grade  Industrial grade device rated for an operating temperature range of -40 °C to 100 °C for deployment in temperature-challenging environments.
• Compliance  RoHS compliant for adherence to common environmental and manufacturing requirements.

Typical Applications

• Industrial Control Systems  Used in programmable logic roles where industrial temperature range and 246 I/O pins support sensors, actuators, and control interfaces.
• Embedded Logic and Prototyping  Provides on-chip RAM and 4,000 logic elements for embedded designs and prototype implementations that require reconfigurable logic.
• High-Density I/O Modules  Suited for board-level designs that need a compact package and a large number of I/O for multiplexing, signal routing, or I/O expansion.

Unique Advantages

• Balanced Logic and Memory: 4,000 logic elements paired with 193,536 RAM bits offer a balanced mix of programmable logic and on-chip storage for many embedded functions.
• High I/O Count: 246 I/O pins support extensive external interfacing without external I/O expander peripherals.
• Industrial Temperature Capability: Rated from -40 °C to 100 °C to maintain operation across harsh thermal environments.
• Low-Voltage Operation: 1.15 V to 1.25 V supply range enables integration into low-voltage system architectures.
• Compact Surface-Mount Package: 324-LFBGA (324-UBGA, 15×15) minimizes PCB area while providing robust soldered mounting for production assemblies.
• Regulatory Compliance: RoHS compliance supports environmentally conscious manufacturing and assembly processes.

Why Choose 10M04DAU324I7G?

The 10M04DAU324I7G positions itself as a compact, industrial-grade FPGA option that combines moderate logic density with substantial on-chip RAM and a high I/O count. Its low-voltage operation and wide temperature range make it suitable for embedded and board-level designs that require reliable programmable logic in challenging environments.

Choose this part when you need a RoHS-compliant, surface-mount FPGA solution with a balance of logic, memory, and I/O capacity—ideal for industrial control, embedded prototypes, and dense I/O modules where footprint and temperature resilience matter.

Request a quote or submit your requirements to receive pricing and availability for the 10M04DAU324I7G.
