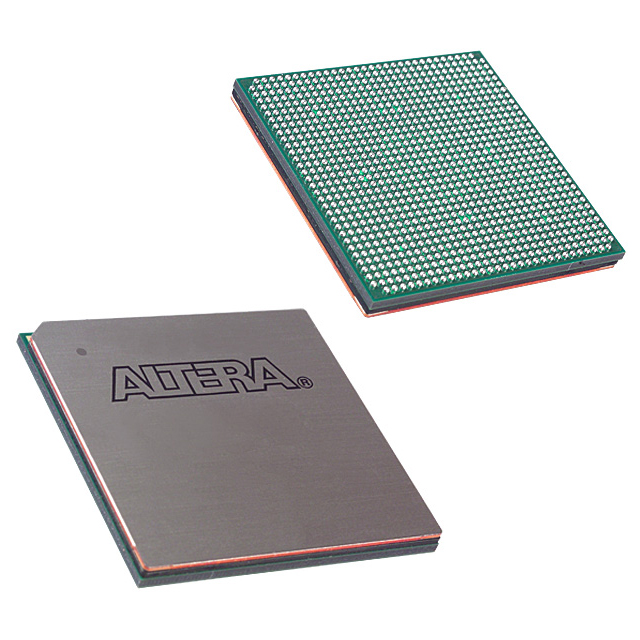

EP20K1000CF33C8
| Part Description |
APEX-20KC® Field Programmable Gate Array (FPGA) IC 708 327680 38400 1020-BBGA |
|---|---|
| Quantity | 175 Available (as of October 8, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Intel |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | Contact Us |
| Datasheet |
Specifications & Environmental
| Device Package | 1020-FBGA (33x33) | Grade | Commercial | Operating Temperature | 0°C – 85°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 1020-BBGA | Number of I/O | 708 | Voltage | 1.71 V - 1.89 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | Unknown | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 3840 | Number of Logic Elements/Cells | 38400 | ||
| Number of Gates | 1772000 | ECCN | 3A001A2A | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 327680 |
Overview of EP20K1000CF33C8 – APEX-20KC Field Programmable Gate Array (FPGA) IC 708 327680 38400 1020-BBGA
The EP20K1000CF33C8 is an APEX-20KC programmable logic device implemented with a MultiCore architecture that integrates lookup-table (LUT) logic and embedded memory. This commercial-grade FPGA delivers 38,400 logic elements, 327,680 on-chip RAM bits (approximately 0.328 Mbits), and up to 708 user I/O pins for dense, system-level integration.
Manufactured using a 0.15-µm all-layer copper-metal fabrication process, the device targets applications that require a combination of high logic density, embedded memory, and flexible I/O in a 1020-BBGA surface-mount package, while operating over a 0 °C to 85 °C temperature range and a supply range of 1.71 V to 1.89 V.
Key Features
- Core & architecture MultiCore architecture integrating LUT-based logic and embedded system blocks (ESBs) for memory functions; delivers up to 1,772,000 maximum system gates and 38,400 logic elements.
- Embedded memory 327,680 RAM bits available (approximately 0.328 Mbits) that can be used without reducing available logic; ESBs support FIFOs, dual-port RAM and CAM implementations.
- I/O density & standards Up to 708 user I/O pins supporting MultiVolt I/O for 1.8 V, 2.5 V and 3.3 V interfaces; programmable clamp to VCCIO, individual tri-state control, and output slew-rate control are supported.
- Clock management Support for up to four PLLs and up to eight global clock signals; features such as ClockLock, ClockBoost and ClockShift provide programmable clock phase, delay and multiplication/division functions.
- High-speed interfaces Device-level support for high-speed external memories (including DDR SDRAM and ZBT SRAM) and signaling options such as LVDS channels for high-speed differential links.
- Process & power Built on a 0.15-µm copper-metal process providing high performance with reduced power consumption; internal VCCINT nominally 1.8 V with documented VCC operating range of 1.71 V to 1.89 V.
- Package & mounting Surface-mount 1020-BBGA package (supplier device package: 1020-FBGA, 33 × 33 mm) suitable for compact board-level integration.
- Commercial operating range Rated for commercial temperature operation from 0 °C to 85 °C and RoHS compliant.
- Design tool support Supported by Altera development tools and MegaCore functions for synthesis, place-and-route, and optimized megafunctions for APEX 20KC architecture.
Typical Applications
- High-performance memory controllers Implement DDR SDRAM and ZBT SRAM interfaces using on-chip resources and ESBs for buffering and FIFOs.
- PCI/host interface logic Design PCI-compliant interface logic and bridge functions leveraging MultiVolt I/O support and high I/O count.
- Data-acquisition and high-speed I/O Use LVDS channels and abundant user I/O pins for multichannel high-speed data capture and aggregation.
- System integration and FPGA-based prototyping Consolidate glue logic, custom accelerators, and memory-mapped peripherals within a single device to simplify board-level design.
Unique Advantages
- High logic density: 38,400 logic elements and up to 1,772,000 maximum system gates enable complex digital designs in a single device.
- Significant embedded memory: 327,680 RAM bits provide on-chip storage for FIFOs, buffers, and dual-port RAM without reducing logic capacity.
- Extensive I/O flexibility: 708 user I/O pins with MultiVolt support allow direct interfacing to a wide range of system peripherals and memory devices.
- Advanced clock features: Up to four PLLs and multiple clock-shifting and boosting functions give designers flexible clocking and timing control.
- Copper-process performance: 0.15-µm copper-metal fabrication improves interconnect performance and power characteristics for demanding designs.
- Compact package: 1020-BBGA (33 × 33) surface-mount package supports high-density board layouts while maintaining a large I/O count.
Why Choose EP20K1000CF33C8?
The EP20K1000CF33C8 APEX-20KC FPGA combines high logic capacity, substantial on-chip RAM, and a large user I/O complement in a compact 1020-BBGA package, making it well suited for system-level designs that require embedded memory and flexible interfacing. Its MultiCore architecture and copper-metal process deliver a balanced platform for designs that need both logic density and reliable clock management.
Designed for commercial applications operating from 0 °C to 85 °C and compliant with RoHS, this device fits projects that demand integration of memory controllers, high-speed I/O, and complex glue logic, with toolchain support for implementation and optimization.
Request a quote or submit an inquiry to receive pricing, lead-time information, and technical support for EP20K1000CF33C8. Our team can help evaluate fit for your design and provide ordering details.
